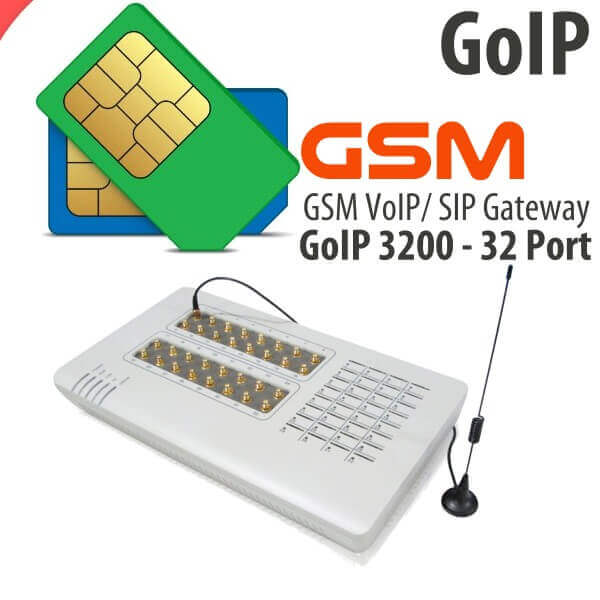

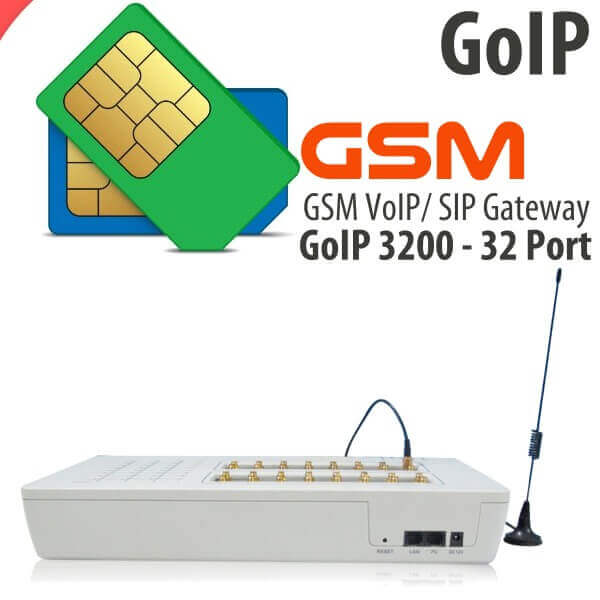

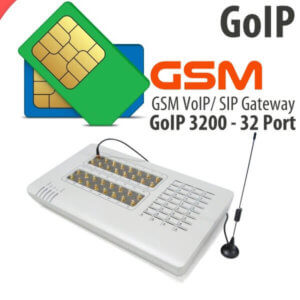

GoIP3200 32 Port GSM VoIP Gateway Kenya

The GOIP 3200 GSM VoIP gateway is a GSM over IP which is equipped with 32 GSM and VoIP channels. The GSM ports allow for call terminations from a VoIP network to a GSM network and vice versa. GoIP 3200 32 Port VoIP Gateway enables a user to organize the simultaneous operation of 32 GSM communication channels. Call connections between IP networks and GSM networks can therefore be bridged  so as to extend the voice communication coverage significantly. The GoIP gateway supports multi-device groups with a flexible setting of large GSM gateway groups.  A user can route all incoming GSM calls to a GoIP via call forward or can as well insert their SIM card to a GoIP. The GoIP 3200 32 Port GSM VoIP Gateway allows you to adjust its settings so as to forward all incoming calls to another GSM number anywhere in the world using a VoIP service provider. The charge per call from a VoIP service provider is significantly lower than the roaming charge. GoIP 3200 32  Port GSM  SIP gateway offers a perfect replacement of the traditional PSTN lines to your IP PBX for the office environment. You can add or remove lines as per your requirement, depending on your usage.

In many developed countries GSM phones are quickly replacing PSTN lines since they come with lower and affordable service charges. Using a VoIP network, one can easily make a call from anywhere around the world then terminate the call via a GoIP to the local telephone network (PSTN). On the other side, You can also make a call from the local telephone network to a GoIP GSM phone number and then dial another number via a VoIP network to anywhere in the world. In these cases, a VoIP Service provider is required for one side of the call termination. For two fixed locations, it is possible to setup GoIPs at both ends for call terminations without subscribing to a VoIP Service provider. This makes it possible to enjoy unlimited phone call experiences at a relatively cheap cost.

GoIP3200 32 Port GSM VoIP Gateway Features

Excellent Audio Quality :

The GoIP3200 32 Port GSM Gateway offers users distraction-free communication courtesy of the inbuilt industry-leading Acoustic Echo Cancelling Technology,  Adaptive Jitter Buffer, Voice Activity Detection, and Comfort Noise Generation that deliver superior High Definition sound quality devoid of extraneous noises. This makes it possible to enjoy fluent phone conversations without any distractions.

G168 Echo Cancellation :

 The magnificent GoIP3200 32 Port GSM Gateway uses G168 Echo Cancellation to filter out any background and surrounding noises that may act as distractions whenever the GoIP user is making any communications.

Automated – Provisioning – TFTP/HTTP/HTTPS :

The technologically advanced GoIP3200  32 Port GSM Gateway has the ability to deploy information technology or telecommunications service by using embedded pre-defined procedures that are carried out electronically without requiring any human intervention, thus making it very reliable and convenient.

QoS Abilities :

Quality of Service (QoS) is a feature of routers and switches which prioritizes traffic so that more important traffic can pass first, resulting in an overall performance improvement for critical network traffic. This feature is very essential in eliminating delays in the GoIP 32 Port GSM Gateway whenever there are high volumes of traffic.

Smart LED Alerts :

 The GoIP3200 32 Port GSM Gateway is equipped with smart LEDs which alerts the user about the gadget’s power status, and other important functions such as WAN, PC, and GSM connection status.

The Management Platform :

The GoIP3200 32 Port GSM Gateway delivers convenience, reliability and seamless integration through its Management Platform via an installed unified firmware. The platform is also used to troubleshoot and solve some of the common complexities that sometimes come up during provisioning, call management, and quality control. It also enhances user experience and adoption, making it easy to consolidate clients under one platform. This not only makes the device easy to deploy and maintain, but also gives you the ability to keep it at par with new and advanced firmware updates, thus a reduction in upgrade, maintenance and operational costs.

Flexibility :

The GoIP3200 32 Port GSM Gateway pushes versatility to a new high, thanks to its ability to complement already existing fixtures for enhanced web and audio conferencing, as well as other communication needs. This makes it easy to integrate seamlessly into any office setup without disorienting earlier structures and work ethic. Furthermore, the device is easy to redeploy as the business grows and needs to transform.

 SIP  Compliance :

 The Server-Initiated Application (SIP) is incorporated for users to plug and play the phone without the need for configurations. Once the phone is connected to the network and powered on, initialization starts automatically, after which the phone is up and ready for use. The GoIP 32 Port GSM Gateway can not only be configured via a user interface, as it also accepts SIP NOTIFY messages from SIP proxy servers, which gives it an ability to act as a web server. You can therefore easily connect your GoIP 32 Port GSM Gateway to your IP PBX System or direct to a VoIP service provider in order to enjoy seamless conference calls. The advanced GoIP 32 Port GSM Gateway is based on SIP v2 (RFC 3261) and works perfectly with most of the SIP platforms such as Asterisk,3CX,  and BroadSoft  that currently exist in the market.

Compatibility :

The GoIP3200 32 Port GSM Gateway has been configured to allow for maximum compatibility with various leading platforms such as 3CX, Asterisk, Trixbox, SIP Proxy Server, and VoipBuster. It is also SIP and H.323 based. Even better, the hi – tech device supports the use of multiple languages including English and Chinese, therefore giving users an easy operational experience.

GoIP3200 32 Port GSM VoIP Gateway Specifications

• Protocols
  • TCP/IP V4 (IP V6 automatic adaptive)
  • H.2250 V4
  • H.245 V7
  • H.235 (MD5, HMAC-SHA1)
  • TFTP
  • NAT
  • STUN
  • Dual VoIP protocols: ITU-T H.323 V4, IETF SIP V2.0
  • Network Management Protocol (NMP)
  • Multiple Codecs: ITU-T G.711 Alaw/ULaw, G.729A, G.729AB, G.723.1 and GSM
  • PPPoE Dial Up
  • PPP Authentication Protocol (PAP)
  • Internet Control Message Protocol (ICMP)
  • Hypertext Transfer Protocol (HTTP)
  • Dynamic Host Configuration Protocol (DHCP)
  • Domain Name System (DNS)
  • RFC1889 real-time digital transmission protocol
  • User Account Authentication (via MD5)
  • Proprietary Relay Protocol (Avoiding VoIP Blockings)

• Hardware Features
  • ARM processor
  • DSP for voice signal processing
  • Two 10/100MB Ethernet ports (IEEE 802.3 standard) with status LEDs
  • Quadband GSM module (850M 900M, 1800M and 1900M)
  • External Antenna (Internal Antenna option for selected models)

• Software Features
  • LINUX OS
  • Built-in Web Server for device configuration
  • Built-in SIP Proxy (Simplified)
  • PPPoE Dial Up
  • Router function
  • DHCP client & Server
  • QoS (VLAN)
  • VPN (PPTP)
  • Online firmware upgrade
  • Remote Control Mechanism for remote technical support
  • Proprietary Auto Provisioning Mechanism
  • Remote SIM function
  • Short Messages (SMS) support (standalone and server-based)
  • Call Management and Routing
