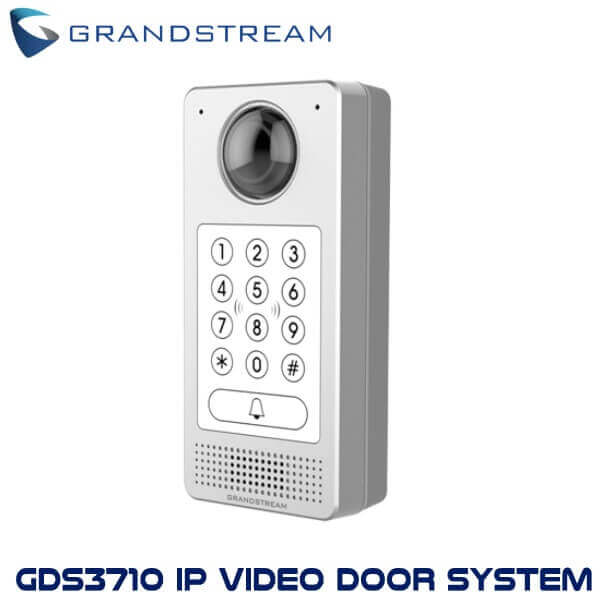

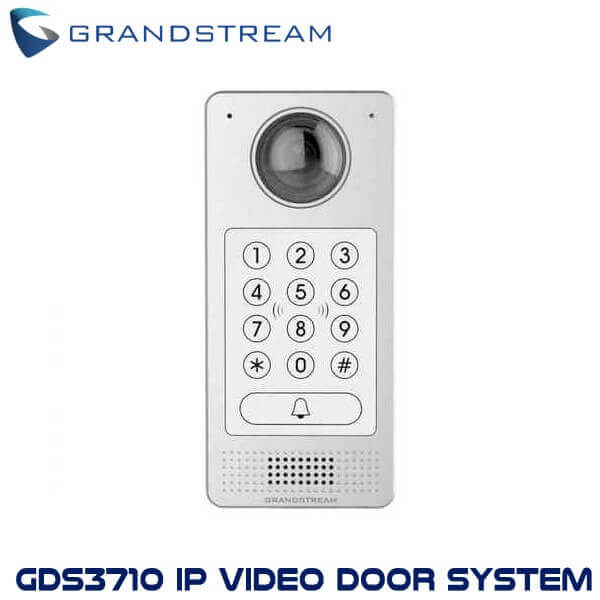

Grandstream GDS3710 IP Video Door System Kenya

Secure your premises using the high performance Grandstream GDS3710 IP Video Door System in Kenya which automatically monitors, manages, and accurately records any access made into the building. The powerful IP Video Door system also serves as an IP surveillance camera as well as an IP intercom. It is wide compatibility with other Grandstream solutions offers you an all-in-one solution for video intercom, access-control, and security monitoring.

The Grandstream GDS3710 integrates with Grandstream’s free management utility software, GDS Manager, allowing RFID card information, video feeds as well as the device itself to be fully managed by this software. Being Profile S ONVIF-compliant, the GDS3710 can be integrated with any third party ONVIF compliant surveillance or recording solution. Powered by an advanced Image Sensor Processor (ISP) and state-of-the-art image algorithms, the GDS3710 delivers 1080p FHD video resolutions and offers exceptional performance in all lighting conditions. It features SIP/VoIP technology with 2-way audio and video streaming feeds loaded directly to smart phones, SIP endpoints and the GDS management software. The GDS3710 is equipped with integrated PoE for seamless installation, bright LEDs for illumination, motion detector for security protection, lighting control switch and more. The combination of the GDS3710, Grandstream’s GXP21xx IP phones, GXV video phones and Grandstream Wave mobile app provide a complete solution for access control, video intercom, and security needs.

The GDS3710 integrates with Grandstream’s free management utility software, GDS Manager, allowing RFID card information, video feeds as well as the device itself to be fully managed by this software. Powered by an advanced Image Sensor Processor (ISP) and state-of-the art image algorithms, the GDS3710 delivers 1080p FHD video resolutions and offers exceptional performance with HTTP API for 3rd party redevelopment. It features SIP/VoIP technology with 2-way audio and video streaming feeds loaded directly to smart phones, SIP endpoints and the GDS management software.

Grandstream GDS3710 Key Features

Powerful video resolutions up to 1080p
Built-in RFID chip reader for keyless entry
SIP video streaming to video intercom stations, IP phones, or smart phones simultaneously
Built with a metal casing to make it weatherproof and vandal resistant
Built-in hemispheric camera allows for 180-degree wall-to-wall coverage
Supports motion detection
Integrated PoE to power the device and provide a network connection
Built-in microphone and speaker offers voice options and intercom functionality
Strong Weather-Proof Design
- The GDS3710 is rated IP66 for protection against the elements and rated IK09 for protection from vandalism. The IP Door System Kenya comes equipped with a zinc alloy metal casing, making it weatherproof and vandal resistant and offers alarm-in and alarm-out support for integration with existing security devices.
Secured Entry
- The Grandstream GDS3710 IP Video Door System Kenya is equipped with a built-in RFID chip reader and keypad which allows for a secured keyless or key entry.
Integrated PoE Connectivity
- The Grandstream GDS3710 IP Door System Kenya is equipped with auto-sensing 10/100Mbps ports which are integrated with Power over Ethernet for a quick power connection.
HD Audio
- The Grandstream GDS3710 IP Door System Kenya is equipped with a built-in 2W HD speaker which uses a number of voice codecs including G.711μ/a, and G.722 to deliver crystal clear sounds which are devoid of extraneous noises.
Interoperability
- The Grandstream GDS3710 IP Door System is based on SIP, and is therefore compatible with all IP phones to facilitate an enhanced communication experience.
Easy Deployment
- For large deployment, multiple GDS3710 units might be required, peered connection will not work in such a case due to multiple connections. Such scenarios require an IPPBX or a SIP Proxy to accomplish the tasks. When connecting the GDS3710 to a door strike it is recommended to set an EMF protection diode in reverse polarity for secure use, below examples of deployment for the protection diode. Make sure to connect the GND of the Wiegand device and the GDS3710 Wiegand port. For Wiegand input mode, LED and Beep pins require that the Wiegand device support those interfaces. These two pins will not affect the Wiegand bus when not connected.
Power-Saving Device
- If the power source is 12VDC, the Wiegand device can share the same power source of GDS3710. However, users need to check the max power consumption and the max capability of the power source. If Wiegand device is using 5VDC, GDS3710 Wiegand port can provide 5VDC with max 500mA to power up Wiegand device. When the Wiegand output of the GDS3710 is connected, it acts as the signal receiver of the 3rd party Wiegand device, connecting to door controller. The major wiring is GND, D0, and D1.

Grandstream GDS3710 – Technical Specifications

Video Compression

264 High Profile / Main Profile / Base Profile, Motion JPEG

Image Sensor Resolution

1/2.7”, 2 Megapixel, 1920H x 1080V

Lens Type

1/2”, F2.5, FOV: 180°(W) x 150°(H)

Day & Night

White LEDs with smart brightness control

Max Video Resolution

1920×1080

Max Frame Rate

30 frames per second

Minimum Illumination

5Lux

Wide Dynamic Range

Yes, up to 120db

Video Bit Rates

128 Kbps to 4 Mbps, multi-rate for preview & recording

Embedded Analytics

Motion detection (up to 4 privacy masks)

Snapshots

Triggered upon events, sent via email and/or FTP

Multi-Stream Resolution

High-performance streaming server allowing multiple simultaneous access
– Primary video stream: 1920 x 1080 resolution for continuous full HD recording
– Secondary video stream: 1280 x 720 resolution for SIP/VoIP video calls
– Third video stream: 320 x 240 resolution for smartphone applications

Network Protocol

TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS local upload and mass provisioning using TR-069 (pending), ARP/ RARP, ICMP, LLDP-MED, DNS, DHCP, SSH, SMTP, TFTP, NTP, STUN, TLS, SRTP

SIP/VoIP Support

Broad interoperability with most 3rd party SIP/VoIP devices and leading SIP/NGN/IMS platforms

Voice Codecs

711µ/a-law, G.722, DTMF (RFC2833, SIP INFO), AEC

QoS

Layer 2 QoS (802.1Q, 802.1P) and Layer 3 QoS (ToS, DiffServ, MPLS)

Security

User and administrator level access control (pending), MD5 and MD5-sess based authentication, 256-bit AES encrypted configuration file, TLS, SRTP, HTTPS, 802.1Q

Upgrade/ Provisioning

Firmware upgrade via TFTP/HTTP/HTTPS, mass provisioning using TR-069 (Pending) or AES encrypted XML configuration file

Audio Input

Built-in microphone, up to 1.5m with AEC

Audio Output

Built-in HD loudspeaker (2 watts), sound quality suitable for up to 3 m

Button

12-key touchpad plus a capacitive doorbell button, each with individual LED illumination

RFID

125KHz: EM4100 (1 RFID card and 1 RFID key fob included)

RFID Number Supported

Up to 2,000 recommended

Alarm Input

Yes, 2 channels, Vin < 15V, for door sensor or other devices

Alarm Output

Yes, 2 channels, 125VAC/0.5A, 30VDC/2A, Normal Open or Normal Close, for electric lock, light switch or other devices

Network Interface

10M/100M auto-sensing

Expansion Interface

RS485, Wiegand (26 bits) input and output

Dimensions (H x W x D)

173mm(H) x 80mm(W) x 36mm(D)

Weight

Power Supply

PoE IEEE 802.3af Class 3, or 12VDC/1A connection (AC power adapter not included)

Interoperability

ONVIF (Profile S)

Ingress Protection

Weather proof, vandal resistant, with support for extra back reinforcing metal plate

Temperature and Humidity

Operation: -30°C to 60°C (-22°F to 140°F)
Storage: -35°C to 60°C (-31°F to 140°F)
Humidity: 10% to 90% Non-condensing

Protection Class

IP66 (EN60529), IK09 (IEC62262)

Compliance

FCC: Part 15 subpart B Class B; Part 15 C; MPE
CE: EN 55032 Class B; EN 61000-3-2; EN 61000-3-3; EN 50130; EN 60950-1; EN 300330; EN 301489; EN 62311
RCM: AS/NZS CISPR 22; AS/NZS 4268; AS/NZS 60950.1
IC: ICES-003; RSS310
