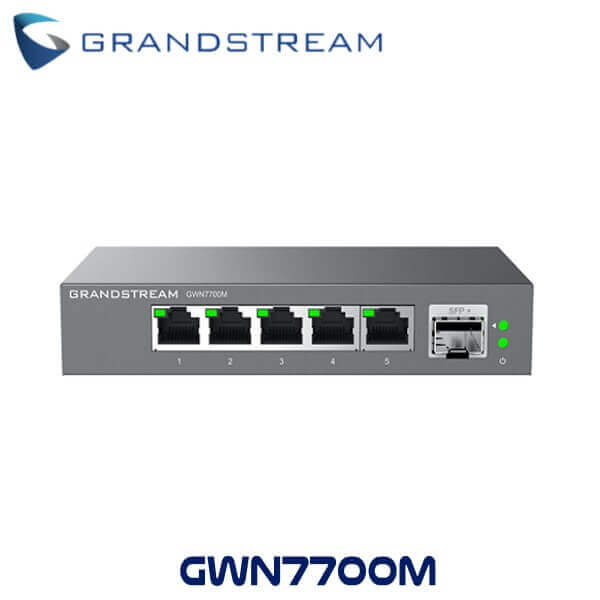

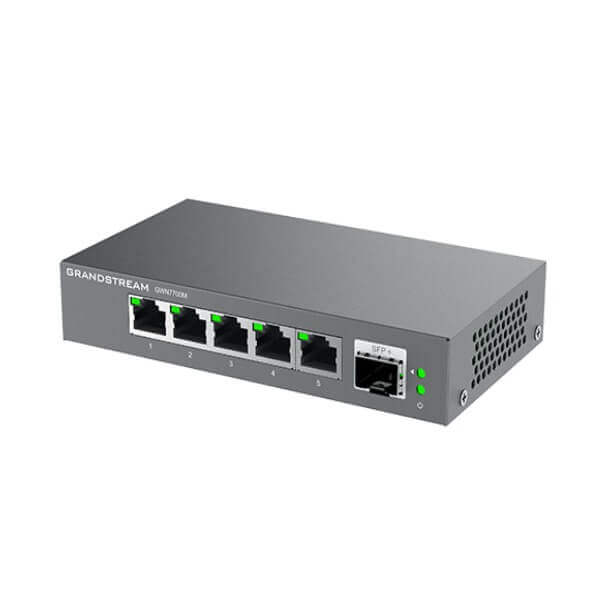

The Grandstream GWN7700M Kenya Network Switch is an unmanaged network switch that provides fast network connections of up to 2.5 Gbps for home offices and small and medium businesses. These switches are available in 6- and 9-port options and support Ethernet, 1 Gigabit and 2.5 Gigabit network speeds. It also includes Gigabit SFP fiber optic ports to provide a high-speed 1Gb or 10Gb uplink connection to your network. The GWN7700M and GWN77001M adapters require no configuration or installation and can be easily placed on a table or wall. The Grandstream GWN7700M Kenya also features Auto MDI/MDIX functionality, eliminating the need for crossover cables. Each port supports auto-negotiation to recognize the speed of a 100/1000/2500 Mbps network device and adjust it for optimal performance and compatibility. The GWN7700M and GWN7701M switches are plug-and-play, making them ideal for home offices and small and medium-sized businesses that require high-speed multi-gigabit connectivity.

Grandstream GWN7700M Features

Technical Specifications

GENERAL INFO :

• Model : GWN7700M
• Box Contents :
  • 1x GWN7700M Switch
  • 1x Power Adapter
  • 1x QIG
• Enclosure : Metal
• Mounting : Desktop/ Wall-Mount
• Power Adapter : External 12V/1A
• Max Power Consumption by Base System : 7.0W
• LED Indicators :
  • Per port : Link/Activity Green
  • Per device : Power Green
• Compliance : FCC, CE, RCM, IC, UKCA

PORTS :

• Gigabit Ports : 5
• Port Features :
  • 5× 100/1000/2500Mbps RJ45 Ports
  • 1× SFP+ Fiber Port
  • AUTO Negotiation
  • AUTO MDI/MDIX

NETWORK :

• Network Media :
  • 2.5GBase-T / 1000Base-T / 100Base-TX / 10 Base-Te, Half/Full-Duplex
• Mac Address Table : 4K
• Switching Capacity : 45Gbps
• Jumbo Frame : 9KB
• Advanced Features :
  • Mac Address Auto-Learning And Auto-Aging
  • IEEE 802.3x Flow Control
  • IEEE 802.3az (Energy Efficient Ethernet)
  • 802.1p/DSCP QoS
  • IGMP :
    • IGMP Fast-Leave
    • IGMP Snoop
    • Route Port Autolearn
    • Query Refresh Member Port
