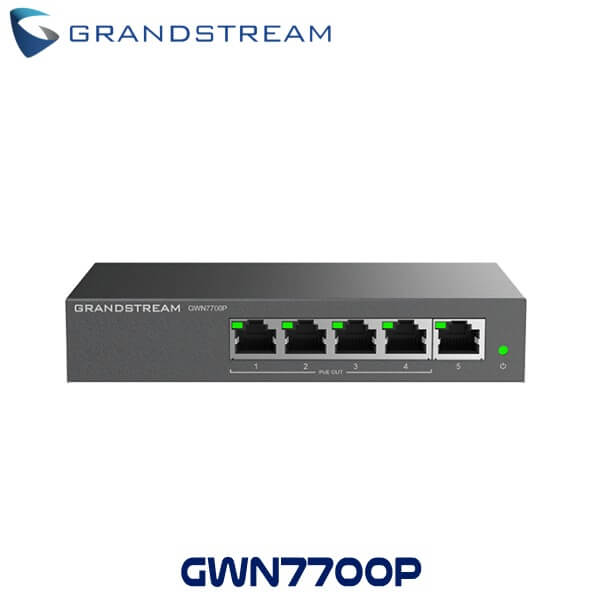

Grandstream GWN7700P Network Switch Kenya

The GWN7700 series are unmanaged network switches that provide a quick and cost-effective way to add high-speed Gigabit connectivity to home offices and small/medium businesses. Grandstream GWN7700P Kenya requires no configuration or installation, offers a desktop and wall-mountable design, and provides auto MDI/MDIX to eliminate the need for crossover cables. Each port supports auto-negotiation to allow the GWN7700 series to recognize the link speed of any 10/100/1000Mbps network device and intelligently adjust for compatibility and optimal performance. The PoE (Power-over-Ethernet) models provide ports with IEEE 802.3af/at compliant, smart dynamic PoE output to power IP phones, IP cameras, Wi-Fi access points and other PoE endpoints. The plug-and-play GWN7700 series are the ideal unmanaged network switches for home offices and small-to medium businesses.

Features

• Layer 2 Unmanaged PoE Switch
• 5 x GigE (4 x PoE)
• Metal Case
• 802.3 af/at compliant Up to 30W on each port
• Green technology reduces power consumption
• LED Indicators:
  • Per port: Link/Activity/Speed
  • Per device: Power
• Auto MDI/MDIX crossover for all ports
• Broadcast/Multicast/ Unicast Storm Control (fixed to 100Mbps) to monitor traffic levels
• QoS – Supports Default Strict Priority when present

Technical Specs

• Model : GWN7700P
• Box Contents :
  • 1x GWN7700P Switch
  • 1x Power Adapter
  • 1x QIG
• Gigabit Ports : 5
• PoE Ports : 4
• Enclosure : Metal
• Mounting : Desktop/ Wall-Mount
• Standards and Protocols :
  • IEEE 802.3i
  • IEEE 802.3u
  • IEEE 802.3ab
  • IEEE 802.3x
  • IEEE 802.1p
  • IEEE 802.3af
  • IEEE 802.3at
• Port Feature :
  • 5× 10/100/1000Mbps RJ45 Ports
  • AUTO Negotiation
  • AUTO MDI/MDIX
• Network Media :
  • 1000Base-T/100Base-TX/10Base-T, Half/Full-Duplex
• PoE Configuration :
  • 1~4 Ports 802.3 af/at compliant
  • Up to 30 W on Each Port, Total 60W Power Budget;
  • Overload to cut off the lowest-priority port.
  • Priority : Port 4 to Port 1
• LED Indicators :
  • Per port : Link/Activity Green
  • Per device : Power Green
• Mac Address Table : 2K
• Switching Capacity : 10Gbps
• Jumbo Frame : 9KB
• Advanced Features :
  • Mac Address Auto-Learning And Auto-Aging
  • IEEE 802.3x Flow Control
  • 1p/DSCP QoS
  • IGMP :
    • IGMP Fast-Leave
    • IGMP Snoop
    • Route Port Autolearn
    • Query Refresh Member Port
  • Power Adapter :
    • External 48V-53.5V/1.22A
  • Max Power Consumption by Base System :
    • 2W (excluding PoE output power)
  • Environmental :
    • Operating Temperature : 0 to 40 °C (32 to 104 °F)
    • Storage Temperature : -40 to 70 °C (-40 to 158 °F)
    • Operating Humidity : 10% to 90% Non-condensing
    • Storage Humidity : 5% to 90% Non-condensing
  • Compliance : FCC, CE, RCM, IC, UKCA
