Description

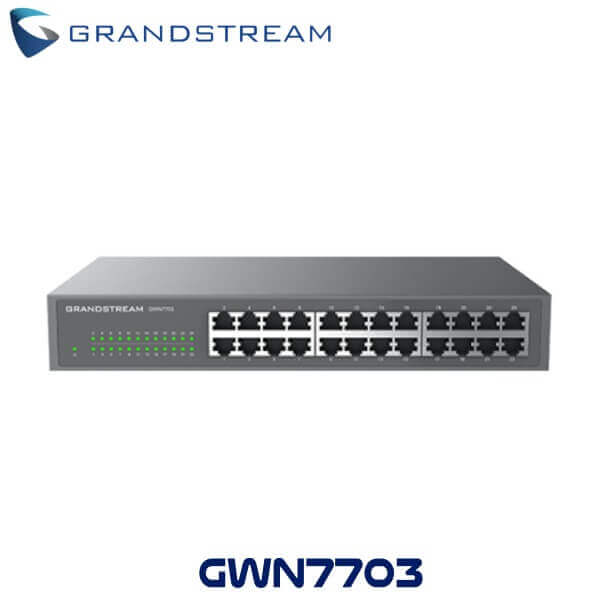

Grandstream GWN7703 Network Switch Kenya

The Grandstream GWN7703 Kenya is a network switches that offer a quick and affordable solution for adding high-speed Gigabit connectivity to your home office or small business. These switches require no configuration or installation and can be easily mounted on a desk or wall. They also include auto MDI/MDIX functionality, eliminating the need for crossover cables. Each port of the Grandstream GWN7703 Kenya supports auto-negotiation, allowing the switch to detect the connection speed of each 10/100/1000 Mbps network device and adjust accordingly for compatibility and optimal performance. Additionally, the PoE (Power-over-Ethernet) model is equipped with a port featuring intelligent dynamic PoE output that complies with IEEE 802.3af standards. This allows you to power IP phones, IP cameras, WiFi access points, and other PoE endpoints with ease. Lastly, the plug-and-play Grandstream GWN7703 Kenya is the perfect choice for home offices and small businesses in need of an unmanaged network switch.

Technical Specifications

• Gigabit Ports : 24
• PoE Ports :  N/A
• Enclosure :  Metal
• Mounting :  Desktop/Rack-Mount
• Standards and Protocols :  IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1p, IEEE 802.3af, IEEE 802.3at
• Port Features :
  • 16 * 10/100/1000Mbps RJ45 Ports
  • AUTO Negotiation
  • AUTO MDI/MDIX
• Network Media :  1000Base-T/100Base-TX/10Base-T, Half/Full-Duplex
• LED Indicators :
  • Per port :  Link/Activity Green
  • Per device :  Power Green
• Mac Address Table :  8K
• Switching Capacity : 48Gbps
• Jumbo Frame :  10KB
• Advanced Features :
  • Mac Address Auto-Learning And Auto-Aging
  • IEEE 802.3x Flow Control
  • Half duplex backpressure
• Power Adapter :  Internal 100-240V AC, 50/60Hz,18W
• Max Power Consumption by Base System :   13W@220V/50Hz
• Environmental :
  • Operating Temperature :  0 to 40 °C (32 to 104 °F)
  • Storage Temperature :  -20 to 60 °C (-4 to 140 °F)
  • Operating Humidity :  10% to 90% Non-condensing
  • Storage Humidity :  10% to 90% Non-condensing
• Dimensions (L x W x H) :
  • Unit :  280 x 180 x 44mm;
  • Package :  366 x 211 x 53mm
• Weight :
  • Unit : 1.35KG
  • Entire Package : 1.95KG
• Package :
  • 1x Switch
  • 1x 1.2m AC Cable
  • Rack-mounting Standard Brackets
  • 4x Rubber Feet
  • 1x QIG
• Compliance :   FCC, CE, RCM, IC, UKCA
