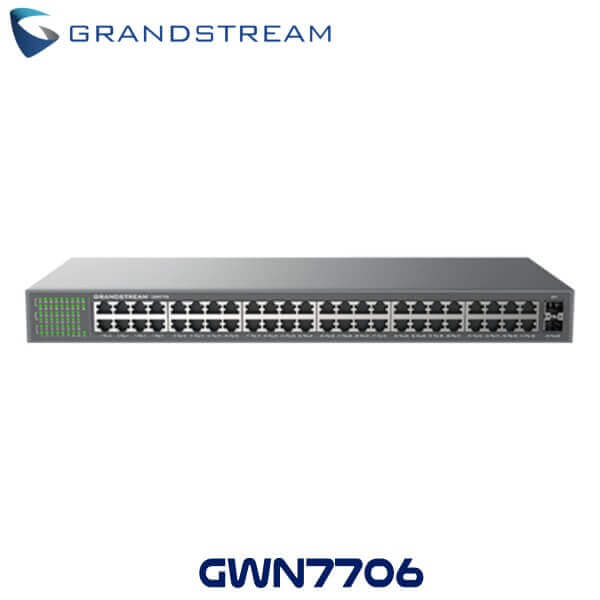

Grandstream GWN7706 Network Switch Kenya

The Grandstream GWN7706 Kenya is a network switch that offers a cost-effective solution for adding high-speed gigabit connectivity to your home office or small business. These switches are easy to set up and can be mounted on a desk or wall. They also have auto MDI/MDIX functionality, so you don’t need crossover cables. Each port of the Grandstream GWN7706 Kenya supports auto-negotiation, which means the switch can detect the link speed of your network devices and adjust accordingly for optimal performance. The PoE model of this switch is equipped with an IEEE 802.3af-compliant intelligent dynamic PoE output port, allowing you to power devices such as IP phones, IP cameras, WiFi access points, and other PoE endpoints. The plug-and-play design of the Grandstream GWN7706 Kenya makes it a perfect choice for home offices or small and medium-sized businesses in need of an unmanaged network switch.

Technical Specifications

• Gigabit Ports : 48
• Enclosure : Metal
• Mounting : Desktop/ Rack-Mount
• Standards and Protocols : IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1p
• Port Features :
  • 48× 10/100/1000 Mbps RJ-45 Ports
  • 2× SFP Fiber Ports
  • AUTO Negotiation, AUTO MDI/MDIX
• Network Media : 1000Base-X, 1000Base-T/100Base-TX/10Base-Te, Half/Full-Duplex
• LED Indicators :
  • Per port : Link/Activity Green
  • Per device : Power Green
• Mac Address Table : 16K
• Switching Capacity : 100Gbps
• Jumbo Frame : 9KB
• Advanced Features :
  • Mac Address Auto-Learning And Auto-Aging
  • IEEE 802.3x Flow Control
  • 802.1p/DSCP QoS
• Power Adapter : Internal 100-240V AC,50/60Hz,40W
• Max Power Consumption by Base System : 30W@220V/50Hz
• Environmental :
  • Operating Temperature : 0 to 40 °C (32 to 104 °F)
  • Storage Temperature : -20 to 60 °C (-4 to 140 °F)
  • Operating Humidity : 10% to 90% Non-condensing
  • Storage Humidity : 10% to 90% Non-condensing
• Dimensions (L x W x H) Unit : 440 x 200 x 44mm
• Package : 500*335*89mm
• Weight
  • Unit : 2.80Kg
  • Entire Package : 3.60Kg
• Package :
  • 1x Switch
  • 1x 1.2m AC Cable
  • Rack-mounting Standard Brackets
  • 4x Rubber Fee
  • 1x GND Cable
  • 1x QIG
• Compliance : FCC, CE, RCM, IC, UKCA
