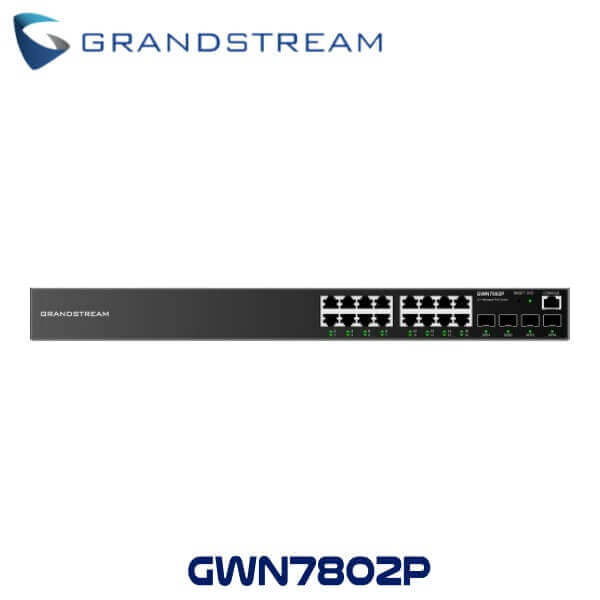

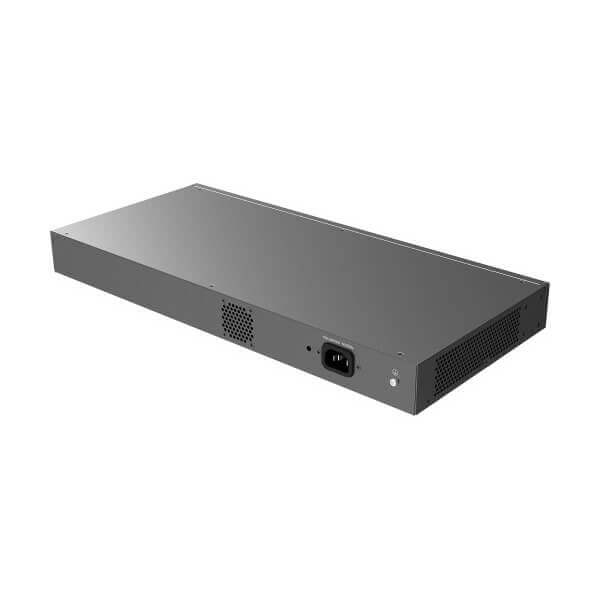

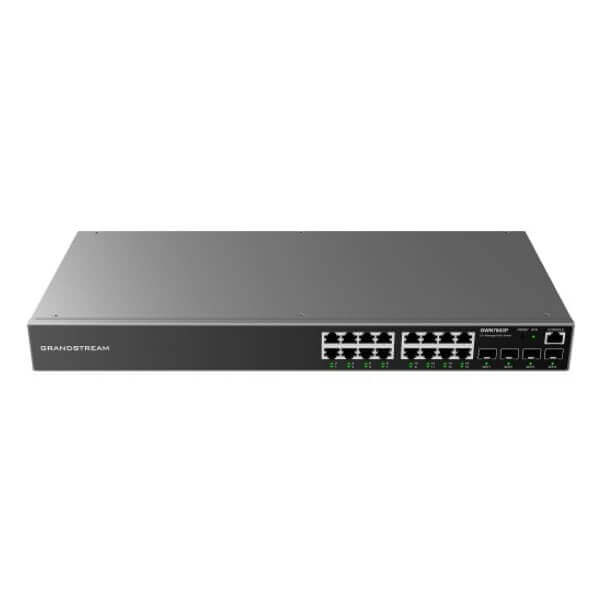

Grandstream GWN7802P Network Switch Kenya

The Grandstream GWN7802P Kenya is a network switch that allows small and medium-sized businesses to create fully manageable, intelligent, secure, and high-performance networks. It offers advanced VLANs for flexible traffic segmentation, advanced QoS to prioritize network traffic, IGMP snooping to enhance network performance, and comprehensive security features to protect against potential attacks. The PoE models also provide intelligent dynamic PoE output to power various PoE endpoints such as IP phones, IP cameras, and Wi-Fi access points. The Grandstream GWN7802P Kenya can be managed through a local web-based user interface for GWN7800 series switches. Additionally, it is compatible with Grandstream’s cloud and on-premises Wi-Fi management platforms, GWN.Cloud and GWN Manager. Overall, the Grandstream GWN7802P Kenya is an enterprise-class managed network switch that is well-suited for small and medium-sized businesses.

Key Features & Benefits of Grandstream GWN7802P :

• 16x Gigabit Ethernet Ports with PoE/PoE+ support (IEEE 802.3af/at), 4x Gigabit SFP Ports
• Smart power control to support dynamic PoE/PoE+ power allocation per port
• Max. PoE Power Budget 240W
• Max Output Power per PoE Port 30W
• Total non-blocking throughput 20Gbps
• Switching Capability 40Gbps
• Forwarding Rate 29.76M packets per second
• Packet Buffer 4.1MB
• Forwarding Mode: store-and-forward
• Integrated Power Supply 270W
• Multicast: IGMP Snooping, MLD Snooping, MVR
• DHCP server, DHCP relay, Option 82, 60,160 and 43
• 1x Console Port
• 1x tri-color LED for device tracking and status indication,
• 20x green LEDs for data ports
• 16x yellow-color LEDs for PoE ports
• Desktop, wall-mount, or rack-mount (rack-mount brackets included)
• Operating temperature 0°Cto 45°C, humidity 10-90% RH (Non-condensing)
• Storage temperature -10°C to 60°C, humidity: 5% to 95% (Non-condensing)
• 3 Year Warranty

Switching:

• 8K static, dynamic and filtering MAC addresses
• 4K VLANs, port-based VLAN, IEEE 802.1Q VLAN tagging, voice VLAN
• VLAN virtual interface
• GVRP (pending)
• 8 link aggregation groups
• Spanning tree, 64 instances for STP/RTSP/MSTP

QoS/ACL:

• Auto detection and prioritization of voice/video/RTP/SIP/other latency-sensitive packets (pending)
• Port priority
• Priority mapping
• Queue scheduling, including SP, WRR, WFQ, SP-WRR and SP-WFQ
• Traffic shaping
• Rate limit
• 1.5K ACL for Ethernet, IPv4 and IPv6

Maintenance:

• CPU and memory monitoring, SNMP, RMON, LLDP&LLDP-MED, backup and restore, syslog, alert, diagnostics including Ping, Traceroute, port mirroring, UDLD(TBD) and copper test

Security:

• User hierarchical management and password protection, HTTPS, SSH, Telnet
• 802.1X authentication
• AAA authentication including RADIUS, TACACS+
• Storm control
• Port isolation, port security, sticky MAC
• Filtering MAC address
• IP source guard, DoS attack prevention, ARP inspection
• DHCP Snooping
• Loop protection including BPDU protection, root protection and loopback protection
• Kensington Security Slot (Kensington Lock) support

Specifications
