Description

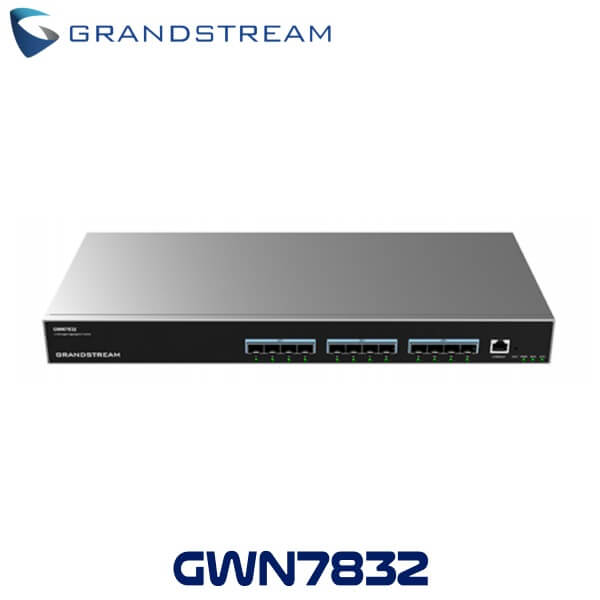

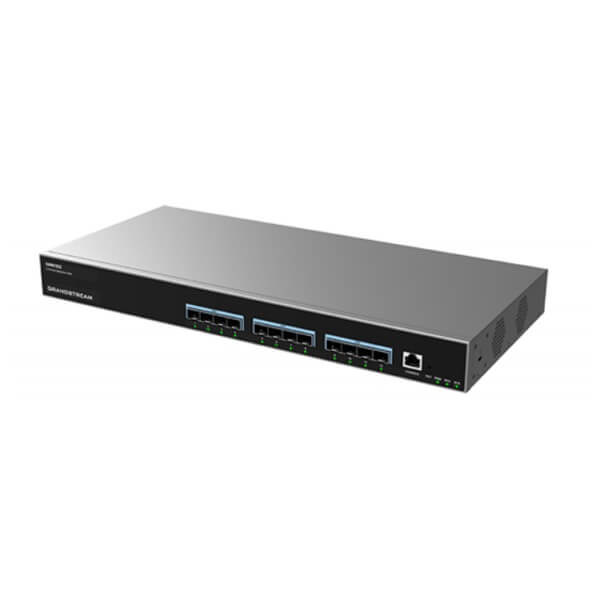

Grandstream GWN7832 Layer-3 Managed Network Switch Kenya

The Grandstream GWN7832 Kenya is a range of Layer 3 aggregation managed switches that enable enterprises to construct scalable, secure, high-performance, and intelligent business networks that are fully manageable and capable of supporting maximum capacity. It offers advanced VLAN for flexible and sophisticated traffic segmentation, advanced QoS for prioritizing network traffic, IGMP/MLD Snooping for optimizing network performance, and comprehensive security features to protect against potential attacks. The Grandstream GWN7832 Kenya can be managed through various methods, including the local Web user interface and CLI (command line interface) of the switch. Additionally, this series is backed by GWN.Cloud and GWN Manager, Grandstream’s cloud and on-premise network management platform. With end-to-end quality of service, adaptable security configurations, and the ability to handle extensive network capacity, the Grandstream GWN7832 Kenya presents itself as an excellent choice for medium-to-large deployments of enterprise-grade Layer 3 aggregation switches.

Grandstream GWN7832 Core Features

• 12 x SFP+
• Supports deployment in IPv6 and IPv4 networks.
• ARP Inspection, IP Source Guard, DoS protection, port security & DHCP snooping
• Embedded controller to manage switch; GWN. Cloud and GWN Manager, Grandstream’s cloud and on-premise network management platform
• Built-in QoS allows for prioritization of network traffic

Additional Information

Technical Specifications

GENERAL INFO :

• Model :  GWN7832
• Box Contents :
  • 1x GWN7832 Switch
  • 1x 1.2m(10A) AC Cable
  • 1x 25cm Ground Cable
  • 4x Rubber Footpads
  • 1x Power Cord Anti-Trip
  • 2x Rack-Mounting Kits
  • 8x Screws(KM 3*6)
  • 1x Quick Installation Guide

NETWORK PROTOCOL :

• IPv4, IPv6, IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3ae, IEEE 802.3az, IEEE 802.3ad, IEEE 802.3x, IEEE
  802.1p, IEEE 802.1Q, IEEE 802.3AB, IEEE 802.1p, IEEE 802.1D, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x
• Gigabit SFP+ Ports :  12
  • Note :  Support DAC Cable and must be ≤ 5m
• Maximum no. of Supported Modules :
  • SM-10G :  12
  • MM-10G :  12
  • RJ45-10G :  6
  • Note :  RJ45-1G, RJ45-10G modules must be interval inserted
• Console :  1
• Integrated Power Supply :  60W
• External Redundant Power Supply( RPS) :  12V/60W
• Auxiliary Ports :  1x Reset Pinhole
• Forwarding Mode :  Store-and-forward
• Total non-blocking throughput :  120Gbps
• Switching Capability :  240Gbps
• Forwarding Rate :  80.352Mpps
• Packet Buffer :  16Mb
• Network Latency : <4µs
