Grandstream GXV3450 Video IP Phone Kenya

The Grandstream GXV3450 Kenya is an advanced desktop video collaboration solution that combines a 16 line IP phone with the functionality of an Android tablet to offer an all-in-one communication solution. It is the ideal desktop device for busy professionals and executives and also offers a powerful yet cost-effective device for any conference room. This IP video phone delivers a powerful experience through its’ 5-inch 1280×720 capacitive touch screen, tiltable camera, dual microphones, and support for 720p HD video.

The Grandstream GXV3450 Kenya IP Video Phone for Android combines a 16-line IP video phone with a multi-platform video collaboration solution and the functionality of an Android tablet to offer an all-in-one communications solution. The GXV3450 adds dual Gigabit ports with PoE/PoE+, integrated Wi-Fi 5, and Bluetooth 5.0 support. It also runs Android 11 and offers instant access to hundreds of thousands of Android apps. By combining a state-of-the-art IP video phone, an advanced video collaboration solution, and the functionality of an Android tablet, Grandstream GXV3450 Kenya offers businesses throughout the world a powerful desktop communication and productivity solution.

Features

• 16 lines with up to 16 SIP accounts
• Built-in 2 mega-pixel CMOS camera for video calling with privacy shutter
• Runs on the Android 11 operating system
• Built-in Bluetooth 5.0 for syncing with mobile devices and connecting Bluetooth headsets
• Dual-switched auto-sensing 10/100/1000Mbps network ports
• Integrated dual-band Wi-Fi 5 (2.4GHz & 5GHz)
• Built-in PoE/PoE+ for power and network connections
• Dual-mic HD speakerphone with noise shield 2.0, advanced echo cancellation & excellent double-talk performance
• Quad-core 1.8GHz ARMCortex-A55 processor with 2GB RAM and 16GB eMMC Flash
• 5’’ (1280×720) capacitive 5-point touch screen IPS LCD
• Peripherals include USB3.0, USB 2.0, RJ9 headset with EHS
• 10-way audio conferencing & 3-way 720p 30fps HD video conferencing capability

Specifications

Protocols/Standards

SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DNS (A record, SRV, NAPTR), DHCP, PPPoE, SSH, TFTP, NTP, STUN, LLDP-MED, LDAP, TR-069, 802.1x, TLS, SRTP, IPv6, OpenVPN®

Network Interfaces

Dual switched 10/ 100/ 1000 Mbps ports with integrated PoE/PoE+

Graphic Display

0 inch 1280×720 capacitive touch screen (5 points) IPS LCD

Camera

Tiltable 2 mega-pixel CMO camera with privacy shutter, 1080P@30fps

Bluetooth

Yes, integrated Bluetooth 5.0

Wi-Fi

Yes, dual-band dual-stream Wi-Fi 5(2.4GHz & 5GHz) with 802.11 a/b/g/n/ac

Auxiliary Ports

RJ9 headset jack (allowing EHS with Plantronics headsets), USB 2.0 port, USB 3.0 port

Feature Keys

11 functions keys for CONFERENCE, TRANSFER, SEND/REDIAL, MUTE, EARPHONE, SPEAKERPHONE, VOLUME -/+. 3 dedicated Android keys for HOME, RECENT, and BACK

Voice Codecs and Capabilities

Wide-band Opus, wide-band G.722, G.711μ/a, G. 729A/B, G.726-32, iLBC, in-band and out-of band DTMF (In audio, RFC2833, SIP INFO), VAD, CNG, AEC, PLC, AJB, AGC, ANS, Noise Shield 2.0

Video Codecs and Capabilities

264 BP/MP/HP, video resolution up to 720p, frame rate up to 30 fps, bit rate up to 2Mbps, 3-way video conference (720p@30fps), anti-flickering, and auto exposure

Telephony Features

Hold, transfer, forward (unconditional/no-answer/busy), call park/pickup, 10-way audio conference (including the host), shared-call-appearance (SCA) / bridged-line-appearance (BLA), virtual Programmable Key, downloadable contacts (XML, LDAP, up to 1000 items), call record (local and server), call log (up to 1000 records), call waiting, auto answer, XML customization of screen, flexible dial plan, personalized music ringtones and music on hold, server redundancy & fail-over

Sample Applications

Local apps: Contacts, Call History, File Manager, Programmable Key, Settings, Browser, Clock, Voicemail, Calculator, Recorder, GS Market, etc.

Supports third-party Android apps

API/SDK available for advanced custom application development Android Runs Android 11.0

Applications Deployment

Support Android 11 compliant applications to be developed, downloaded and run on the device with provisioning control

HD Audio

Yes, 2 omnidirectional microphones, HD handset and speakerphone with support for wideband audio

Base Stand

Yes, desktop stand with three adjustable levels.

Extension Module

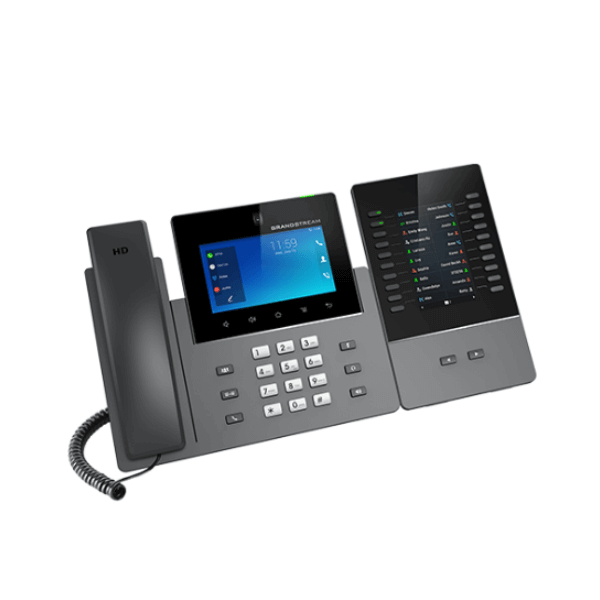

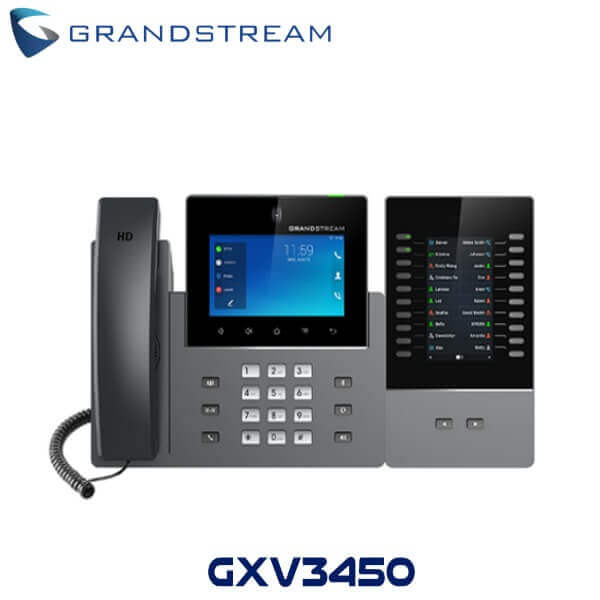

Yes, can power up to 4 GBX20 EXT modules which feature a 272×480 color LCD, 20 quick-dial/ BLF keys with dual-color LED, 2 navigation keys, and less than 1.2W power consumption per unit

QoS

Layer 2 QoS (802.1Q, 802.1p) and Layer 3 (ToS, DiffServ, MPLS) QoS

Security

User and administrator level passwords, random default admin password, MD5 and MD5-sess based authentication, 256bit-AES encrypted configuration file, TLS, SRTP, HTTPS, 802.1x media access control, anti-hacking secure boot

Multi-language

English, German, Italian, French, Spanish, Portuguese, Russian, Croatian, Chinese, Korean, Japanese, and more

Upgrade/Provisioning

Firmware upgrade via TFTP / HTTP / HTTPS or local HTTP upload, mass provisioning using TR-069 or AES encrypted XML configuration file, GDMS

Power & Green Energy Efficiency

Universal power adapter included: Input: 100-240VAC 50-60Hz; Output 12VDC 1.5A (18W) Integrated PoE* 802.3af Class 3, PoE+ 802.3at, Class 4 *Must use PSU or PoE+ to power up the phone when using USB devices and/or 2 or more GBX20 expansion modules.

Temperature and Humidity

Operation: 0°C to 40°C, Storage: -10°C to 60°C, Humidity: 10% to 90% Non-condensing

Package Content

GXV3450 phone, handset with cord, base stand, universal power supply, network cable, screen cleaning cloth, quick installation guide

Compliance

FCC: CFR 47 Part 15 Subpart B Class B; CFR 47 Part 15 Subpart C; CFR 47 Part 15 Subpart E; Part 68 (HAC) IC: RSS-247, RSS-GEN, RSS-102, ICES-003, CS-03 CE: EN 55032 Class B;EN 55035; EN IEC 61000-3-2; EN 61000-3-3; EN IEC 62368-1; ETSI EN 300328; ETSI EN 301893; ETSI EN 301489-1; ETSI EN 301489-17; EN IEC 62311 UKCA:BS EN 55032 Class B; BS EN 55035; BS EN IEC 61000-3-2; BS EN 61000-3-3; BS EN IEC 62368-1; ETSI EN 300328; ETSI EN 301893; ETSI EN 301489-1; ETSI EN 301489-17; BS EN IEC 62311 RCM: AS/ACIF S040 AS/CA S004; AS/NZS CISPR 32; AS/NZS 62368.1; AS/NZS 4268 RoHS2.0
