Grandstream HT812 Kenya

Description

Grandstream HT812 Kenya

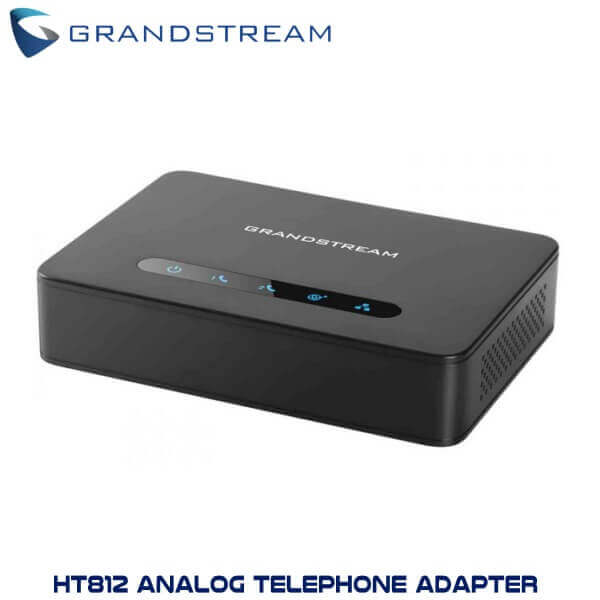

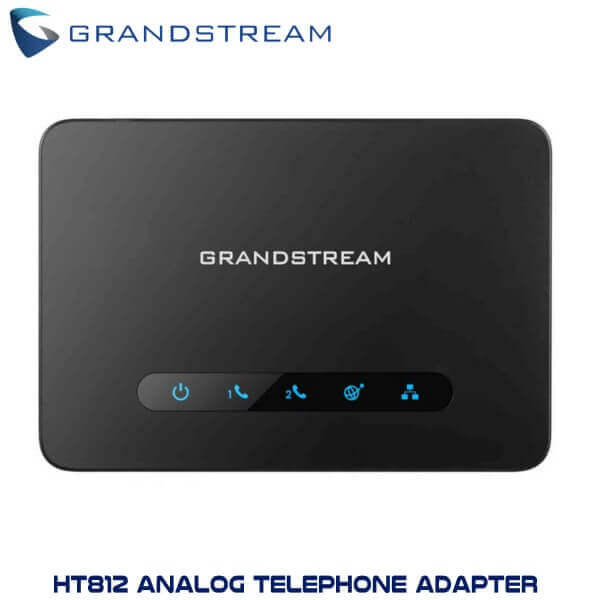

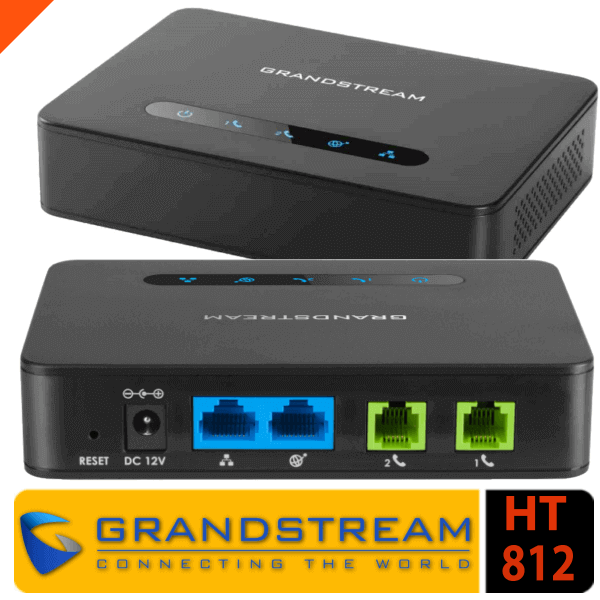

The Grandstream HT812 is a VoIP Gateway in Kenya that comes equipped with 2 FXS ports and an integrated Gigabit NAT router. It is an upgrade from the Grandstream HT502 and is packed with many advanced features that deliver a smooth VoIP solution to its users. Grandstream HT812 boasts of a compact, sleek and modern design, and has been primed to achieve the focal point of any room. With its rich advanced features such as 3-way conferencing per port, automated provisioning, advanced security protection, dual Gigabit network ports, and an integrated NAT router, the Grandstream HT812 VoIP Gateway Kenya provides its users with a high performance tool to connect 2 analog phones or fax machines to their VoIP network. It is designed for use by both business and residential users.

Grandstream HT812 VoIP Gateway Features

• Supports 2 SIP profiles and 2 FXS ports
• Strong AES encryption with security certificate per unit
• Automated & secure provisioning options using TR069
• 3-way voice conferencing per port
• Exceptional voice quality with wideband HD codec
• Supports T.38 Fax for reliable Fax over-IP
• Supports dual Gigabit network ports
• High-performance NAT router

• 2 FXS Ports
  • FXS stands for Foreign Exchange Subscriber or Foreign Exchange Station. This port in gateways is used to connect an analog endpoint like a fax machine or an analog phone. A device which has an FXS port is capable of allowing an analog device to connect to a VoIP network. The Grandstream HT812 VoIP Gateway Kenya is equipped with 2 FXS ports which allows for easy connection of your analog device to a VoIP network so that you can enjoy making and receiving fast calls over the internet.
• 3-Way Voice Conferencing per port
  • The Grandstream HT812 VoIP Gateway series Kenya is equipped with 2 FXS ports, each of which supports 3-way HD audio conferencing. This therefore enables you to seamlessly connect and collaborate with colleagues from different geographical locations. It is a cost-effective means of communication which maximizes efficiency as well as boosts productivity.
• Integrated NAT Router
  • Grandstream HT812 VoIP Gateway Kenya comes with an integrated NAT router with dual Gigabit Ethernet ports which allow you to share a broadband connection between multiple devices on your LAN without interfering with connection speed.
• Fax Support
  • The Grandstream HT812 VoIP Gateway Kenya is configured to support T.38 Fax which enables you to create Fax-over-IP. 38 is an ITU protocol that dictates how faxaudio traverses a packet-switched network, such as the Internet or a company’s LAN/WAN, reliably. In order for fax audio to traverse a packet-switched network like the Internet, the analog signal used by fax machines must be converted into digital packets.
• Cloud Management
  • Grandstream provides a reliable and secure cloud service to deliver connectivity to its users at cheaper maintenance costs while enhancing operation and maintenance efficiency. The cloud service on the internet enables customers to gain direct access to Grandstream devices available on private networks such as IP-PBXs, audio gateways, and IP phones, therefore allowing simple remote maintenance and management of Grandstream devices. This kind of cloud service is specifically designed to meet the needs of large-scale installation, configuration, and maintenance and operation. Auto provisioning and configuration backup, online update, real-time monitoring and alert enable users to achieve efficient operation and maintenance, thus maximizing productivity in organizations.
• Layer 2 & Layer 3 QoS Control
  • Quality of Service (QoS) is a strong feature which is integrated in routers and switches so as to control traffic flow thus delivering an overall smooth performance improvement for critical network traffic. It simply prioritizes more important traffic by letting it pass first. Whenever there are high volumes of traffic, the Grandstream HT812 VoIP Gateway in Kenya uses this feature to eliminate delays, thus maximizing productivity.
• Automated – Provisioning – TFTP/HTTP/HTTPS
  • The Grandstream HT812 VoIP Gateway Kenya has the ability to deploy information technology or telecommunications service by using embedded pre-defined procedures that are carried out electronically without requiring any human intervention, thus making it very reliable and convenient.
• HD Voice Quality
  • The Grandstream HT812 VoIP Gateway series in Kenya supports a number of voice compression codecs including 711 with Annex I (PLC) and Annex II (VAD/CNG), G.723.1, G.729A/B, G.726, iLBC,and OPUS. It also uses noise suppression technologies such as Echo Cancellation and Jitter Buffer to deliver crystal clear sounds while filtering out any background noises which may interfere with communication during voice calls.
• Maximum Security
  • Grandstream HT812 VoIP Gateway Kenya uses a number of leading security protocols including TLS and SRTP security encryption technology to safeguard your VoIP accounts and calls from access by unauthorized persons and devices. This prevents the loss of important data or corruption of files due to access by malicious hackers.

Call Features

• Call Transfer: This advanced feature of the Grandstream HT812 gateway allows the user to relocate an inbound call to another phone or messaging system by using a dedicated call transfer button, or software that has been configured for use on the Gateway.
• Call Waiting: You can hear another incoming call when you are already on an active phone call (beep). With the Grandstream HT812 VoIP Gateway you can also turn off call waiting so that incoming calls are directly sent to voicemail during moments you are active on another phone call.
• Call Holding: You can easily place an active phone call on hold in order to make or pick another incoming call using the premium Grandstream HT812 VoIP Gateway Kenya.

Grandstream HT812 – Technical Specifications

Interfaces

• Telephone Interfaces: Two (2) RJ11 FXS ports
• Network Interfaces: Two (2) 10/100/1000Mbps RJ45 ports
• LED Indicators: POWER, LAN, WAN, PHONE1, PHONE2
• Factory Reset Button: Yes

Voice, Fax, Modem

• Telephony Features: Caller ID display or block, call waiting, flash, blind or attended transfer, forward,hold, do not disturb, 3-way conference
• Voice Codecs: G.711 with Annex I (PLC) and Annex II (VAD/CNG), G.723.1, G.729A/B, G.726, iLBC,OPUS, dynamic jitter buffer, advanced line echo cancellation
• Fax Over IP: T.38 compliant Group 3 Fax Relay up to 14.4kpbs and auto-switch to G.711 for FaxPass-through
• Short/Long Haul Ring Load: 3 REN, up to 1km on 24AWG line
• Caller ID: Bellcore Type 1 & 2, ETSI, BT, NTT, and DTMF-based CID
• Disconnect Methods: Busy Tone, Polarity Reversal/Wink, Loop Current

Signaling

• Network Protocols: TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP/RARP, ICMP, DNS, DHCP, NTP,TFTP, SSH, STUN, SIP (RFC3261), SIP over TCP/TLS, SRTP, TR-069
• QoS: Layer 2 (802.1Q VLAN, SIP/RTP 802.1p) and Layer 3 (ToS, Diffserv, MPLS)
• DTMF Method: In-audio, RFC2833 and/or SIP INFO
• Provisioning and Control: HTTP, HTTPS, SSH, TFTP, TR-069 , secure and automated provisioning using AESencryption, syslog

Security

• Media: SRTP
• Control: TLS/SIPS/HTTPS
• Management: Syslog support, SSH, remote management using web browser

Physical

• Universal Power Supply:
  – Input: 100-240VAC, 50-60Hz
  – Output: 12V/0.5A
• Environmental:
  – Operational: 32º – 104ºF or 0º – 40ºC
  – Storage: 14º – 140ºF or -10º – 60ºC
  – Humidity: 10 – 90% Non-condensing
• Dimension: 28.5 x 130 x 90 mm (H x W x D)
• Weight: 353.33g

Compliance

• FCC/CE/RCM, K.21
