Specifications

Interfaces

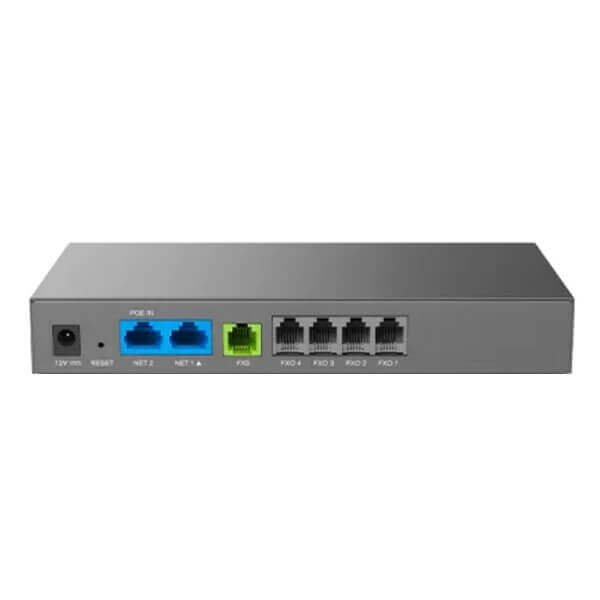

• Telephony Interface : 4 RJ11 FXO ports/1 RJ11 FXS
• Network Interface : Two 10/100/1000Mbps RJ45 ports, one with 802.3af PoE-PD support

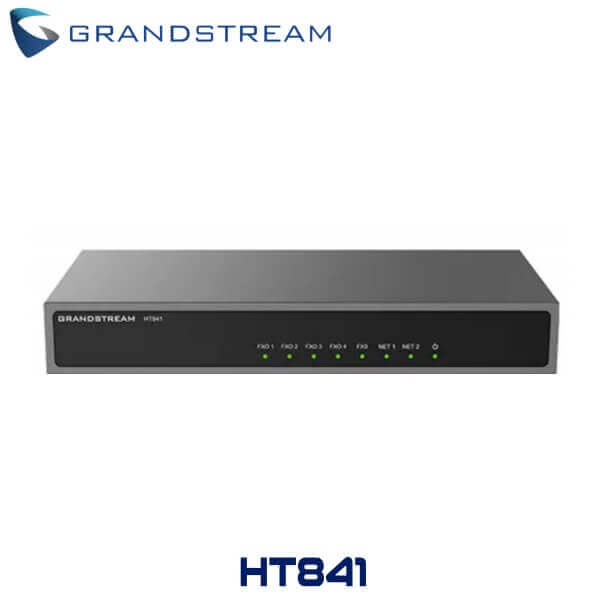

• LED Indicators : POWER, NET1, NET2, FXS, FXO
• Factory Reset : Button Yes

Voice, Fax, Modem

• Telephony Features : Caller ID display or block, call waiting, flash, blind or attended transfer,forward,hold, do not disturb, 3-way conference
• Voice Codecs : G.711 with Annex I (PLC) and Annex II (VAD/CNG), G.723.1, G.729, G.726, iLBC,OPUS, dynamic jitter buffer, advanced line echo cancellation
• Fax over IP : T.38 compliant Group 3 Fax Relay up to 14.4kpbs and auto-switch to G.711 for Fax Pass-through
• Short/Long Haul Ring Load : 3 REN : Up to 1km on 24 AWG
• Caller ID : Bellcore Type 1 & 2, ETSI, BT, NTT, and DTMF-based CID
• Disconnect Methods : Busy Tone, Polarity Reversal/Wink, Loop Current

Signaling

• Network Protocols : TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP/RARP, ICMP, DNS, DHCP, NTP,TFTP, TELNET, STUN, SIP (RFC3261), SIP over TCP/TLS, SRTP, TR-069
• QoS : Layer 2 (802.1Q VLAN, SIP/RTP 802.1p) and Layer 3 (ToS, Diffserv, MPLS)
• DTMF Method : In-audio, RFC2833 and/or SIP INFO
• Provisioning and Control : HTTP, HTTPS, TFTP, SSH, TR-069, secure and automated provisioning using AES encryption, syslog

Security

• Media : SRTP
• Control :  TLS/SIPS/HTTPS
• Management : Syslog support, Telnet, SSH, Remote management using web browser

Physical

• Universal Power Supply
  • POE Input : 4 8 V / 0 . 5 A
  • DC Input : 12V/1A
• Environmental
  • Operational : 32º – 104ºF
  • Storage : 14º – 140ºF
  • Humidity : 10 – 90% Non-condensing
• Dimension and Weight : 190mm x 100mm x 28mm (L x W x D)
  • Weight : 0.46KG
• Compliance : FCC/CE/RCM/IC/UKCA
