Description

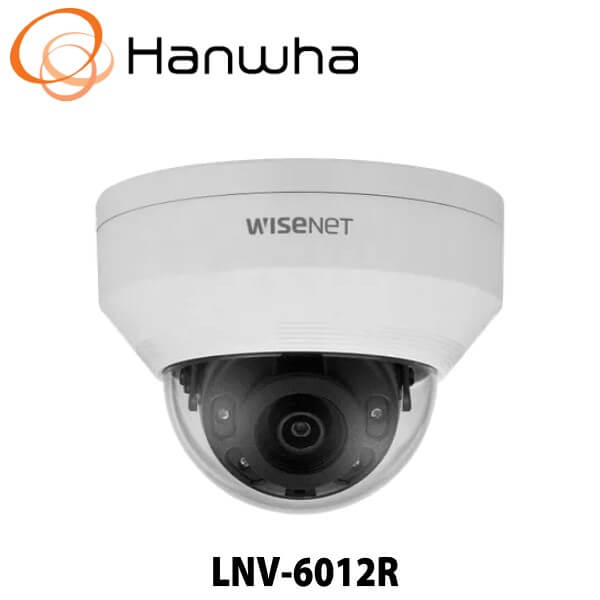

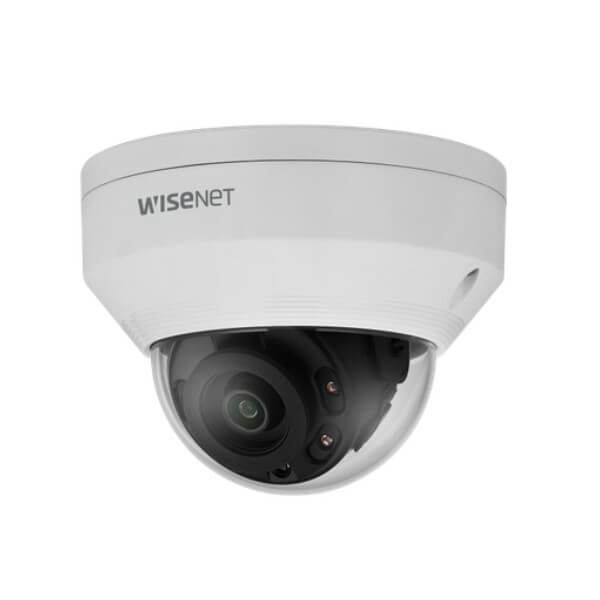

Hanwha LNV6012R
The Hanwha LNV6012R is a robust and high-performance vandal-resistant dome camera designed to provide reliable surveillance even in the most demanding environments. Built to withstand tough conditions, it offers outstanding image quality, ensuring clear and detailed footage at all times. With its durable construction and advanced security features, the Hanwha LNV6012R Kenya is an ideal choice for modern surveillance systems, delivering enhanced protection and peace of mind.
Wide-Angle Coverage with Fixed Lens : The camera is equipped with a fixed 2.8mm lens, offering an expansive horizontal viewing angle of approximately 113°. This wide-angle coverage makes the LNV6012R perfect for comprehensive surveillance of open spaces, entrances, hallways, and public areas, maximizing visibility and monitoring effectiveness.
Infrared Night Vision : Integrated IR LEDs allow the Hanwha LNV6012R to deliver clear and detailed images at night or in low-light conditions, providing effective infrared illumination up to 20 meters. This capability ensures constant and uninterrupted surveillance, vital for monitoring critical areas 24/7.
Advanced WDR Technology : The LNV6012R incorporates Wide Dynamic Range (WDR) at 120dB, efficiently managing scenes with contrasting lighting conditions. By balancing bright and dark areas within a frame, WDR ensures visibility and clarity in environments with intense backlighting, shadows, or reflections.
Edge Storage Capability: The Hanwha LNV6012R features an onboard micro SD/SDHC/SDXC card slot, allowing direct edge recording. This ensures continuous recording even in situations of network downtime or interruptions, safeguarding critical surveillance data.
Intelligent Video Analytics The Hanwha LNV6012R camera integrates advanced analytics to proactively enhance security measures, including:
- Motion Detection: Alerts security teams to movement in predefined zones.
- Intrusion Detection: Rapidly identifies unauthorized access.
- Tampering Detection: Notifies users of physical interference with the camera.
These intelligent features significantly enhance incident detection and management, reducing false alarms and improving security responses.
With its rugged design, exceptional imaging, and intelligent security features, the Hanwha LNV6012R is an excellent choice for businesses, institutions, and public spaces seeking reliable, high-performance surveillance. Whether for day or night monitoring, this camera provides superior protection and peace of mind.
Features:
- Maximum 2MP resolution
- Color: 0.03Lux(F2.0, 1/30sec) BW : 0Lux (IR LED on)
- 2.8mm fixed focal
- Maximum 30fps@2MP all resolutions (H.264)
- H.264, MJPEG codec supported, Multiple streaming
- Day & Night (ICR), WDR (120dB)
- Tampering, Motion detection
- Micro SD/SDHC memory slot (32GB), PoE
- Hallway view (90°/270°), WiseStreamII support
- IR viewable length 30m(98.43ft)
- IP66, IK10 support
SPECIFICATION:
| Video | |
| Imaging Device | 1/2.8″ CMOS |
| Resolution | 1920×1080, 1280×960, 1280×720, 800×600, 800×448, 720×576, 720×480, 640×480, 640×360 |
| Max. Framerate | H.264: Max. 30fps/25fps(60Hz/50Hz)(WDR off) H.264: Max. 15fps/12fps(60Hz/50Hz)(WDR on) MJPEG: Max. 10fps(@2MP Max. 2fps) |
| Min. Illumination | Color: 0.03Lux(F2.0, 1/30sec) BW : 0Lux (IR LED on) |
| Lens | |
| Focal Length (Zoom Ratio) | 2.8mm fixed focal |
| Max. Aperture Ratio | F2.0 |
| Angular Field of View | H: 114° / V: 62° / D: 135° |
| Min. Object Distance | 0.5m(1.64ft) |
| Focus Control | Fixed |
| Pan / Tilt / Rotate | |
| Pan / Tilt / Rotate Range | 0°~350° / 0°~67° / 0°~355° |
| Operational | |
| Camera Title | Displayed up to 15 characters |
| Day & Night | Auto(ICR) |
| Backlight Compensation | BLC, WDR, SSDR |
| Wide Dynamic Range | 120dB |
| Digital Noise Reduction | SSNR |
| Motion Detection | 4ea, rectangler zones |
| Privacy Masking | 6ea, rectangular zones |
| Gain Control | Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| LDC | Support |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (2~1/12,000sec) |
| Video Rotation | Flip, Mirror, Hallway view(90°/270°) |
| Analytics | Motion detection, Tampering |
| Alarm Triggers | Analytics |
| Alarm Events | When alarm trigger occurred – File upload(image) : e-mail/FTP – Notification : e-mail – Recording : SD/SDHC/SDXC or NAS recording at event triggers |
| Light Type | IR LED (850nm) |
| Light Viewable Length | 30m(98.43ft) |
| Network | |
| Ethernet | RJ-45(10/100BASE-T) |
| Video Compression | H.264: Main/Baseline/High, MJPEG |
| Smart Codec | WiseStreamⅡ |
| Bitrate Control | H.264: CBR or VBR MJPEG: VBR |
| Streaming | Unicast(6 users) / Multicast Multiple streaming (Up to 3 profiles) |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour |
| Application Programming Interface | ONVIF Profile S/G/T SUNAPI(HTTP API) |
| Security | |
| OS / Firmware Protect | Firmware encryption |
| User authentication | Digest Authentication, Prevent brute-force attack |
| Network authentication | 802.1X Authentication(EAP-TLS, EAP-LEAP, EAP-PEAP MSCHAPv2) |
| Secure Communication | HTTPS, SRTP, WSS(Websocket secure) |
| Access Control | Access control based on IP address |
| Data Protect | Authentication information encryption, ZIP compression encryption |
| Audit | User Access/System/Event log management |
| Device ID | Device Certificate(Hanwha Private Root CA) |
| Secure Storage | SDcard partition encrypt |
| General | |
| Webpage Language | English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Portuguese, Czech, Polish, Turkish, Dutch |
| Edge Storage | Micro SD/SDHC 1slot 32GB |
| Memory | 512MB RAM, 256MB Flash |
| Environmental & Electrical | |
| Operating Temperature / Humidity | -30°C~+55°C(-22°F~+131°F) / 0~90% RH * Start up should be done at above -20°C(-4°F) |
| Storage Temperature / Humidity | -30°C +55°C(-22°F ~ +131°F) / 0~90% RH |
| Certification | IP66, IK10 |
| Input Voltage | PoE(IEEE802.3af, Class3) |
| Power Consumption | Max 6.4W, Typical 5.0W |
| Mechanical | |
| Color / Material | White / Plastic, Aluminum |
| RAL Code | RAL9003 |
| Product Dimensions / Weight | ø120.3×91.7mm(ø4.74×3.61″), 410g |
| Hanging Mount (Dome) | SBP-122HMW |
| Backbox | SBV-120GW |
| DORI (EN62676-4 standard) | |
| Detect (25PPM/ 8PPF) | 25.1m(82.28ft) |
| Observe (63PPM/ 19PPF) | 10.0m(32.91ft) |
| Recognize (125PPM/ 38PPF) | 5.0m(16.46ft) |
| Identify (250PPM/ 76PPF) | 2.5m(8.23ft) |
