Description

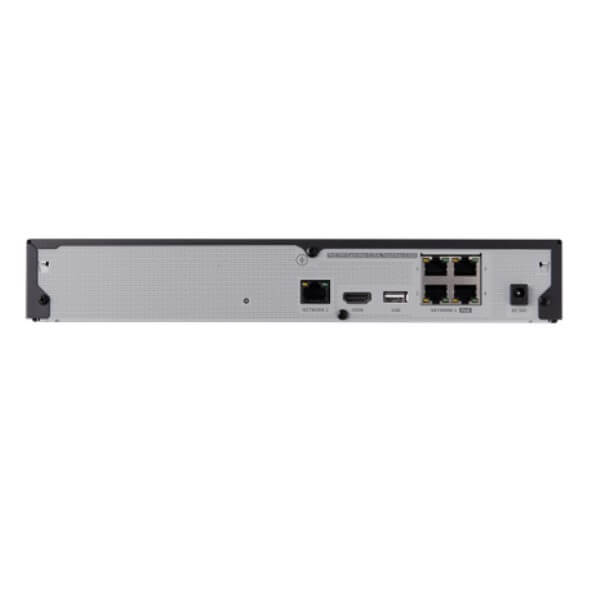

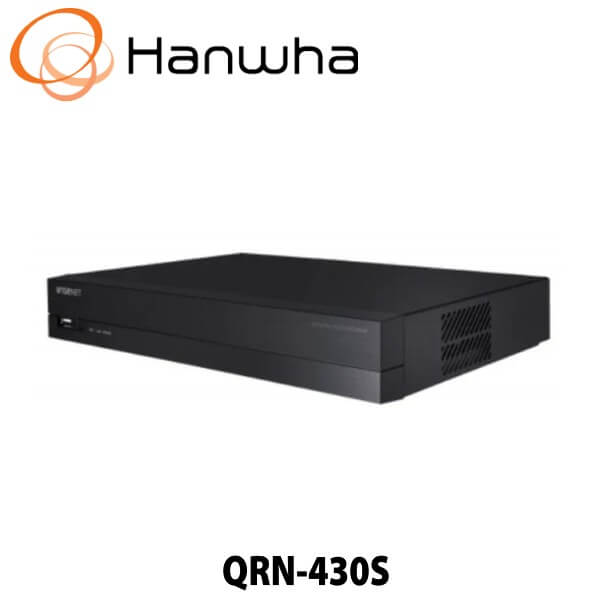

Hanwha QRN430S
The Hanwha QRN430S CCTV Network Video Recorder, formerly known under the Samsung CCTV brand, offers a dependable and high-performance surveillance solution tailored for compact security setups. Designed with user convenience, reliability, and seamless operation in mind, this 4-channel NVR is an excellent choice for homeowners, retail stores, and small businesses looking for an efficient and easy-to-manage security system. Its advanced features ensure smooth monitoring and recording, making it a trusted option for those seeking enhanced protection and peace of mind.
High-Quality Video Recording
The Hanwha QRN430S Kenya provides support for high-resolution video recording up to 8MP (4K), ensuring clear, detailed footage essential for precise monitoring and incident review. This high-definition capability significantly enhances visual clarity and security monitoring effectiveness.
Efficient H.265 Compression
Utilizing the latest H.265 compression technology, the Hanwha QRN430S reduces storage and bandwidth usage substantially, allowing for longer recording durations without compromising video quality. This efficiency is vital for smaller setups with limited storage resources.
Easy Installation and Management
The built-in PoE (Power over Ethernet) ports facilitate easy installation by delivering power and data connectivity to CCTV cameras through a single cable. The intuitive graphical user interface makes management, live monitoring, playback, and event handling straightforward, even for users with minimal technical experience.
Robust Analytics
The Hanwha QRN430S includes intelligent security analytics like motion detection and tampering alerts. These features ensure rapid, real-time notifications, helping operators swiftly respond to potential security breaches.
Versatile Display Compatibility
With HDMI and VGA outputs, the Hanwha QRN430S connects seamlessly to a variety of display monitors, allowing flexible viewing and playback options suitable for different environments and setups.
Reliable and Expandable Storage
The NVR supports 1 HDD slot capable of handling up to 6TB, providing ample storage space for surveillance video. This storage capability ensures critical footage remains secure and accessible for extended periods, ideal for compliance and review purposes.
For those seeking a compact, efficient, and high-performance surveillance solution, the Hanwha QRN430S CCTV NVR is a top-tier choice. Its 4K video recording, efficient compression, intelligent analytics, and expandable storage make it an ideal security system for homes, small businesses, and retail spaces. With its easy installation and user-friendly interface, even beginners can manage security operations seamlessly.
Invest in the Hanwha QRN430S for a smarter, more secure surveillance system tailored to your needs.
Features:
- 4-channel recording support
- Resolution up to 8MP (4K)
- H.265/H.264 video compression
- Built-in PoE ports
- HDMI/VGA video outputs
- Advanced security analytics
- 1 HDD slot supporting up to 6TB
- Easy-to-use graphical interface
Specifications:
| Display | |
| Network camera | |
| Network camera > Inputs | Max. 4CH |
| Network camera > Resolution | 8MP ~ CIF |
| Network camera > Protocols | SUNAPI, ONVIF |
| Decoding | |
| Decoding > Local Display | HDMI |
| Decoding > Multi Screen Display | [Local Monitor] 1/ 2V/ 2H/ 3V/ 4/ Sequence [Web] 1/ 2V/ 2H/ 3V/ 4 |
| Decoding > Resolution | [Local Monitor] 8M(30fps), 1080p(120fps), 720P(120fps), D1(120fps) |
| Performance | |
| Operating System | |
| Operating System > Embedded | Linux |
| Record | |
| Record > Compression | H.265, H.264, MJPEG |
| Record > Recording Bandwidth | Max. 40Mbps |
| Record > Resolution | 8MP ~ CIF |
| Record > Mode | Normal, Dual Stream, Schedule(Continuous/Event), Event (Pre/Post), Bookmark |
| Record > Event Trigger | Alarm Input, Video Loss, Camera Event(Sensor, MD, Video Analytics, Defocus, Audio), Dynamic Event |
| Record > Event Action | e-Mail, Event Push, PTZ Preset, Alarm Out, Buzzer, Monitor Out |
| Search & Play | |
| Search & Play > Playback Bandwidth | Max. 32Mbps |
| Search & Play > User | Max. 4 Users (Local 1, Remote 3) |
| Search & Play > Simultaneous playback | Max. 16CH(Local 4CH, Remote 4CH per user) |
| Search & Play > Fisheye Dewarping | CMS |
| Search & Play > Mode | Date & Time(Calendar), Event list, Text Search, Smart Search |
| Search & Play > Resolution | CIF ~ 8MP |
| Search & Play > Playback Control | Fast/Slow Forward / Backward, Move one step Up / Down |
| Storage | |
| Storage > Supported HDD | Up to 6TB |
| Storage > HDD Slot | SATA 1ea(Max. 6TB) |
| Backup | |
| Backup > File backup | BU/Exe(GUI), JPG/AVI(Network) |
| Backup > Function | Multi channel(Up to 4CH) Play, Date-Time/Title display |
| Network | |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Server, Client), SMTP, ICMP, IGMP, ARP, DNS, DDNS, uPnP, HTTPS, SNMP, ONVIF (Profile-S), SUNAPI(Server, Client) |
| DDNS | Hanwha DDNS |
| Transmission Bandwidth | Max. 50Mbps |
| Audio | |
| Audio > Input/Output | 4 CH(network) |
| Audio > Compression | G.711, G.726, AAC(16/48KHz) |
| Audio > Audio Communication | 2-Way |
| Max Remote Users | Search(3), Live Unicast(10), Multicast(20) |
| Security | IP address filtering, User access Log, 802.1x, Encryption Device certificate(Hanwha Techwin Root CA), Signed firmware |
| Web viewer | |
| Web viewer > Supported OS | Windows 10, macOS 10.13 |
| Web viewer > Supported browser | Google Chrome, Microsoft Edge, Mac Safari |
| Viewer Software | WAVE, SSM, Webviewer, Smart Viewer, Wisenet mobile Support CGI(SUNAPI) for integration to 3’rd party VMS |
| Functions | |
| Camera Setup | |
| Camera Setup > Register | Auto, Manual |
| Camera Setup > Item | IP address, Add profile edit, Bitrate, Compression, GOP, Quality, Camera MD setup (4, 8 point polygon) Camera video setup (Simple focus, Brightness/Contrast, Flip/Mirror, IRIS, WDR, D&N, SSNR, Shutter, SSDR, DIS), Fisheye Dewarping Mode, Hallway View Setup, Camera Webpage |
| PTZ | |
| PTZ > Control | Via GUI, Webviewer |
| PTZ > Preset | 300 Presets |
| Smart phone | |
| Smart phone > Support Model | iOS, Android |
| Smart phone > Protocol Support | RTP, RTSP, HTTP, CGI(SUNAPI) |
| Smart phone > Control | Live 4CH(Multi-Profile Support), Playback 4CH |
| Smart phone > Max. Remote Users | Search(3), Live Unicast(10) |
| Redundancy | |
| Redundancy > Failover | N+1 |
| Redundancy > ARB | Support |
| Easy configuration | P2P(QR code) |
| Interface | |
| Front | |
| Front > Indicator | Power, Record, Network |
| Storage | OK |
| Reset | Support |
| HDMI | 1EA 3840×2160 30Hz |
| Ethernet | PoE RJ-45(LAN, 10/100) 4 ea ,RJ-45 1ea (WAN, 10/100) |
| USB | 2EA(Front 1 x USB 2.0, Rear 1 x USB 2.0) |
| Power inlet | DC Adaptor |
| System | |
| Log | |
| Log > Log List | Max. 100,000 (System Log, Event Log each) |
| System Control | Mouse, Web |
| Language | English, French, German, Italian, Spanish, Russian, Turkish, Polish, Dutch, Swedish, Czech, Portuguese, Danish, Rumanian, Serbian, Croatian, Hungarian, Greek, Norwegian, Finnish, Korean, Chinese, Japanese, Thai, Vietnamese |
| Environmental | |
| Operating Temperature | 0°C to +40°C(32℉ to 104℉) |
| Operating Humidity | 20% ~ 85% RH |
| Electrical | |
| Power Input | 100 ~ 240 VAC ±10%; 50/60 Hz |
| Power Consumption | Max 52W(1HDD, PoE On) |
| PoE Budget | 35W |
| Mechanical | |
| Color / Material | Black / Metal |
| Dimension (WxHxD) | 300.0 x 47.1 x 208.4 mm (11.81 x 1.85 x 8.20 inch) |
| Weight | 1.03Kg (2.27lb) |
