Hanwha TNU6321



Hanwha TNU6321

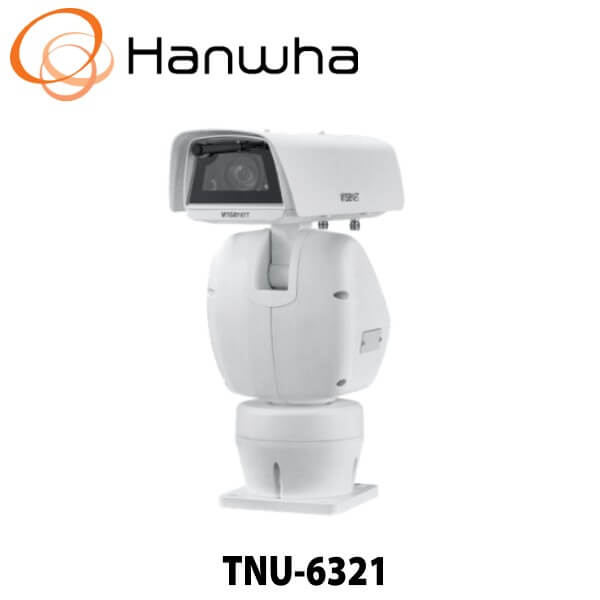

The Hanwha TNU6321 Explosion-Proof CCTV Camera, previously recognized under the Samsung CCTV brand, is meticulously designed to deliver superior surveillance performance in environments prone to explosions and hazardous conditions.

Description

Hanwha TNU6321

The Hanwha TNU6321 Explosion-Proof CCTV Camera, previously recognized under the Samsung CCTV brand, is meticulously designed to deliver superior surveillance performance in environments prone to explosions and hazardous conditions. Equipped with state-of-the-art imaging technology and a robust explosion-proof construction, this advanced security camera guarantees dependable and uninterrupted monitoring in high-risk industrial settings. By offering exceptional durability and reliability, it plays a crucial role in enhancing safety measures and reinforcing operational security in challenging work environments.

Clear and Detailed Imaging

Equipped with a 2MP (1920×1080) resolution sensor, the Hanwha TNU6321 Kenya delivers sharp, detailed video quality. Its clear imaging capability enables precise monitoring, making it ideal for security-critical environments where image clarity and accuracy are paramount.

Explosion Proof Safety

The TNU6321 features certified explosion-proof housing designed explicitly for hazardous locations. This ensures safe operation in environments exposed to explosive gases, flammable vapors, or combustible dust, meeting stringent international safety standards.

Advanced Night Vision

With integrated IR illuminators, the Hanwha TNU6321 CCTV Camera provides reliable night vision, ensuring clear visibility even in complete darkness. This functionality is crucial for continuous surveillance in environments requiring 24-hour monitoring, including industrial plants and high-risk facilities.

Robust and Reliable Construction

Built for tough outdoor conditions, the TNU6321 features IP66 weatherproof and IK10 vandal-resistant ratings. Its durable build ensures stable operation and resistance against extreme weather conditions, dust, impacts, and tampering, ideal for the most challenging environments.

Intelligent Surveillance Analytics

The TNU6321 is equipped with advanced intelligent analytics such as motion detection, tampering detection, and virtual line crossing. These proactive surveillance features provide instant notifications of potential security incidents, enhancing operational responsiveness and situational awareness.

Efficient Video Management

Utilizing advanced H.265 video compression technology, this camera optimizes storage resources by reducing bandwidth and storage requirements without compromising video quality. This ensures effective long-term video storage and management, essential for comprehensive security monitoring.

Simplified Installation

The TNU6321 supports Power over Ethernet (PoE), streamlining installation processes and reducing cabling requirements. Its compatibility with leading video management systems simplifies integration, providing seamless operational continuity for existing security infrastructures.

For organizations operating in hazardous and high-risk environments, the Hanwha TNU6321 Explosion-Proof CCTV Camera is a top-tier choice for ensuring uncompromised security and surveillance. With its high-definition imaging, explosion-proof design, advanced analytics, night vision, and durable construction, this camera is the perfect investment for industries requiring reliable and safe monitoring solutions.

Upgrade your security system with the Hanwha TNU6321 and experience next-level surveillance tailored for hazardous environments.

Features:

  • 2MP (1920×1080) Full HD resolution
  • Certified explosion-proof housing
  • Integrated IR LEDs for night vision
  • IP66 weatherproof, IK10 vandal-resistant
  • Advanced analytics (motion, tampering, line crossing)
  • H.265 video compression
  • Power over Ethernet (PoE)

Specifications:

Video
Imaging Device 1/2.8″ CMOS
Resolution 1920×1080, 1280×1024, 1280×960, 1280×720, 1024×768, 800×600, 800×448, 720×576, 720×480, 640×480, 640×360, 320×240
Max. Framerate H.265/H.264: Max. 60fps/50fps(60Hz/50Hz)
MJPEG: Max. 30fps
Min. Illumination Color: 0.05Lux(F1.6, 1/30sec)
B/W: 0.005 Lux(F1.6, 1/30sec)
Video Out CVBS: 1.0 Vp-p / 75Ω composite, 720×480(N), 720×576(P), for installation
Lens
Focal Length (Zoom Ratio) 4.44~142.6mm(32x) zoom
Optical Zoom x32
Max. Aperture Ratio F1.6(Wide)~F4.4(Tele)
Angular Field of View H: 61.8˚(Wide)~2.19˚(Tele) / V: 36.2˚(Wide)~1.24˚(Tele)
Min. Object Distance 1.5m(4.92ft)
Focus Control Auto, One shot AF
Lens Type DC auto iris
Pan / Tilt / Rotate
Pan Range 360˚ Endless
Pan Speed 0.036°~120°/sec
Tilt Range -90˚~40˚
Tilt Speed 0.012°~ 40°/sec
Sequence Preset(255ea), Swing, Group(6ea), Tour(1ea), Auto Run, Schedule
Preset Accuracy ±0.3˚
Operational
Camera Title Displayed up to 85 characters
Direction Indicator Support
Day & Night Auto(ICR)
Backlight Compensation BLC, HLC, WDR, SSDR
Wide Dynamic Range 120dB
Digital Noise Reduction SSNRⅤ
Digital Image Stabilization Support
Defog Support
Motion Detection 8ea, 8point polygonal zones
Gain Control Low, Middle, High
White Balance ATW, AWC, Manual, Indoor, Outdoor
Electronic Shutter Speed Minimum, Maximum, Anti flicker (1~1/12,000sec)
Analytics Defocus detection, Directional detection, Fog detection, Face detection, Motion detection, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Audio detection
Alarm I/O Input 1ea / Output 1ea
Alarm Triggers Analytics, Network disconnect, Alarm input
Alarm Events File upload via FTP and E-Mail
Notification via E-Mail
SD/SDHC/SDXC or NAS recording at event triggers
Alarm output
Handover
Audio In Selectable(Mic in/Line in),
Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm
Audio Out Line out, Max.output level: 1Vrms
IR Illuminator (Optional) Support (Auto/Manual)
Water Removal Support (with Wiper)
Network
Ethernet RJ-45(10/100BASE-T)
Video Compression H.265/H.264: Main/Baseline/High, MJPEG
Audio Compression G.711 u-law, G.726
G.726(ADPCM) 8KHz, G.711 8KHz
G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps
AAC-LC: 48Kbps at 16KHz
Smart Codec Manual(5ea area), WiseStreamⅡ
Bitrate Control H.264/H.265: CBR or VBR
MJPEG: VBR
Streaming Unicast(20 users), Multicast
Multiple streaming(Up to 10 profiles)
Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP, SRTP
Security HTTPS(SSL) login authentication
Digest login authentication
IP address filtering
User access log
802.1X authentication(EAP-TLS, EAP-LEAP)
Application Programming Interface ONVIF Profile S/G/T
SUNAPI(HTTP API)
Wisenet open platform
General
Webpage Language English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek
Edge Storage Micro SD/SDHC/SDXC 1slot 256GB
Memory 1024MB RAM, 256MB Flash
Environmental & Electrical
Operating Temperature / Humidity -40°C~+55°C(-40°F~+131°F) / Less than 90% RH
Storage Temperature / Humidity -40°C~+60°C(-40°F~+140°F) / Less than 90% RH
Certification IP66, Safety(UL, KC-SDOC), EMC(FCC, CE, VCCI, RCM, KC), IK10(Except wiper & window)
Input Voltage 24VAC
Power Consumption Max 100W(Heater On), typical 25W(Heater Off)
Mechanical
Color / Material White / Aluminum
RAL Code RAL9003
Product Dimensions / Weight 219(W)×528.2(H)×460(D)mm (8.62×20.79×18.11″), 14Kg (30.86 lb)
Compatible Models
Wall Mount SBU-500WM
DORI (EN62676-4 standard)
Detect (25PPM/ 8PPF) Wide: 64.2m(210.50ft) / Tele: 2,009.0m(6,591.31ft)
Observe (63PPM/ 19PPF) Wide: 25.7m(84.20ft) / Tele: 803.6m(2,636.53ft)
Recognize (125PPM/ 38PPF) Wide: 12.8m(42.10ft) / Tele: 401.8m(1,318.26t)
Identify (250PPM/ 76PPF) Wide: 6.4m(21.05ft) / Tele: 200.9m(659.13ft)
