Description

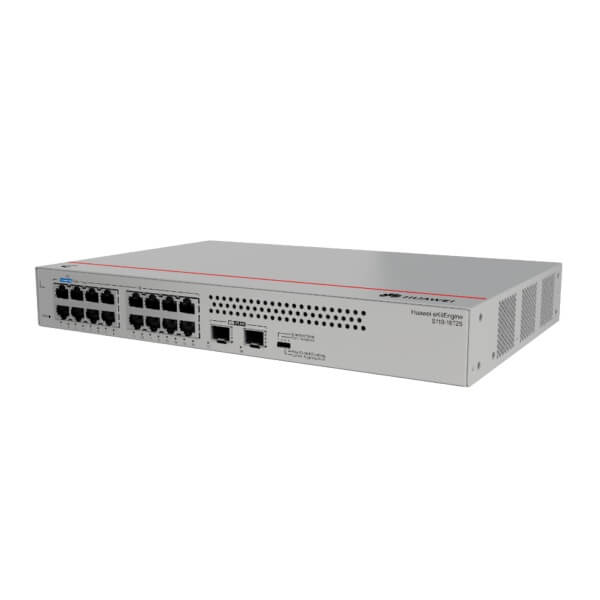

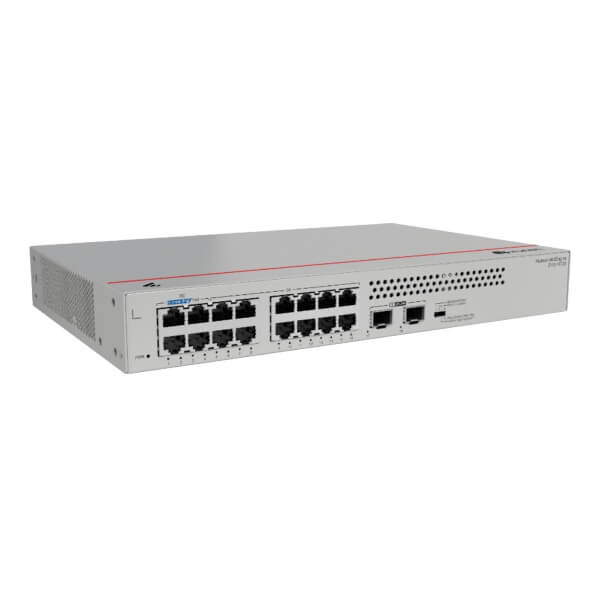

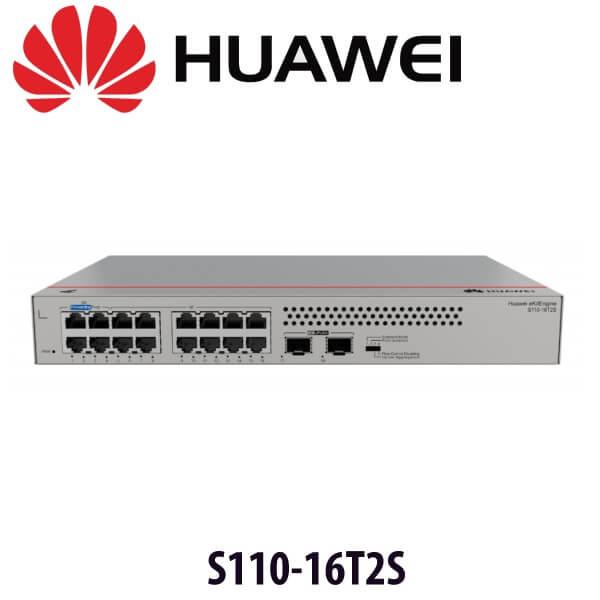

Huawei S110-16T2S Network Switch Kenya
The Huawei S110-16T2S Kenya fixed Ethernet switches are meticulously designed to seamlessly integrate both access and transmission functions. These switches guarantee dependable access and exceptional transmission quality for enterprise network services. Utilizing a unified hardware platform, they include a comprehensive system composed of the chassis, power module, fan module, and Switch Control Unit (SCU). Classified as unmanaged switches, the Huawei S110-16T2S Kenya models do not offer web-based management interfaces or support for Simple Network Management Protocol (SNMP) for remote administration. This design emphasizes simplicity and ease of use, making them perfect for straightforward network setups that do not necessitate complex management features. By prioritizing these core elements, the Huawei S110-16T2S Kenya switches deliver a practical and effective solution for enterprises seeking reliable and uncomplicated network infrastructure.
Technical Specifications
| Description | S110-16T2S (16*10/100/1000BASE-T ports, 2*GE SFP ports, built-in AC power, fanless) |
| Part Number | 98012200 |
| Model | S110-16T2S |
| Dimensions without packaging (H x W x D) [mm(in.)] | Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 320.0 mm x 210.0 mm (1.72 in. x 12.6 in. x 8.27 in.)
Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 320.0 mm x 217.0 mm (1.72 in. x 12.6 in. x 8.54 in.) |
| Dimensions with packaging (H x W x D) [mm(in.)] | 90.0 mm x 460.0 mm x 280.0 mm (3.54 in. x 18.11 in. x 11.02 in.) |
| Chassis height [U] | 1 U |
| Chassis material | Metal |
| Weight without packaging [kg(lb)] | 1.74 kg (3.84 lb) |
| Weight with packaging [kg(lb)] | 2.30 kg (5.07 lb) |
| Typical power consumption [W] | 11.0 W |
| Typical heat dissipation [BTU/hour] | 37.5 BTU/hour |
| Maximum power consumption [W] | 12 W |
| Maximum heat dissipation [BTU/hour] | 40.9 BTU/hour |
| Static power consumption | 3 |
| MTBF [years] | 78.75 years |
| MTTR [hours] | 2 hours |
| Availability | > 0.99999 |
| Noise at normal temperature (acoustic power) [dB(A)] | Noise-free (no fans), < 30 |
| Noise at normal temperature (acoustic pressure) [dB(A)] | Noise-free (no fans), < 20 |
| Number of card slots | 0 |
| Number of power slots | 0 |
| Number of fans modules | 0 |
| Switching capacity | To obtain data of this specification item, see the corresponding datasheet or contact the product sales personnel. |
| Packet forwarding rate | To obtain data of this specification item, see the corresponding datasheet or contact the product sales personnel. |
| Working mode |
|
| MAC address entry | 8K |
| Redundant power supply | Not supported |
| Long-term operating temperature [°C(°F)] | 0°C to 40°C (32°F to 104°F) at an altitude of 0-1800 m (0-5906 ft.) |
| Restriction on the operating temperature variation rate [°C(°F)] | When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). |
| Storage temperature [°C(°F)] | –40°C to +70°C (–40°F to +158°F) |
| Long-term operating relative humidity [RH] | 5% RH to 95% RH (non-condensing) |
| Long-term operating altitude [m(ft.)] | 0–5000 m (0–16404 ft.) |
| Storage altitude [m(ft.)] | 0-5000 m (0-16404 ft.) |
| Power supply mode | AC built-in |
| Rated input voltage [V] | AC input: 100–240 V AC; 50/60 Hz |
| Input voltage range [V] | AC input: 90 V AC to 264 V AC; 45 Hz to 65 Hz |
| Maximum input current [A] | 1 A |
| Memory | – |
| Flash memory | – |
| Console port | Not supported |
| Eth Management port | Not supported |
| USB | Not supported |
| RTC | Not supported |
| RPS input | Not supported |
| Service port surge protection [kV] | Common mode: ±6 kV |
| Power supply surge protection [kV] | ±2 kV in differential mode, ±4 kV in common mode |
| Ingress protection level (dustproof/waterproof) | IP20 |
| Types of fans | None |
| Heat dissipation mode | Natural heat dissipation |
| Airflow direction | – |
| PoE | Not supported |
| Certification |
|
