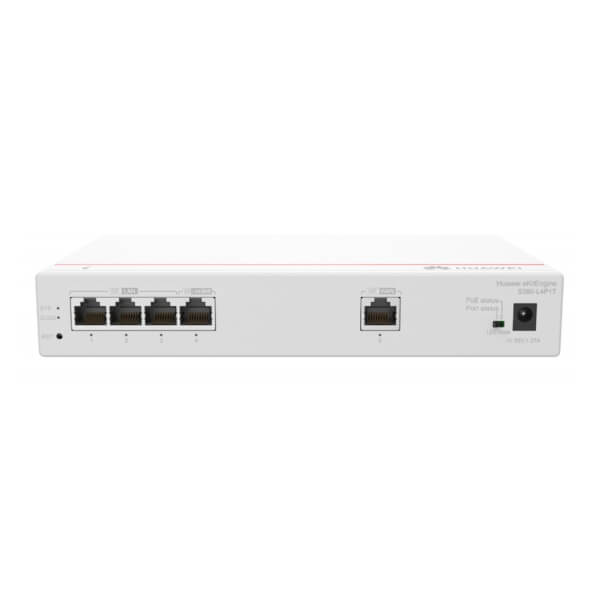

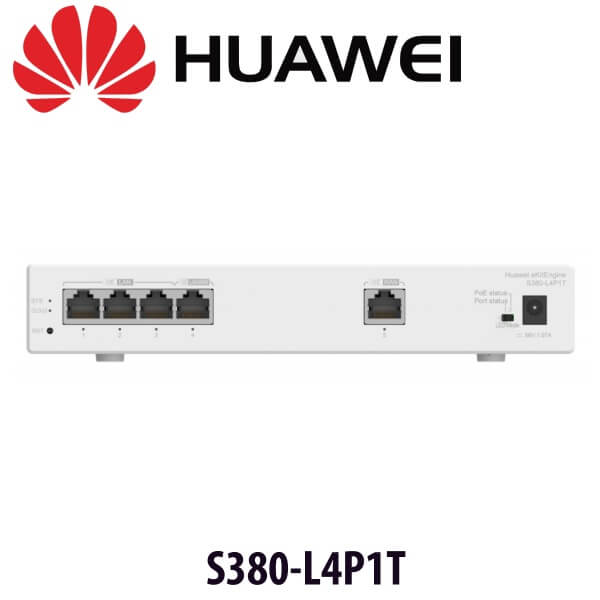

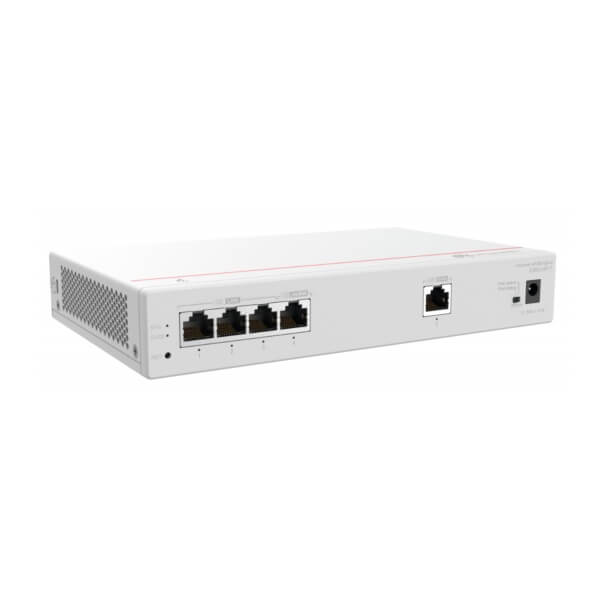

Huawei S380-L4P1T Multi-Service Gateway Kenya
The Huawei S380-L4P1T Kenya Multi-Service Gateways are highly advanced devices that combine routing, switching, and wireless access control (WAC) functionalities into a single, unified unit. These gateways come in various configurations to address a wide array of network needs. Available models include options with 4 or 8 downlink GE electrical ports, which can be either Power over Ethernet (PoE) enabled or non-PoE. Additionally, models with GE uplink ports are available to enhance network flexibility.
Engineered for ease of use, the Huawei S380-L4P1T Kenya Multi-Service Gateways support flexible Ethernet networking, simplifying the installation and deployment processes. This makes them an ideal choice for a broad range of indoor coverage applications. These gateways are particularly suited for small and medium-sized enterprises (SMEs), such as small office/home office (SOHO) setups, cost-sensitive hotels, manufacturing sites, primary and secondary educational institutions, and building security systems. Their adaptability and versatility enable the Huawei S380-L4P1T Kenya to meet the varied networking requirements of different business sectors, delivering efficient and reliable performance across multiple applications.
Technical Specifications
| Description | S380-L4P1T, 1*GE WAN, 4*GE LAN(PoE+, 50W) |
| Part Number | 98012178 |
| Model | S380-L4P1T |
| First supported version | V600R022C10 |
| Dimensions without packaging (H x W x D) [mm(in.)] | Basic dimensions (excluding the parts protruding from the body): 35.0 mm x 210.0 mm x 130.0 mm (1.38 in. x 8.27 in. x 5.12 in.)
Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 35.0 mm x 210.0 mm x 136.3 mm (1.38 in. x 8.27 in. x 5.37 in.) |
| Dimensions with packaging (H x W x D) [mm(in.)] | 90.0 mm x 285.0 mm x 180.0 mm (3.54 in. x 11.22 in. x 7.09 in.) |
| Chassis height [U] | 0.8 U |
| Chassis material | Metal |
| Weight without packaging [kg(lb)] | 0.9 kg (1.98 lb) |
| Weight with packaging [kg(lb)] | 1.1 kg (2.43 lb) |
| Typical power consumption [W] | 7.19 W |
| Typical heat dissipation [BTU/hour] | 24.5 BTU/hour |
| Maximum power consumption [W] | 61.65 W (PoE: 50 W) |
| Maximum heat dissipation [BTU/hour] | 210.4 BTU/hour |
| Static power consumption [W] | 4.54 W |
| MTBF [years] | 75.89 years |
| MTTR [hours] | 2 hours |
| Availability | > 0.99999 |
| Noise at normal temperature (acoustic power) [dB(A)] | Noise-free (no fans), < 30 |
| Noise at normal temperature (acoustic pressure) [dB(A)] | Noise-free (no fans), < 20 |
| Number of card slots | 0 |
| Number of power slots | 0 |
| Number of fans modules | 0 |
| Switching capacity | To obtain data of this specification item, see the corresponding datasheet or contact the product sales personnel. |
| Packet forwarding rate | To obtain data of this specification item, see the corresponding datasheet or contact the product sales personnel. |
| Uplink ports | 1 x GE WAN |
| Downlink ports | 1 x GE WAN, 4 x GE LAN (50 W PoE+) |
| Redundant power supply | Not supported |
| Long-term operating temperature [°C(°F)] | 0°C to 40°C (32°F to 104°F) at an altitude of 0-1800 m (0-5906 ft.) |
| Restriction on the operating temperature variation rate [°C(°F)] | When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). |
| Storage temperature [°C(°F)] | –40°C to +70°C (–40°F to +158°F) |
| Long-term operating relative humidity [RH] | 5% RH to 95% RH (non-condensing) |
| Long-term operating altitude [m(ft.)] | 0–5000 m (0–16404 ft.) |
| Storage altitude [m(ft.)] | 0-5000 m (0-16404 ft.) |
| Power supply mode | Power adapter |
| Rated input voltage [V] | Power adapter input: 100–240 V AC; 50/60 Hz
Power adapter output: 56 V DC |
| Input voltage range [V] | Power adapter input: 90–290 V AC; 47–63 Hz |
| Maximum input current [A] | 1.07 A |
| Memory | DDR4: 512 MB |
| Flash memory | NAND Flash: 512 MB |
| Console port | Not supported |
| Eth Management port | LAN port |
| USB | Not supported |
| RTC | Not supported |
| RPS input | Not supported |
| Service port surge protection [kV] | Common mode: ±4 kV |
| Power supply surge protection [kV] | Power adapter: ±6 kV in differential mode and ±6 kV in common mode |
| Ingress protection level (dustproof/waterproof) | IP20 |
| Types of fans | None |
| Heat dissipation mode | Natural heat dissipation |
| Airflow direction | – |
| PoE | Supported |
| Certification |
|
