Description

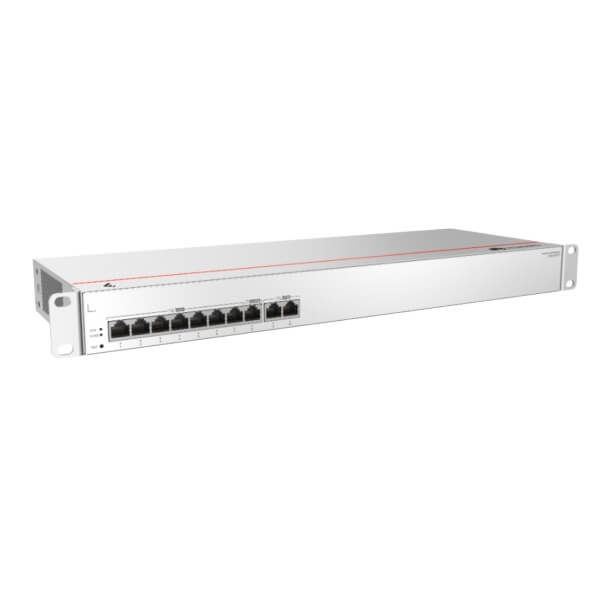

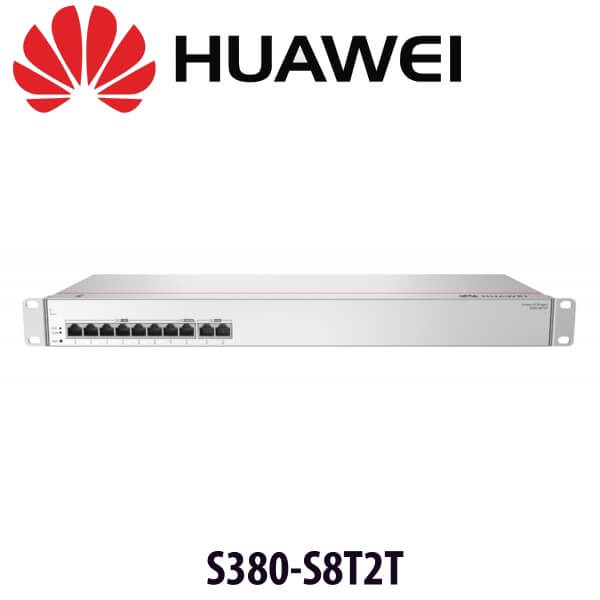

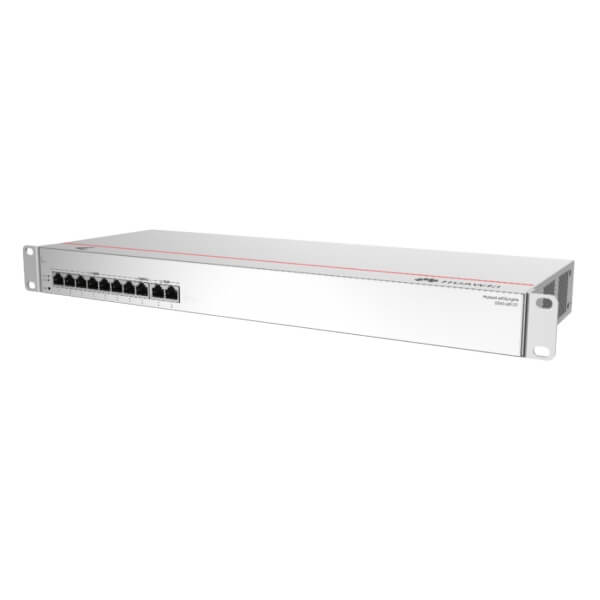

Huawei S380-S8T2T Multi-Service Gateway Kenya
The Huawei S380-S8T2T Kenya Multi-Service Gateways are advanced devices that seamlessly integrate routing, switching, and wireless access control (WAC) into one unified system. These high-tech gateways come in multiple configurations to cater to a wide range of network requirements. Each model features either 4 or 8 downlink GE electrical ports, with options for PoE (Power over Ethernet) or non-PoE ports to suit different needs. Additionally, some models offer GE uplink ports, which enhance network flexibility and performance.
Designed with user convenience in mind, the Huawei S380-S8T2T Kenya Multi-Service Gateways support flexible Ethernet networking, making installation and deployment significantly easier. This user-friendly design makes these gateways ideal for various indoor coverage applications. They are particularly beneficial for small and medium-sized enterprises (SMEs), including small office/home office (SOHO) setups, budget-conscious hotels, manufacturing facilities, primary and secondary educational institutions, and building security systems. The exceptional versatility and adaptability of the Huawei S380-S8T2T Kenya ensure that it can effectively meet the diverse networking needs of various business sectors, providing efficient and reliable performance across a multitude of applications.
Technical Specifications
| Description | S380-S8T2T, 2*GE WAN, 8*GE LAN |
| Part Number | 98012179 |
| Model | S380-S8T2T |
| First supported version | V600R022C10 |
| Dimensions without packaging (H x W x D) [mm(in.)] | Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 160.0 mm (1.72 in. x 17.4 in. x 6.3 in.)
Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 165.2 mm (1.72 in. x 17.4 in. x 6.5 in.) |
| Dimensions with packaging (H x W x D) [mm(in.)] | 90.0 mm x 550.0 mm x 260.0 mm (3.54 in. x 21.65 in. x 10.24 in.) |
| Chassis height [U] | 1 U |
| Chassis material | Metal |
| Weight without packaging [kg(lb)] | 1.6 kg (3.53 lb) |
| Weight with packaging [kg(lb)] | 2.1 kg (4.63 lb) |
| Typical power consumption [W] | 10.4 W |
| Typical heat dissipation [BTU/hour] | 35.5 BTU/hour |
| Maximum power consumption [W] | 10.55 W |
| Maximum heat dissipation [BTU/hour] | 36 BTU/hour |
| Static power consumption [W] | 5.82 W |
| MTBF [years] | 67.79 years |
| MTTR [hours] | 2 hours |
| Availability | > 0.99999 |
| Noise at normal temperature (acoustic power) [dB(A)] | Noise-free (no fans), < 30 |
| Noise at normal temperature (acoustic pressure) [dB(A)] | Noise-free (no fans), < 20 |
| Number of card slots | 0 |
| Number of power slots | 0 |
| Number of fans modules | 0 |
| Switching capacity | To obtain data of this specification item, see the corresponding datasheet or contact the product sales personnel. |
| Packet forwarding rate | To obtain data of this specification item, see the corresponding datasheet or contact the product sales personnel. |
| Uplink ports | 2 x GE WAN |
| Downlink ports | 8 x GE LAN |
| Redundant power supply | Not supported |
| Long-term operating temperature [°C(°F)] | 0°C to 40°C (32°F to 104°F) at an altitude of 0-1800 m (0-5906 ft.) |
| Restriction on the operating temperature variation rate [°C(°F)] | When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). |
| Storage temperature [°C(°F)] | –40°C to +70°C (–40°F to +158°F) |
| Long-term operating relative humidity [RH] | 5% RH to 95% RH (non-condensing) |
| Long-term operating altitude [m(ft.)] | 0–5000 m (0–16404 ft.) |
| Storage altitude [m(ft.)] | 0-5000 m (0-16404 ft.) |
| Power supply mode | AC built-in |
| Rated input voltage [V] | AC input: 100–240 V AC; 50/60 Hz |
| Input voltage range [V] | AC input: 90 V AC to 264 V AC; 45 Hz to 65 Hz |
| Maximum input current [A] | 0.8 A |
| Memory | DDR4: 512 MB |
| Flash memory | NAND Flash: 512 MB |
| Console port | Not supported |
| Eth Management port | LAN port |
| USB | Not supported |
| RTC | Not supported |
| RPS input | Not supported |
| Service port surge protection [kV] | Common mode: ±4 kV |
| Power supply surge protection [kV] | Power adapter: ±6 kV in differential mode and ±6 kV in common mode |
| Ingress protection level (dustproof/waterproof) | IP20 |
| Types of fans | None |
| Heat dissipation mode | Natural heat dissipation |
| Airflow direction | – |
| PoE | Not supported |
| Certification |
|
