Description

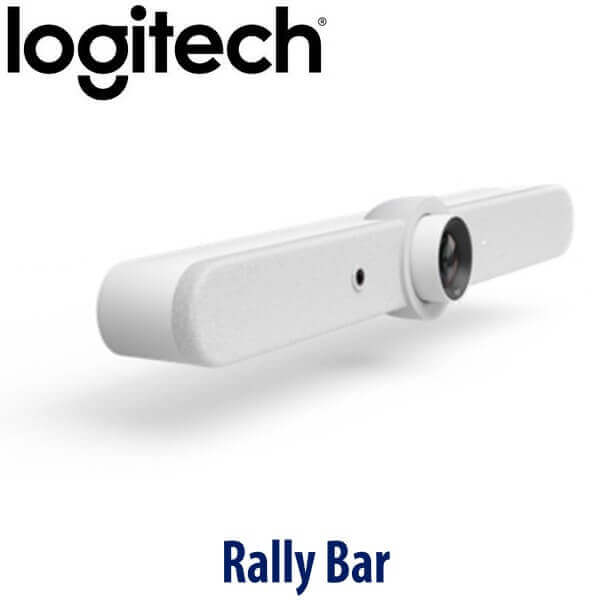

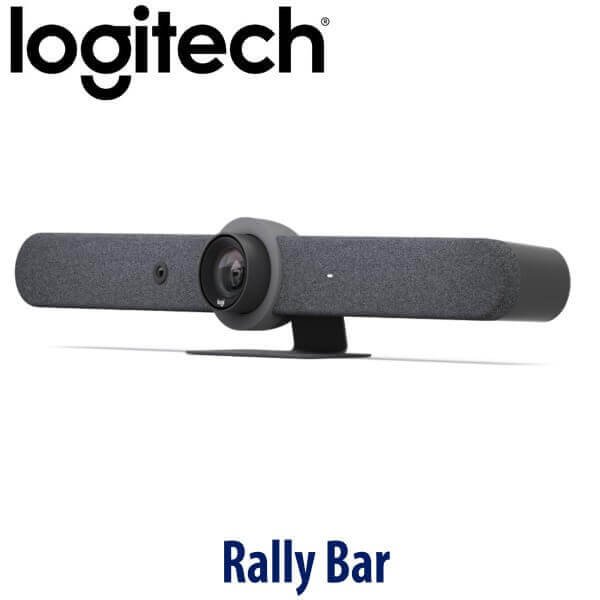

Logitech Rally Bar Kenya
Logitech Rally Bar Kenya remarkably simple to use, manage, and deploy at scale, delivering cinema-quality video and audio in a sleek, all-in-one form factor. Upgrade your video collaboration with Logitech Rally Bar, Plug and play Rally Bar with any PC or Mac, or leverage the built-in compute to run video conferencing applications directly on the device. Logitech Rally Bar Kenya features a multi-element lens assembly, powerful low distortion speakers, and an advanced mic system to create meeting experiences that sound as good as they look. A dedicated AI camera amplifies RightSight auto-framing and delivers insights about room usage directly to the Logitech Sync dashboard.
Logitech Rally Bar Features
RightSense Technologies
RightSight Detects meeting participants, automatically moves the lens and adjusts the zoom so no one is left out of the picture. RightSound AI-driven voice leveling and unwanted noise suppression deliver outstanding clarity. RightLight Intelligently adjusts video settings in all light conditions so everyone always looks their best.
SIMPLE TO SET UP
Built-in compute allows you to run supported video conferencing applications such as Zoom directly on the device. All-in-One Design Sleek, minimal footprint expedites setup and reduces clutter. USB Plug and Play Easily connects to virtually any PC or Mac®, with no additional software required Appliance Mode. Streamlined, Flexible Installs Confidently deploy at scale with smart cable management and multiple mounting options.
SIMPLE TO MANAGE
Logitech Sync Single platform to monitor room health and keep devices up to date, plus insights on room occupancy Deploy Updates at Scale Easily propagate upgrades and bug fixes to Rally Bar and you’re other supported Logitech devices. Forward-Looking Architecture Sync API is a robust foundation for new insights and integrations Partner. Dashboard Support Fully integrated with partner solutions like Microsoft Teams, Zoom, and others for a simplified device management experience
AI VIEWFINDER
All meeting participants, even late arrivals, are automatically seen and included. AI Viewfinder uses scene awareness to keep the camera on the action. A second built-in camera lens has the ability to detect meeting participants, amplifying RightSight auto framing.
Audio Features
Adaptive Beamforming Mic Array and Beamforming mics pick up voices at every seat and focus on the active talker while suppressing ambient noise Expansion Ready Add up to three Rally mic pods for even greater coverage in larger setting. Room-flling Sound large, Ultra low distortion speakers with RightSound™ convey every word with outstanding clarity.
Video Features
Logitech RightLight™ technology captures natural-looking skin tones, even in dim or backlit conditions. Logitech Rally Bar gives Ultra-HD Video brilliantly sharp video, outstanding color, and exceptional optical accuracy at resolutions up to 4K. Expansive Room Coverage Motorized lens covers rooms 130° across by 80° high, with lossless image quality up to 5X optical zoom.
Rally Bar Specifications
Camera
- Resolution: 4K, 1440p, 1080p, 900p, 720p, and SD at 30fps
- Pan: Motorized ±25°
- Tilt: Motorized ±15°
- Zoom: 15X HD zoom (5X optical, 3X digital available with upcoming software update)
- Diagonal field of view (dFoV): 90°
- Horizontal Field of View: 82.1°
- Vertical Field of View: 52.2°
- Total Room Coverage: 132.1° Horizontal x 82.2° Vertical
Speakers
- Drivers: 2x 70 mm
- Output: 90dB SPL @1W, 99dB SPL @8.0W, both +/-2dB at ½ meter
- Sensitivity: 90+/-3dB SPL at 1W, ½ meter
- THD: 1kHz < 2%
- Speaker Sampling Rate: 48 kHz
Microphones
- Frequency response: 90Hz – 16kHz
- Sensitivity: >-36dBFS +/-1 dB @ 1Pa
- Microphone data rate output: 48 kHz
- Pickup Range: 4.5 m
- Beamforming Elements: Six omnidirectional digital MEMS microphones forming five adaptive acoustic broadside beams
- Audio processing: AEC (Acoustic Echo Cancellation), VAD (Voice Activity Detector)
- Noise suppression: AI filter
- Add-on Mics: Supports up to 3 additional Rally Mic Pods for larger conference rooms
RightSense™ Technologies
- RightLight™: Renders natural skin tones for each participant.
- RightSight: Maintains persistent room awareness and detects human figures to auto-frame participants.
- RightSound: Distinguishes speech from other sounds to auto-level voices while suppressing background noise and echo
Interfaces
- HDMI Out: 2
- HDMI In: 1
- USB 3.0: 3x Type A, 1x Type C
- Network: 10/100/1G Ethernet
- WiFi: 802.11a/b/g/n/ac (MIMO)
- External Mic Input: Yes (proprietary input supports optional Rally Mic Pod, Rally Mic Pod Hub, and Rally Mic Pod Extension Cable)
- Remote Control: Bluetooth® Low Energy
Power & Cables
- Power supply: Auto-sensing
- Operating Voltage/Power: 100-240V, 19V, 4.74A
- Power Supply Dimensions: 127 mm x 51 mm x 30 mm
- DC Cable: 1.5 m
- AC Cable: 1 m
- HDMI 1.4 Cable: 2 m
- USB A to USB C 3.0 Cable: 2.2 m
Environmental
- Operating Temperature: 0 to 40°C
- Storage Temperature: -40 to 70 °C
- Humidity: 10 to 95%
- BTU/hr: 57 idle, 64 in meeting
Security
- Full Disk Encryption: AES-128
- Data Encryption: Symmetric Keys, PKI
- Device Identity: Protected by device attestation
- Device Access: Authenticated using API
- Key Protection: Arm TrustZone, RPMP
