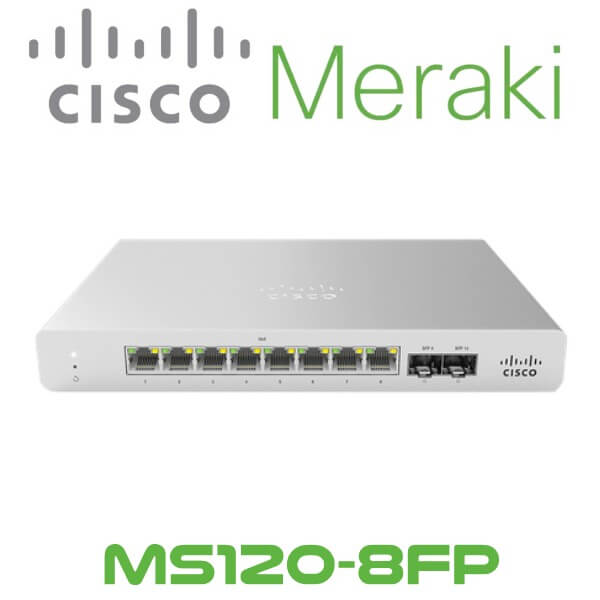

Meraki MS120-8FP Network Switch Kenya
Meraki MS120-8FP Kenya features cloud-compact switch that provide Layer 2 access switching in a fanless, compact form factor. MS120-FP include 1GbE SFP ports for fiber uplink, integrated mounting brackets, and a Kensington security slot, making it ideal for rapid and secure deployment to branch location. Gain accuracy through a unique design that uses the same protocol for measuring path performance as real traffic. Build resilient SD-WAN connectivity with integrated wired and cellular WAN, switching, and Wi-Fi. Optimize traffic over all available paths between sites and all multi-cloud environments—public and private
Meraki network switches are built to work seamlessly with cloud-managed Wi-Fi access points, IoT devices, and security solution. They are easily configured to be deployed, secured, and monitored at scale. To set up Meraki MS120-8FP Kenya switch, just plug it in; there’s no need for complicated configuration files or even direct physical access to the switch. Meraki’s centralized management gives administrators deep visibility into the network and how it’s used. For example, you can quickly see which switches are near capacity across hundreds of sites, or find all configuration changes made by a member of the team with instant search.
MS120-8FP Features
- Gigabit Access switching with 8 x 1GbE RJ45 ports and optional PoE/PoE+
- 2 x 1G SFP uplink interfaces on all models
- Fanless operation
- 20Gbps non-blocking compact switch
- 67/124 watt PoE budget with PoE+ support and dynamic power allocation for powering access points, phones, cameras, and other PoE-enabled devices
- 8 dedicated QoS queues for converged voice, video, and data applications
- Integrated mounting brackets for wall or desk mounting, with included Kensington security slot
- Lifetime hardware warranty and advanced replacement at no additional cost
Industry-Leading Cloud Management
Meraki Network Switch Kenya is cloud managed with a number of benefits that make it easier to build networks large and small:
- True zero-touch device provisioning
- Virtual Stacking: manage up to thousands of ports from a single pane of glass
- Application-layer visibility with automatic operating system, client, and hostname fingerprinting
- Powerful live tools such as packet capture and cable test to isolate and troubleshoot network issues
- Alerts to indicate power loss, downtime, excessive Layer 1 issues, and configuration changes
- Role-based administration and automatic, scheduled firmware upgrades over the web
- Regular feature updates and enhancements delivered on demand from the Meraki cloud
Add the top security analysts to your team.
With Meraki MS120-8FP Kenya, organizations access comprehensive security informed by world-renowned security research team, Cisco Talos.
- Defend against known and emerging threats with the support of one of the world’s largest commercial threat intelligence teams
- Harness the power of Talos’ threat intelligence, along with advanced layer-7 firewall protection, Cisco AMP, DLP, and much more
Branch & Campus Access
- Quality-of-Service (QoS) to prioritize mission-critical traffic such as voice and video
- Voice VLAN support for simplified VoIP deployments
- CDP/LLDP with detailed neighbor discovery and visibility
- Port Mirroring support for monitoring network traffic at line rate
- IGMP Snooping to optimize network performance for multicast applications
- Link Aggregation Control Protocol (LACP) for high-capacity trunking
Network Security
- IEEE 802.1X, MAB, and Hybrid authentication support for wired access control with RADIUS server monitoring
- Port security and MAC whitelisting
- Change of Authorization (CoA) and RADIUS accounting support
- DHCP snooping to prevent users from adding unauthorized DHCP servers on the network
- Rapid Spanning Tree, BPDU Guard, Root Guard, and other safeguards to help prevent misconfigurations and reduce convergence time
- Per-port VLAN configuration
- Multiple administrative roles with sophisticated security policy management
Network Troubleshooting & Automation
- Virtual Stacking lets administrators configure thousands of ports across a network in one dashboard action
- Configuration templates for rapid, zero-touch provisioning and auditing of all sites
- Network Topology for automatic and interactive network mapping
- Remote cable testing, packet capture, and client discovery
- Staged, automatic, and scheduled firmware upgrades for the complete network
Rapid Deployment & Configuration
With Meraki’s secure cloud architecture, Meraki MS120-8FP Kenya provisioning and orchestration becomes completely streamlined. Also, have zero-touch configuration coupled with configuration templates let administrators define a switch configuration once and then bind thousands of switches to a profile, reducing overhead and increasing network security.
MS120-8FP Specifications
Interfaces |
|
Management |
|
Remote diagnostics |
|
Stacking |
|
Ethernet switching capabilities |
|
Security |
|
Power over Ethernet |
|
Performance |
|
Power |
|
Mounting |
|
Environment |
|
MTBF |
|
Physical dimensions (HĂ—WĂ—D) |
|
Physical Weight |
|
