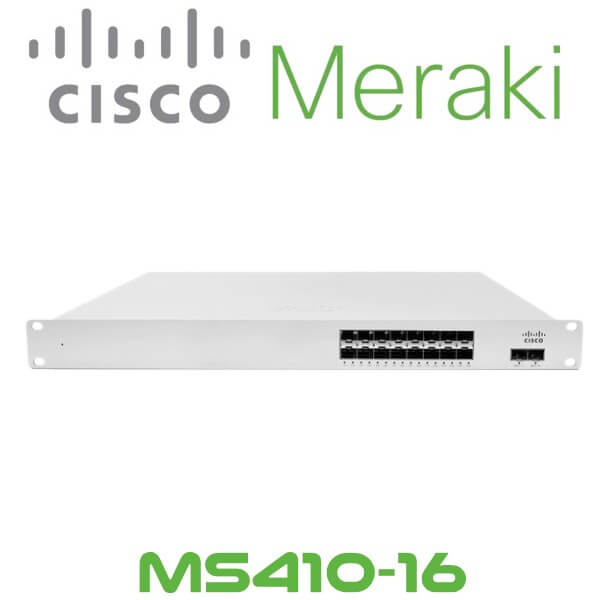

Meraki MS410-16 Kenya

The Cisco Meraki MS410-16 Kenya is 16 Port Cloud Managed Switch with 1 Gigabit and 10 Gigabit aggregation switch, bringing the benefits of the cloud including: simplified management, reduced complexity, network wide visibility and control, and lower cost for deployments.

Add to quote

Description

Meraki MS410-16 Network Switch Kenya

The Meraki MS410-16 Kenya is 16 Port Cloud Managed Switch with 1 Gigabit and 10 Gigabit aggregation switch, bringing the benefits of the cloud: simplified management, reduced complexity, network wide visibility and control, and lower cost for deployments. Meraki aggregation switches extend Meraki’s cloud management to campus deployments. Just like our access switches, these 10 Gigabit Ethernet aggregation switches are built from the ground up to be easy to manage without compromising any of the power and flexibility traditionally found in enterprise-class switches.

Meraki MS410-16 Kenya is managed through an elegant, intuitive cloud interface, rather than a cryptic command line. To bring up a Meraki switch, just plug it in; there’s no need for complicated configuration files or pre-staging. Meraki’s cloud managed architecture makes it simpler than ever to quickly provision and reconfigure switch ports with security, QoS, and other parameters. The Meraki Cloud Controller provides unified policies, event logs, and monitoring, which make it easy to manage and grow large network deployments.

MS410-16 Features

Centralized management that allows you to manage your entire Meraki network stack from campus aggregation to your access layer (wireless APs, switches, firewalls).
Stack for high density fiber aggregation and manage up to tens of thousands of ports from a single pane of glass.
Layer 7 OS, client, and hostname fingerprinting.
E-mail and SMS (text) alerts upon power loss, downtime, or configuration changes.
Role-based administration and automatic, scheduled firmware upgrades over the web.
Regular feature updates and enhancements delivered on demand from the Meraki cloud.
True zero–touch provisioning
Email and text message alerts

Built-In Multi-Site Cloud Management

The Meraki MS is the industry’s first cloud managed switch, combining the benefits of cloud based centralized management with a powerful, reliable access platform. With cloud management, thousands of switch ports can be configured and monitored instantly, over the web. Provision remote sites without on-site IT, deploy network-wide configuration changes, and easily manage campus and distributed networks without training or dedicated staff.

Cloud management has a number of benefits that make it easier to build networks large and small:

Centralized management that allows you to manage your entire Meraki network stack from campus aggregation to your access layer (wireless APs, switches, firewalls).
Virtual stacking: manage up to tens of thousands of ports from a single pane of glass.
Layer 7 OS, client, and hostname fingerprinting.
Powerful Live Tools such as cable test to isolate physical layer issues.
E-mail and SMS (text) alerts upon power loss, downtime, or configuration changes.
Role-based administration and automatic, scheduled firmware upgrades over the web.
Regular feature updates and enhancements delivered on demand from the Meraki cloud.
No staging deployments

Campus Edge

Meraki MS410-16 Kenya is ideal for small and large scale campus deployments, where reliability, scalability, and manageability are top priorities.

Virtual Stacking lets administrators manage up to 10,000 ports in a single interface without having to pre-define stack members.
10 GbE cable SFP+ ports with link aggregation provide high speed connectivity to distribution or core switches.
Get alerts when any switch fails or goes offline, before users complain.

Converged Voice, Video and Data Environments

The Meraki MS410-16 Kenya is designed to unify data, voice, and video onto a single IP backbone. All Meraki switches support rich quality-of-service (QoS) functionality for prioritizing data, voice, and video traffic. The switches support eight class-of-service (CoS) queues on every port, enabling them to maintain end-to-end traffic prioritization.

Simplified Management and Operations

By providing a complete, powerful set of management functions over the web, Cisco Meraki MS410-16 Kenya Dashboard system eliminates the need for proprietary command line configuration interfaces which require expensive or time consuming certifications. Cisco Meraki MS switches can be fully deployed and provisioned in minutes, without requiring any local configuration or staging. Additional or replacement switches can be sent to remote offices and installed by non-technical staff, saving thousands of dollars in time and travel expense.

Lifetime Warranty with Next-day Advanced Replacement

Cisco Meraki MS switches include a limited lifetime hardware warranty that provides next-day advance hardware switch replacement as long as the original purchaser owns the product. Meraki’s simplified software and support licensing model also combines all software upgrades, centralized systems management and phone support under a single, easy-to-understand model.

MS410-16 Specifications

Interfaces

16 × 1 GbE SFP
2 × 10GbE SFP+
1 × 10/100/1000 RJ45 management port

Ethernet switching capabilities

1p Quality of Service prioritization
1Q VLAN tagging and Q-in-Q VLAN stacking with 4096 addressable tags
1D Spanning Tree Protocol (RSTP, STP)
1ab Link Layer Discovery Protocol (LLDP)
3ad link aggregation with up to 8 ports per aggregate
Broadcast storm control
IGMP snooping for multicast filtering
96K Forwarding Table Capacity

Layer 3 capabilities

Dynamic routing (OSPFv2)
Static routing
DHCP Relay
DHCP Server
Warm spare redundancy (VRRP)
DHCP Failover

Security

Integrated two-factor authentication
Role-based administration
Corporate wide password policy enforcement
IEEE 802.1X port-based security
LLDP, VLAN QoS (802.1pq), VPN(L2TP)
Transport Layer Security (TLS)
Digest authentication using MD5/MD5-sess
Secure configuration file via AES encryption
Phone lock for personal privacy protection
Admin/User 2-level configuration mode

Performance

Non-blocking fabric
72 Gbps switching capacity

Hardware & Mounting

Rack-mountable with included rack mount hardware
Front-to-back airflow
Field-replaceable, hot-swappable power supplies
Field-replaceable, hot-swappable fans

Management

Managed via the cloud using the Meraki dashboard
Integrated with Meraki wireless, security appliance, and device management
No-touch remote deployment (no staging needed)
Detailed historical per-port and per-client usage statistics
DHCP and hostname fingerprinting
SNMPD allows integration with 3rd-party network management solutions
Seamless over-the-web firmware upgrades

Remote diagnostics

Email and text (SMS) alerts
Live remote packet capture
Aggregated event logs with instant search

Scalable stacking

Unified configuration and monitoring of all switches from aggregation layer to access layer
Virtually stack thousands of switch ports in a single logical stack for unified management, monitoring, and configuration
Physically stack up to 8 switches for added resiliency in high-throughput environments

Power
