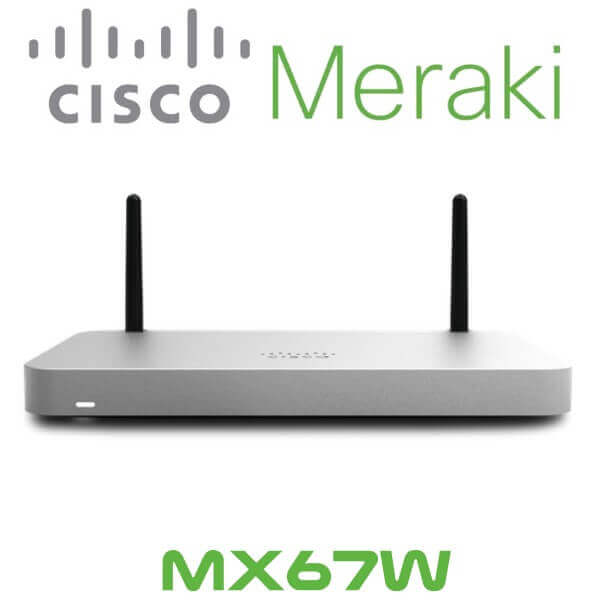

Meraki MX67W Security Appliance Kenya

The Cisco Meraki MX67W Kenya cloud-managed security & SD-WAN appliance that has 802.11ac Wave 2 Wi-Fi. Ideal for small retail branches or clinics, this device can routinely support up to 50 users and has a stateful firewall throughput of up to 450 Mbps. Cisco Meraki SD-WAN MX67W Kenya allows a maximum of 50 simultaneous VPN sessions for absolutely secure data transfer and includes five Gigabit Ethernet interfaces so that you can connect a variety of devices to it.

Since the Meraki MX67W Kenya is 100% cloud managed, installation and remote management is simple. The MX has a comprehensive suite of security and network services including threat management and SD-WAN capabilities, eliminating the need for multiple appliances. Your business can use a central location to set up its retail outlets or clinics without having to travel. Template-based multi-network management allows you to quickly set up profiles and settings across thousands of devices to ensure it scales easily. Monitoring and reporting systems ensure you get email alerts that inform you of utilization metrics, and comprehensive changelogs make tracing modifications very quick.

Meraki SD-WAN enterprise appliances Kenya secure your network with the intelligent WAN that includes policy-based routing and dynamic VPN path selection, and it has a variety of application-layer protocols and systems that ensure only authorized visitors get in. Threat management solutions include content filtering, intrusion prevention using a PCI-compliant IPS sensor, identity-based policies, and Advanced Malware Protection from Cisco for maximum protection. An enhanced CPU and plenty of memory ensure this Cisco Meraki cloud-managed security & SD-WAN appliance can process all the information flowing through it rapidly.

MX67W Features

• Application-aware traffic control: bandwidth policies for Layer 7 application types (e.g., block YouTube, prioritize Skype, throttle BitTorrent)
• Content filtering: CIPA-compliant content filter, safe-seach enforcement (Google/Bing), and YouTube for Schools
• Intrusion prevention: PCI-compliant IPS sensor using industry-leading SNORT® signature database from Cisco
• Advanced Malware Protection: file reputation-based protection engine powered by Cisco AMP
• Identity-based security policies and application management

MX67W Specifications

General

• Recommended Use Cases : Small branch
• Recommended Clients : 50
• Stateful Firewall Throughput : 450 Mbps
• Advanced Security Throughput : 300 Mbps
• Maximum VPN Throughput : 200 Mbps
• Maximum Concurrent VPN Tunnels : 50
• WAN Interfaces (Dedicated) : 1 x GbE RJ45 1 x USB (cellular failover1 )
• Dual-purpose : 1 x GbE RJ45
• LAN Interfaces : Fixed 4 x GbE RJ45
• Mounting : Desktop or wall mount
• Dimensions (w x d x h) 9.4”x 5.1” x 1.1” (239mm x 130mm x 27mm)
• Weight : 1.74 lb (0.7kg)
• Power Supply : 30W DC
• Operating Temperature : 32°F to 113°F (0°C to 45°C)
• Humidity : 5% to 95%

Management

• Managed via the web using the Cisco Meraki dashboard
• Single-pane-of-glass into managing wired and wireless networks
• Zero-touch remote deployment (no staging needed)
• Automatic firmware upgrades and security patches
• Templates based multi-network management
• Org-level two-factor authentication and single sign-on
• Role-based administration with change logging and alerts

Monitoring and Reporting

• Throughput, connectivity monitoring and email alerts
• Detailed historical per-port and per-client usage statistics
• Application usage statistics
• Org-level change logs for compliance and change management
• VPN tunnel and latency monitoring
• Network asset discovery and user identification
• Periodic emails with key utilisation metrics
• Device performance and utilisation reporting
• Netflow support
• Syslog integration

Remote Diagnostics

• Live remote packet capture
• Real-time diagnostic and troubleshooting tools
• Aggregated event logs with instant search

Network and Firewall Services

• Stateful firewall, 1:1 NAT, DMZ
• Identity-based policies
• Auto VPN: Automated site-to-site (IPsec) VPN, for hub-and-spoke or mesh topologies
• Client (IPsec L2TP) VPN
• Multiple WAN IP, PPPoE, NAT
• VLAN support and DHCP services
• Static routing
• User and device quarantine

WAN Performance Management

• Web caching (available on the MX84, MX100, MX250, MX450)
• WAN link aggregation
• Automatic Layer 3 failover (including VPN connections)
• 3G / 4G USB modem failover or single-uplink
• Application level (Layer 7) traffic analysis and shaping
• Ability to choose WAN uplink based on traffic type
• SD-WAN: Dual active VPN with policy-based routing and dynamic path selection
• CAT 6 LTE modem for failover or single-uplink1

Advanced Security Services

• Content filtering (Webroot BrightCloud CIPA compliant URL database)
• Web search filtering (including Google / Bing SafeSearch)
• YouTube for Schools
• Intrusion-prevention sensor (Cisco SNORT® based)
• Advanced Malware Protection (AMP)
• AMP Threat Grid
• Geography-based firewall rules (MaxMind Geo-IP database)

Integrated Wireless

• 1 x 802.11a/n/ac (5 GHz) radio
• 1 x 802.11b/g/n (2.4 GHz) radio
• Max data rate 1.2 Gbps aggregate (MX64W, MX65W), 1.3Gbps aggregate (MX67W, MX68W, MX68CW)
• 2 x 2 MU-MIMO with two spatial streams (MX67W, MX68W, MX68CW)
• 2 external dual-band dipole antennas (connector type: RP-SMA)
• Antenna gain: 3.0 dBi @ 2.4 GHz, 3.5 dBi @ 5 GHz
• WEP, WPA, WPA2-PSK, WPA2-Enterprise with 802.1X authentication
• FCC (US): 2.412-2.462 GHz, 5.150-5.250 GHz (UNII-1), 5.250-5.350 GHZ (UNII-2), 5.470- 5.725 GHz (UNII-2e), 5.725 -5.825 GHz (UNII-3)
• CE (Europe): 2.412-2.484 GHz, 5.150-5.250 GHz (UNII-1), 5.250-5.350 GHZ (UNII-2) 5.470-5.600 GHz, 5.660-5.725 GHz (UNII-2e)
• Additional regulatory information: IC (Canada), C-Tick (Australia/New Zealand), RoHS
