Description

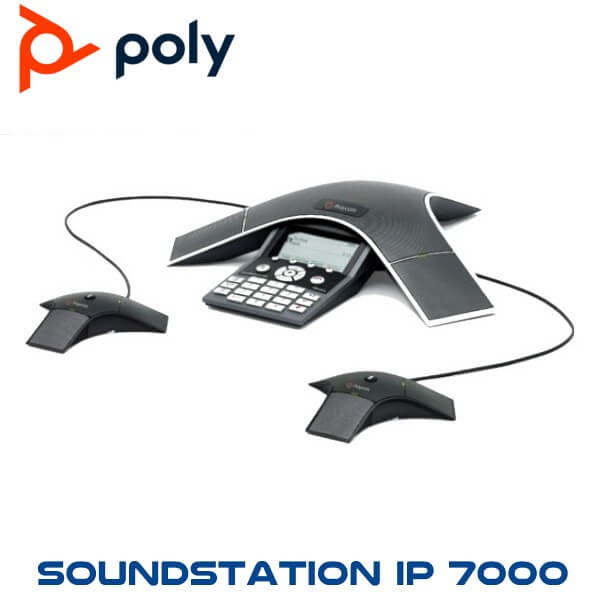

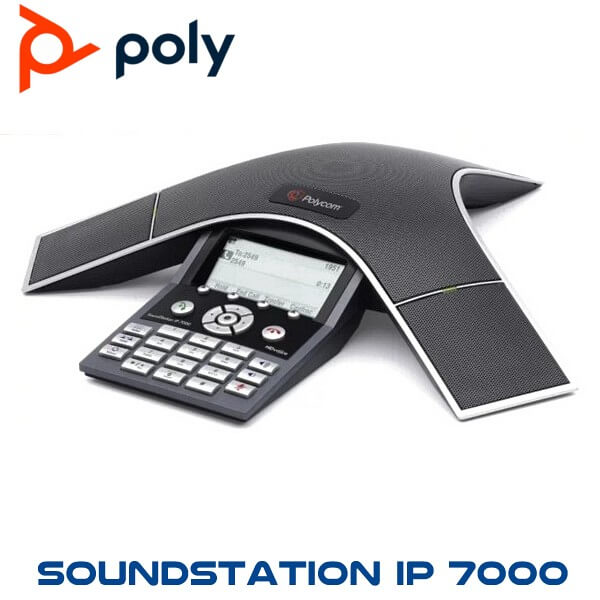

Poly SoundStation IP 7000 Multi-Interface Module Kenya
The Poly SoundStation IP 7000 Multi-Interface Module Kenya is a highly efficient device that has been designed to enable you to connect two Poly Soundstation IP 7000 telephones on a local available network.
The IP 7000 Multi-Interface Module Kenya from Poly simply extends the connectivity and deployment options of the SoundStation IP 7000 conference phone including daisy-chaining, recording devices, external microphones, and auxiliary audio output that enables adding loudspeakers to reinforce audio in the room.
It provides a single power source for a daisy-chain configuration of two SoundStation IP 7000s, as well as when using HDX Series or RealPresence Group Series table and ceiling microphone arrays.
Features
- Wide Compatibility
- This is widely compatible with a broad array of SIP call platforms to maximize voice quality and feature availability, while simplifying management and administration
- Flexible configuration options –
- Poly SoundStation IP 7000 Kenya provides multi-unit connectivity and expansion microphones, and integrates with Polycom HDX, to meet the needs of many different types of rooms
- Polycom HD Voice
- The IP 7000 Multi-Interface Module Kenya combines advanced software and hardware technology including Polycom HD Voice and Polycom Acoustic Clarity to deliver crystal clear, life-like, and outstanding audio clarity to its users. This results in more lively and productive conference calls.
Technical Specifications
Power
- Provides power for two SoundStation IP 7000s in daisy chain configuration, as well as when using HDX Series or RealPresence Group Series table and ceiling digital microphone arrays. For audio only applications up to three digital mic arrays can be added to a single SoundStation IP 7000, or up to two can be added to a daisy chained SoundStation IP 7000 configuration. If integrating a single SoundStation IP 7000 with RealPresence Group Series or HDX Series video systems, up to two additional digital mic arrays can be supported.
Audio Only Applications
- SoundStation IP 7000 with Multi-Interface Module (MIM) can power up to 3 digital microphone arrays.
- daisy chained SoundStation IP 7000s with required MIM and can power an additional 2 digital mic arrays.
Combined with RealPresence Group Series or HDX Series video system
- Video system codec + 1 SoundStation IP 7000 can power up to 2 additional digital mic arrays.
- Daisy chain not supported with codec.
Auxiliary Audio output
- Has RCA jacks supporting auxiliary audio output to amplifier or powered speakers, thus enabling more room filling sound.
Call Recording
- Conference calls can be recorded with the line level audio output
Audio Input
- Line level audio input supporting lapel or other auxiliary microphone
