PowerEdge R760 Kenya

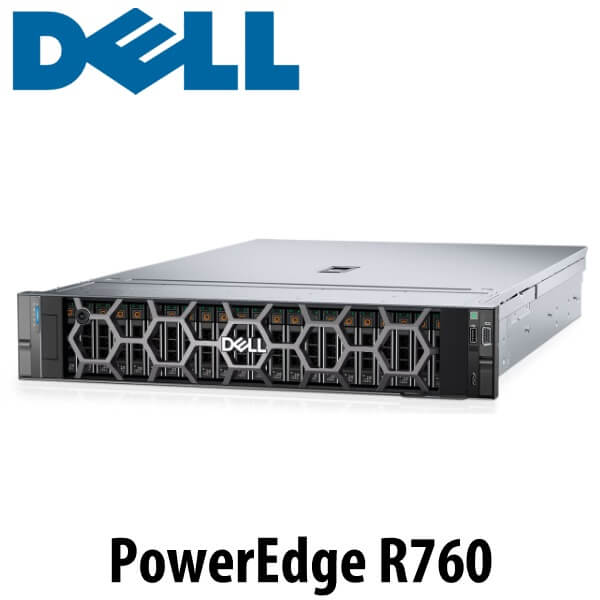

Dell PowerEdge R760 Kenya Rack Server: Unleashing Ultimate Performance and Versatility

The Dell PowerEdge R760 Kenya is a cutting-edge 2U, dual-socket rack server designed to meet the demands of today’s most challenging applications. With peak compute performance, optimized configurations, and unmatched adaptability, it ensures faster time-to-value for enterprises of all sizes.

Exceptional Performance and Adaptability

The PowerEdge R760 Kenya delivers top-tier versatility and performance, ideal for complex workloads such as Artificial Intelligence (AI) and Machine Learning (ML).

Key Features:

• Processor Power:
  • Supports up to two 4th Generation Intel® Xeon® Scalable processors (up to 56 cores) or two 5th Generation Intel® Xeon® Scalable processors (up to 64 cores), ensuring faster, more accurate processing.
• Memory Acceleration:
  • Accommodates up to 32 DDR5 RDIMMs with speeds of up to 4800 MT/sec for 4th Gen processors or up to 5600 MT/sec for 5th Gen processors, empowering memory-intensive applications.
• GPU Support:
  • Includes configurations for 2 double-wide GPUs or 6 single-wide GPUs, catering to accelerated workload requirements.

Air-Cooled High Performance

The PowerEdge R760 Kenya is equipped with a Smart Flow chassis, optimizing airflow to support high-core-count CPUs in air-cooled environments. Its cooling system supports up to 16 2.5” drives and 2 x 350-watt processors, ensuring seamless operations without compromising performance.

Enhanced Agility and Customization

This server offers unparalleled flexibility to align with evolving business needs:

• Storage Options:
  • Up to 12 x 3.5” SAS3/SATA drives or up to 24 x 2.5” SAS4/SATA drives, with options for up to 24 NVMe U.2 Gen4 or 16 NVMe E3.S Gen5 drives.
• Expandable Connectivity:
  • Supports multiple Gen4 and Gen5 riser configurations, offering up to 8 PCIe slots for scalable performance.

Cyber Resilience for a Zero Trust Environment

The PowerEdge R760 Kenya is built with a Cyber Resilient Architecture that integrates security at every stage of the lifecycle:

• Silicon-Based Root of Trust: Ensures secure boot resilience.
• Multi-Factor Authentication and Role-Based Access Controls: Safeguards trusted operations.
• Protected Supply Chain: Delivers factory-to-site integrity assurance.

Effortless Management with Dell OpenManage™

Simplify operations with the Dell OpenManage™ portfolio:

• Centralized management via the OpenManage Enterprise console.
• Streamlined, automated one-to-many server management.
• Integrated iDRAC for efficient server control.

Sustainability and Cost Efficiency

Designed with sustainability in mind, the PowerEdge R760 Kenya uses recycled materials and offers energy-efficient options to reduce operational costs and environmental impact. Dell Technologies Services also facilitate responsible retirement of legacy systems.

Ideal Workload Applications

The PowerEdge R760 Kenya is purpose-built for:

• Mixed Workload Standardization.
• Database and Analytics.
• Virtual Desktop Infrastructure (VDI).

Unlock unparalleled performance, security, and sustainability with the Dell PowerEdge R760 Kenya—a versatile solution for organizations striving for excellence in enterprise computing.

Features & Design

Innovate where you never thought possible

Deploy massive compute anywhere with the latest family of powerful, secure servers engineered to accelerate automation and innovation.

Ready for tomorrow

The PowerEdge R760 Kenya will move your business forward, meeting the most demanding workloads.

Performance, meet versatility

Gain the performance you need with the full-featured Dell PowerEdge R760 Kenya enterprise rack server. Designed to deliver peak compute performance through optimum configurations, the PowerEdge R760 optimizes the most demanding workloads like AI and Machine Learning.

• Add up to two 5th Generation Intel^® Xeon^® Scalable processors with up to 64 cores for faster and more accurate processing performance
• Accelerate in-memory workloads with up to 32 DDR5 RDIMMS up to 5600 MT/sec (1DPC)
• Support for GPUs including 2 x double wide or 6 x single-wide for workloads requiring acceleration
• New Smart Flow chassis optimizes airflow to support the highest core count CPUs in an air-cooled environment within the current IT infrastructure

Technical Specifications:

Processor:

• Up to 2 x 5th Generation Intel® Xeon Scalable processors with up to 64 cores per processor

Operating System:

• Canonical Ubuntu Server LTS
• Microsoft Windows Server with Hyper-V
• RedHat Enterprise Linux
• SUSE Linux Enterprise Server
• VMware ESXi

Chipset:

• Intel® C741 Chipset

Accelerators:

• Up to 2 x 350 W DW and 6 x 75 W SW

Memory:

• DIMM Speed: Up to 5600 MT/s on 5th Generation Intel® Xeon Scalable processors
• Memory Type: RDIMM
• Memory Module Slots: 32 DDR5 DIMM slots
• Maximum RAM: RDIMM 8 TB

Storage:

• Front Bay:
  • Up to 12 x 3.5-inch SAS/SATA (HDD/SSD) max 240 TB
  • Up to 8 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 122.88 TB
  • Up to 16 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 245.76 TB
  • Up to 16 x EDSFF E3.S Gen5 NVMe (SSD) max 122.88 TB
  • Up to 24 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 368.64 TB
• Mid Bay: N/A
• Rear Bay:
  • Up to 2 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 30.72 TB
  • Up to 4 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 61.44 TB

Storage Controllers:

• Internal Controllers:
  • PERC H965i, PERC H755, PERC H755N, PERC H355, HBA355i
• External Controllers:
  • HBA355e, PERC H965e
• Software RAID:
  • S160
• Internal Boot:
  • Boot Optimized Storage Subsystem (BOSS-N1): HWRAID 2 x M.2 NVMe SSDs
• USB Support: Available

Security:

• Cryptographically signed firmware
• Secure Boot
• Secure Erase
• Silicon Root of Trust
• System Lockdown (requires iDRAC9 Enterprise or Datacenter)
• TPM 2.0 (FIPS, CC-TCG certified, TPM 2.0 China NationZ)
• Secured Component Verification (hardware integrity check)
• Data at Rest Encryption (SEDs with local or external key management)

Management:

• Embedded / At-the-Server:
  • iDRAC9
  • iDRAC Direct
  • iDRAC RESTful API with Redfish
  • iDRAC Service Module
  • Quick Sync 2 wireless module
• Consoles:
  • OpenManage Enterprise
  • OpenManage Power Manager plugin
  • OpenManage Service plugin
  • OpenManage Update Manager plugin
  • CloudIQ for PowerEdge plugin
  • OpenManage Enterprise Integration for VMware vCenter
  • OpenManage Integration for Microsoft System Center
  • OpenManage Integration with Windows Admin Center
• Mobility:
  • OpenManage Mobile
• Tools:
  • iDRAC RESTful API with Redfish
  • IPMI
  • RACADM CLI
  • Dell System Update
  • Enterprise Catalogs
  • Dell Repository Manager
• OpenManage Integrations:
  • BMC Truesight
  • Microsoft System Center
  • OpenManage Integration with ServiceNow
  • RedHat Ansible Modules
  • Terraform Providers
  • VMware vCenter and vRealize Operations Manager

Power Supplies:

• 3200 W Titanium 277 VAC or 336 HVDC, hot swap redundant
• 2800 W Titanium 200–240 HLAC or 240 HVDC, hot swap redundant
• 2400 W Platinum 100–240 VAC or 240 HVDC, hot swap redundant
• 1800 W Titanium 200–240 HLAC or 240 HVDC, hot swap redundant
• 1400 W Platinum 100–240 VAC or 240 HVDC, hot swap redundant
• 1400 W Titanium 277 VAC or 336 HVDC, hot swap redundant
• 1100 W Titanium 100–240 VAC or 240 HVDC, hot swap redundant
• 1100 W -(48–60) VDC, hot swap redundant
• 800 W Platinum 100–240 VAC or 240 HVDC, hot swap redundant
• 700 W Titanium 200–240 HLAC or 240 HVDC, hot swap redundant

Fans:

• Up to 6 fans

Ports:

• Network Options:
  • 2 x 1GbE LOM card (optional)
  • 1 x OCP card 3.0 (optional)

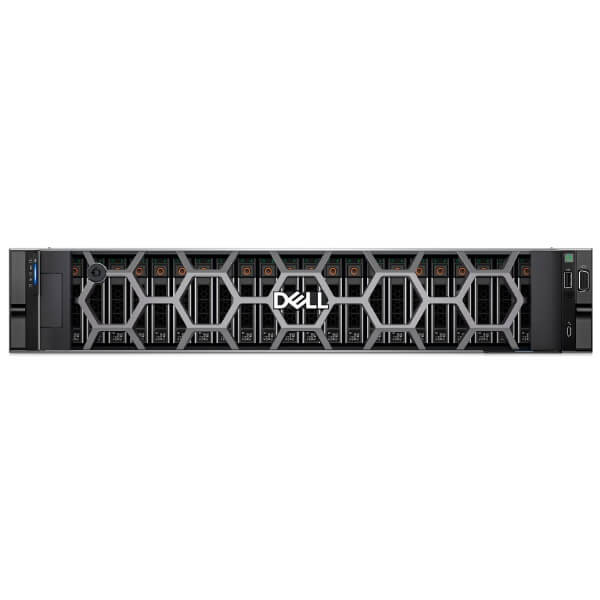

• Front Ports:
  • 1 x iDRAC Direct (Micro-AB USB) port
  • 1 x USB 2.0
  • 1 x VGA

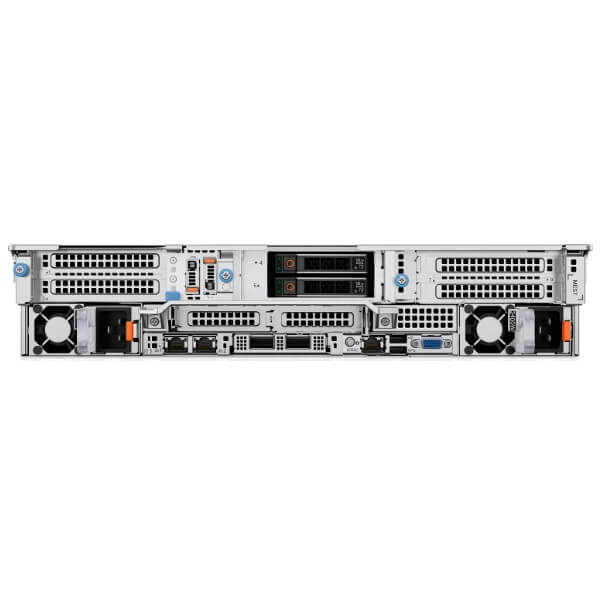

• Rear Ports:
  • 1 x Dedicated iDRAC Ethernet port
  • 1 x USB 2.0
  • 1 x USB 3.0
  • 1 x Serial (optional)
  • 1 x VGA (optional for Direct Liquid Cooling configuration)
• Internal Ports:
  • 1 x USB 3.0 (optional)

Slots:

• PCIe: 8 PCIe slots with varying configurations (Gen4/Gen5 compatibility)

Video:

• 1 x VGA

Bezel:

• Optional LCD bezel or security bezel

Form Factor;

• 2U rack server

Dimensions & Weight:

• Height: 86.8 mm (3.41 inches)
• Width: 482 mm (18.97 inches)
• Depth (with bezel): 772.13 mm (30.39 inches)
• Depth (without bezel): 758.29 mm (29.85 inches)
• Weight: Max 36.1 kg (79.58 lbs.)

Rack Support:

• ReadyRails™ II sliding rails with optional cable management arm (CMA) and strain relief bar (SRB) for 4-post racks
• Combo (Drop-in/Slide-in) rails with optional CMA and SRB for 4-post racks
• ReadyRails static rails for 4-post and 2-post racks(Note: CMA not supported in Direct Liquid Cooling configuration).
