Description

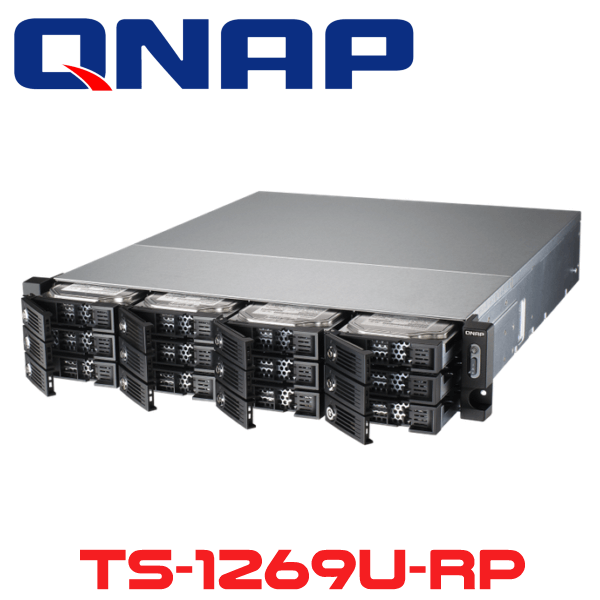

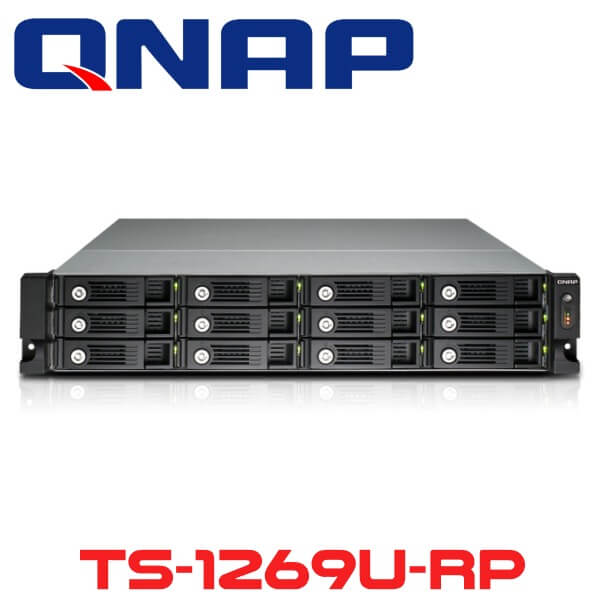

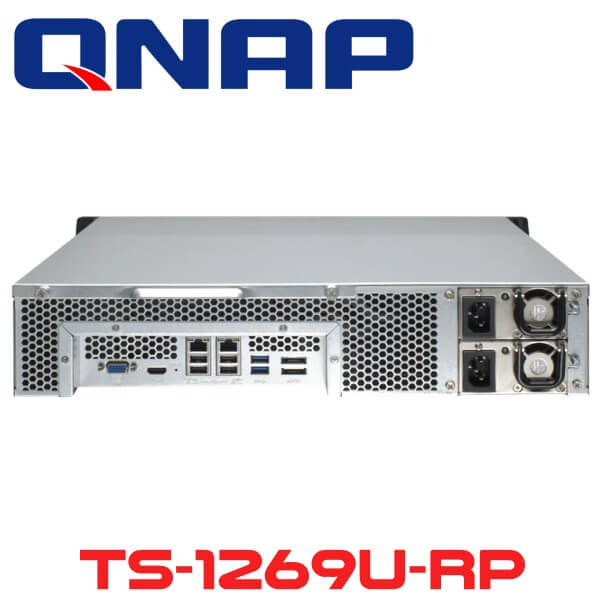

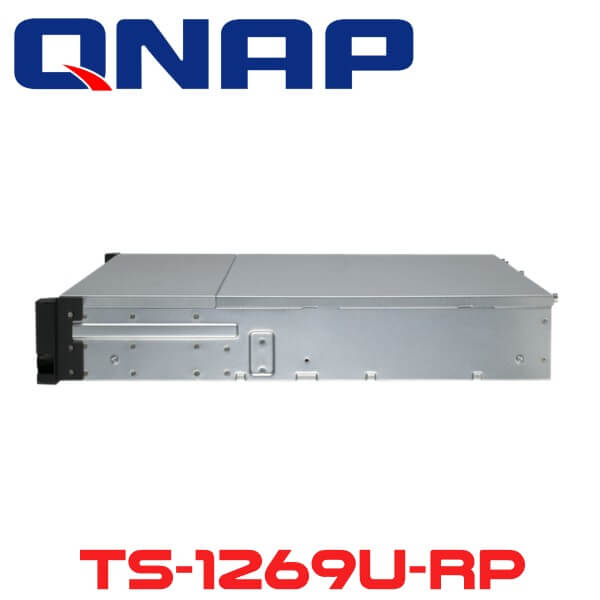

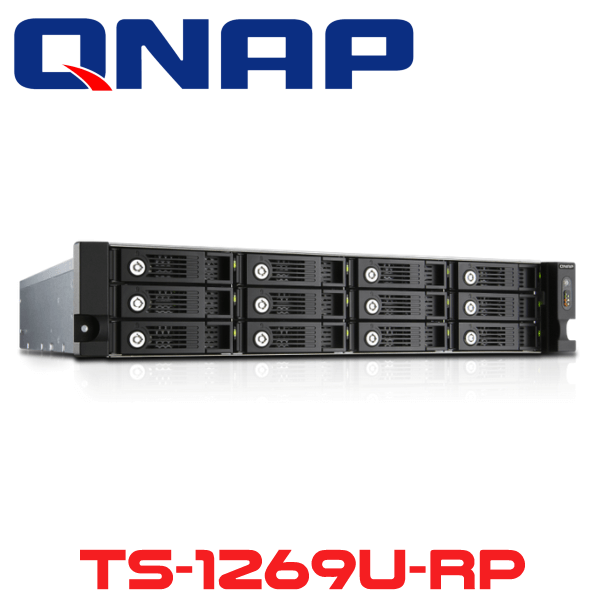

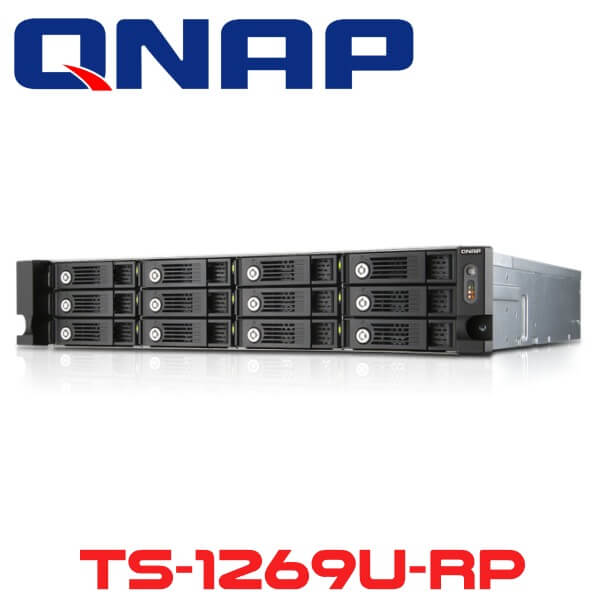

Qnap TS-1269U-RP Kenya
The Qnap TS-1269U-RP Kenya is 12-Bay NAS Server, the all-in-one NAS server that delivers exceptional performance to meet the storage requirements of modern SMB IT environments. Qnap TS-1269U-RP offer a secure-platform file sharing for Windows, Mac and Linux/Unix users, an iSCSI/IP-SAN storage combo solution and a number of versatile, value-added business applications. With a well-rounded set of backup solutions integrated in the 12-Bay NAS Server, critical business information can be safely protected against unexpected data loss. The 12-Bay NAS Server is also an ideal shared storage solution for virtualized and clustered environments with VMware Ready and Citrix Ready certifications, and has proven compatibility with Microsoft Hyper-V environments.
The Qnap TS-1269U-RP Kenya is a cost-effective networked storage center incorporating high reliability and scalability. Featuring cross-platform file sharing, comprehensive backup solutions, iSCSI and virtualization applications, and many other practical business applications, the TS-1269U-RP is the ideal choice for SMBs to store and secure the growing business data as a reliable private cloud.
Key Features
- Manage and share files in one centralized storage.
- Back up business data with encrypted remote replication, Real-time Remote Replication (RTRR), and cloud-based storage backup.
- Utilize NAS, iSCSI/ IP-SAN storage combo solution for server virtualization
- Facilitate iSCSI and virtualization deployment.
- Increase efficiency with the support of Windows AD/LDAP, Windows ACL, and more.
- Synchronize files between computers, tablets, and mobile devices.
Comprehensive virtualization support
Qnap TS-1269U-RP Kenya features VMware® Ready™, Citrix® Ready™, compatible with Microsoft® Hyper-V™ certification and Windows Server 2012, and supports advanced functions including SPC-3, MPIO and MC/S, enabling flexible deployment and management for virtualization needs. The TS-1269U-RP supports VMware VAAI and Microsoft ODX to increase performance by offloading ESXi server loading, and supports QNAP vSphere Client plug-in and QNAP SMI-S provider to provide enhanced operational efficiency in managing virtualization applications.
Dropbox-like file sync across devices
Qnap TS-1269U-RP Kenya boasts of Qsync, to ensure safe data center for file synchronization. Every file uploaded to the Qnap TS-1269U-RP will be made available for all linked devices including computers, laptops and mobile devices. Qsync is especially useful for frequent travelers as it ensures the most up-to-date files are accessible on all linked devices. Qsync provides multiple ways of file synchronization and group file sharing, greatly enhancing the flexibility of team projects and collaboration.
Convenient private cloud Storage
Qnap TS-1269U-RP Kenya provides a secure and large-capacity private cloud. myQNAPcloud service allows remote access to the TS-1269U-RP from anywhere. You can easily get access to the TS-1269U-RP, instantly share multimedia contents and check the system status via the Internet whether you are on the bus or in a coffee shop.
Windows AD / LDAP support
The support of Windows AD and LDAP Directory Service saves a great amount of time for account management and authentication. Users can use their Windows AD or LDAP server account and password to log into the Turbo NAS allowing Qnap TS-1269U-RP Kenya also serve as an LDAP server.
Backup solutions for data
QNAP Netbak Replicator supports real-time and scheduled data backup on Windows including Outlook email archiving. Apple Time Machine is also supported to provide Mac OS X users with an effortless solution to back up data to Qnap TS-1269U-RP Kenya. A wide range of third-party backup software such as Acronis True Image and Symantec Backup Exec are also supported.
Data recovery solutions
Qnap TS-1269U-RP Kenya is equipped with various data recovery options. RTRR (Real-Time Remote Replication) supports real time or scheduled data backup to remote Turbo NAS or FTP servers and synchronizes files to remote folders from local folders with better backup efficiency and reduced backup time. Qnap TS-1269U-RP also supports rsync protocol to back up data to remote servers on a scheduled basis. Data can also be backed up to and restored from a range of cloud storage services, including Amazon® S3, ElephantDrive®, Symform®, Dropbox® and Google® Drive.
High security
In an open network environment, business where data may be exposed to potential hackers, Qnap TS-1269U-RP Kenya provides numerous security options, such as encrypted access, IP blocking, and other protective features. IT administrators can also control the access rights of each user to different folders, preventing unauthorized access to important files. The TS-1269U-RP is validated with military-grade FIPS 140-2 AES 256-bit encryption, preventing unauthorized users to access data even if the hard drives or entire system were stolen.
Flexible storage expansion options
The Qnap TS-1269U-RP Kenya supports large storage capacities; fulfilling business needs to store large amounts of data. It also supports comprehensive RAID management, online RAID capacity expansion, and flexible RAID migration to safely store important data therefore reducing the risks of data loss. With reliable data protection, the TS-1269U-RP is perfect for cross-platform data sharing.
A surveillance solution 24/7
The Surveillance Station turns Qnap TS-1269U-RP Kenya into a professional surveillance solution with the user-friendly management interface, a wide range of compatible IP camera models, and expandable IP camera channel licenses. It also supports real-time monitoring, recording & playback with a wide range of customizable settings, and with the VMobile app on your iOS® or Android™ devices you can manage the monitoring of cameras anytime, anywhere, for total surveillance of your monitored environment.
Access, sync and share to Smartphones and PCs
Qnap TS-1269U-RP Kenya is your private cloud storage that virtually enlarges the capacity of your smart mobile devices. Qfile allows you to access, upload, download, manage, and share stored files easily as if you are carrying tons of files in your pocket. The Qfile app for iOS also allows users to browse videos and photos stored on the TS-1269U-RP and play on the TV via AirPlay. Qmanager lets you monitor and manage the TS-1269U-RP remotely and efficiently without turning on a PC.
Easy Installation
Qnap TS-1269U-RP Kenya provides system installation without using a CD. Simply visit the setup portal start.qnap.com and follow the setup guide to complete the system setup and download the utilities you want. For beginners, the TS-1269U-RP features an “Auto Setup” option to provide an easy way to set up the TS-1269U-RP with recommended settings. All settings can be flexibly changed at a later time after the installation.
Flexible & diverse and simple
Supporting SATA 6Gb/s and 3Gb/s hard drives and various 3.5”/2.5” hard drives and SSDs, the TS-1269U-RP provides users with high flexibility in selecting hard drives. The various inbuilt I/O ports help accommodate different peripherals, including external storage devices and printers. Meanwhile, the TS-1269U-RP allows file sharing and storage on different operating systems, such as Windows, Mac, Linux and UNIX. The simplified system setup process and the friendly-designed graphical user interface enable anyone to easily build up a business private cloud even without IT expertise. The TS-1269U-RP has flexible and diverse features, but is simple to use.
Install apps on demand to extend NAS functionality
The QNAP App Center provides a wide range of apps developed by QNAP and third-party developers, including tools for backup/sync, business, content management, communications, download, entertainment, and much more. The App Center is a centralized location for installing, managing, and updating apps on demand. In addition, QNAP’s development platform embraces the open-source spirit to enable developers to create their own apps, adding potentially limitless opportunities for the TS-1269U-RP.
High performance
Qnap TS-1269U-RP Kenya is a 12-bay IP SAN/NAS unified storage, for small and medium businesses. Featuring a powerful Intel® Atom™ 2.13GHz Dual Core Processor and 2GB DDR3 RAM (expandable to 3GB), the Qnap TS-1269U-RP provides high efficiency for CPU-consuming tasks and serves more concurrent tasks at the same time with up to 222 MB/sec Read, 223 MB/sec Write
Flexible Management
The NAS server supports multiple LUNs (Logical Unit Numbers) and iSCSI targets. The LUNs can be flexibly mapped to, unmapped from and switched among different iSCSI targets
Secure Deployment
Designed with CHAP authentication and LUN masking, the advanced ACL (Access Control List) offers the capability to block unauthorized access from the initiators
File Server
The NAS server provides seamless file sharing cross Windows, Mac, Linux and UNIX platforms. It also supports WebDAV for easy access to shared folders via HTTP/HTTPS protocol remotely
FTP Server
The IT administrator can establish an FTP server with the NAS server and share files conveniently with colleagues or customers
Backup Center
The NAS server offers a centralized backup center for Mac users using Time Machine and Windows users using QNAP NetBak Replicator utility
Web Server
The IT administrator can host multiple websites on the NAS server with the built-in web server and virtual host feature
RADIUS Server
The RADIUS server centralizes and consolidates user authentication by maintaining a list of user accounts that are authorized for remote network access through dial-up equipment, Wi-Fi access point or VPN connections
Syslog Server
The RADIUS server centralizes and consolidates user authentication by maintaining a list of user accounts that are authorized for remote network access through dial-up equipment, Wi-Fi access point or VPN connections. By collecting and storing the logs of other network devices on the NAS server with the Syslog server feature, the IT administrator can easily monitor the status of these devices and troubleshoot problems when necessary
Printer Server
The NAS server offers printer sharing over the network and remote printing over the Internet via IPP (Internet Printing Protocol). Print job management and Bonjour printing for Mac OS X are also supported
Surveillance Station Pro
The Surveillance Station Pro supports over 1,400 IP cameras, ranging from high-end to low-end models and is compatible with ONVIF specifications. Administrators can purchase additional licenses to increase the number of channels based on their surveillance needs. iOS and Android users can install the VMobile app to monitor the surveillance channels anytime and anywhere with the functions of camera live view, motion-detection recording, PTZ control, instant event notifications, video snapshot and advanced playback and search functions
IPv6
The NAS server supports IPv6 (Internet Protocol Version 6) which makes the NAS a dual-stack IP host running IPv4 and IPv6 at the same time
VPN Server
The VPN (Virtual Private Network) service allows you to access the NAS and other resources on the same local network from the Internet
LDAP Server
LDAP Server service allows devices with LDAP protocol enabled to be joined in the directory and share the same user accounts and groups
Software Expansion via QPKG Center
QPKG Center is a software expansion platform to install third-party software on QNAP NAS. Instead of abstruse Linux command line installation process, QPKG center facilitates the operation by providing one-click installation
Proxy Server
With the help of Squid QPKG, the QNAP NAS server can be used as a proxy server. Internet cache speeds up web browsing; web filtering and monitoring enhances business Internet security
Private Cloud Storage
The NAS server helps you reap all the benefits of cloud computing. A private cloud for business use can be built easily. This cloud provides flexible ways for data access, sharing and backup, virtually anytime, anywhere
MyCloudNAS Service
The MyCloudNAS service simplifies the process of publishing contents in the NAS server over the Internet. It provides a web-based portal for file management and access, and supports backing up important data from the NAS server to other cloud storage providers such as Amazon S3, ElephantDrive and Symform
Email Invitation
The MyCloudNAS service provides an easy way to send out an email invitation to friends. The invitation contains step-by-step instructions on accessing the server. It also provides a link to download the Windows application MyCloudNAS Connect, which allows you to easily set up and connect to the NAS server even without proficient networking skills
Mobile Apps for On-the-Go Access and Monitoring
Qfile is an app that allows you to browse and manage files on the Turbo NAS. The Qmanager app turns your mobile devices into a remote control and helps monitor and manage the Turbo NAS. The terabytes of photos, music and videos stored on the Turbo NAS are ready to be streamed by Qmobile from anywhere regardless of the actual storage size of the mobile devices. Qmobile also provides a convenient way for uploading photos from the mobile devices to the Turbo NAS for instant sharing
Advanced RAID Management with Hot-Swap Design
The NAS server offers RAID 0, 1, 5, 6, 10, 5+hot spare, single and JBOD disk configurations. It also supports hot-swap design so that a failed member drive of a RAID configuration (RAID 1 or above only) can be replaced by hot swapping without turning off the server
Online RAID Capacity Expansion
The storage capacity of a RAID configuration can be expanded by replacing larger hard drives. All the data will be kept and seamlessly moved to the newly installed hard drives without turning off the server
Online RAID Level Migration
You can upgrade the disk configuration to a higher RAID level with the data retained, without turning off the server
IP-SAN/ iSCSI Storage and Virtual Disk Drives (VDD) for Storage Expansion
The NAS server provides a cost-efficient iSCSI solution to set up an IP-SAN storage. With the built-in iSCSI initiator, the NAS server can also connect to other iSCSI targets over the network and turn them into virtual disk drives (VDD)
Instant SMS and Email Alert
Configure the SMTP server and SMS server settings on the Turbo NAS in order to receive instant system warning or error messages via email and SMS
Qnap TS-1269U-RP Kenya Specifications
CPU | Intel® Atom™ 2.13GHz Dual-core Processor |
DRAM | 2GB RAM (Expandable RAM, up to 3GB) NOTE: 1. The system memory can be increased to maximum 3GB by installing an additional 1GB DDR3 SO-DIMM RAM module. 2 .For the information of RAM module installation and compatible NAS models, please refer to the QNAP RAM Module Installation Guide |
Flash Memory | 512MB DOM |
Hard Disk Drive | 12 x 3.5” or 2.5” SATA 6Gb/s, SATA 3Gb/s hard drive or SSD NOTE: 1. The system is shipped without HDD. |
Hard Disk Tray | 12 x Hot-swappable tray with key lock |
LAN Port | 2 x Gigabit RJ-45 Ethernet port |
LED Indicators | Status, LAN, USB, HDD 1 – 12 |
USB | 2 x USB 3.0 port (rear) 4 x USB 2.0 port (rear) Support USB printer, pen drive, USB hub, and USB UPS etc. |
eSATA | 2 x eSATA port (rear) |
Buttons | Power, Reset |
Alarm Buzzer | System warning |
Form Factor | 2U, Rackmount |
Dimensions | 89 (H) x 482 (W) x 534 (D) mm 3.5 (H) x 18.98 (W) x 21.02 (D) inch |
Weight | 16.14 kg / 35.58 lb (Net) 18.98 lg/ 41.84 lb (Gross) |
Power Consumption (W) | Sleep mode: 66.8W In Operation: 81.2W Power-off (in WOL mode): 1W (with 4 x 1TB HDD installed) |
Temperature | 0-35˚C |
Humidity | 0~95% R.H. |
Power Supply | Input: 100-240V AC, 50/60Hz, Output: Redundant 380W |
Secure Design | K-lock security slot for theft prevention |
VGA | Reserved for maintenance |
HDMI | Reserved for maintenance |
Fan | 2 x quiet cooling fan (7 cm, 12 VDC) |
