Description

Qnap TS-412U Kenya

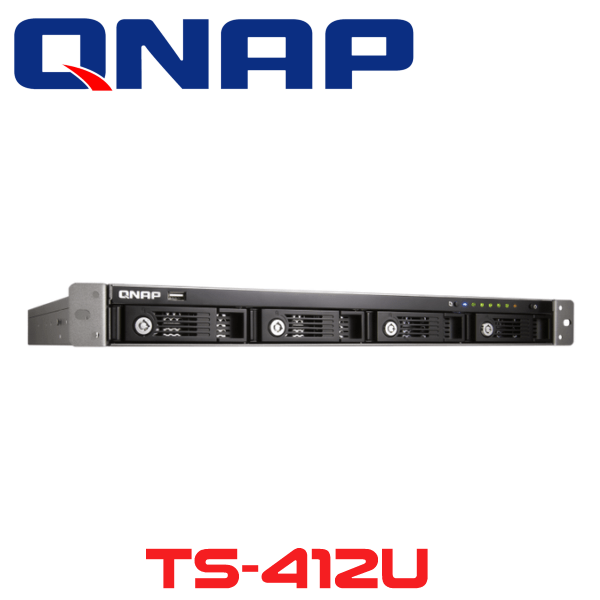

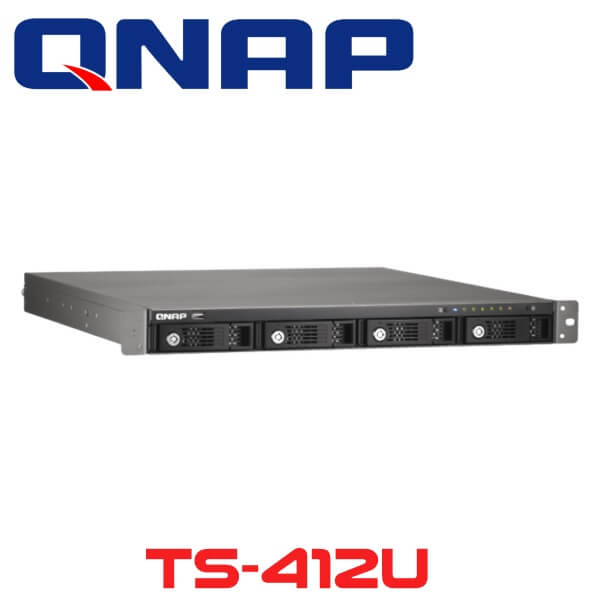

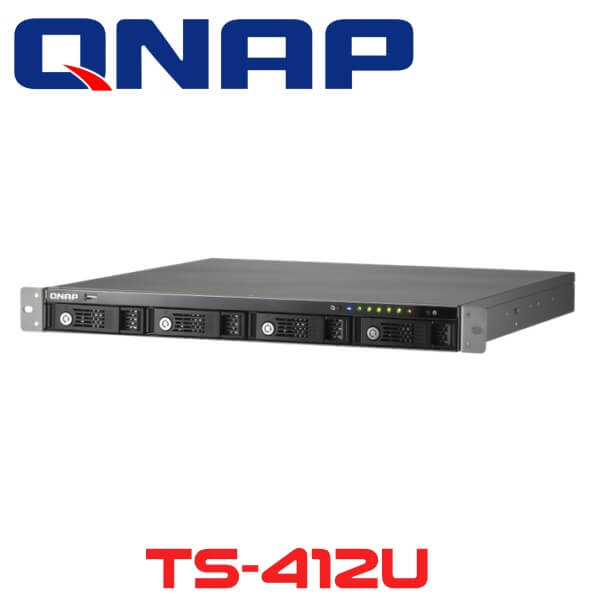

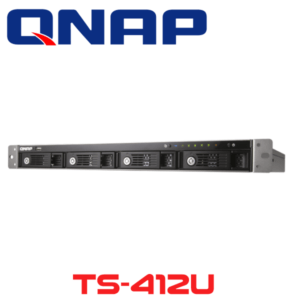

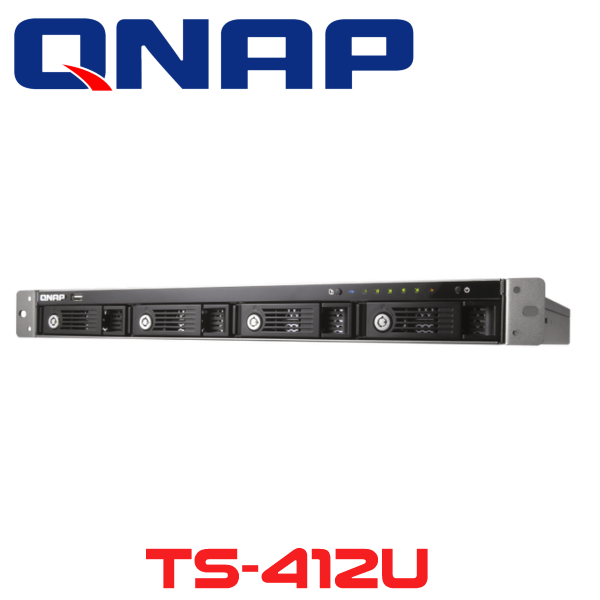

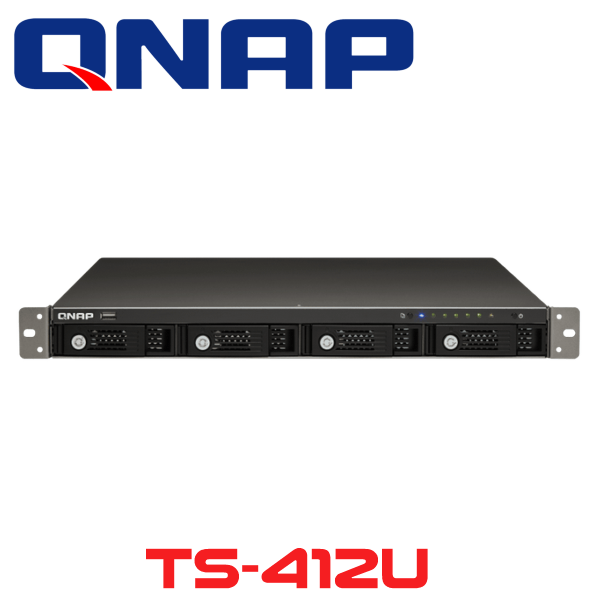

The QNAP TS-412UKenya is a Turbo NAS 4-drive 1U rack-mounted network attached storage (NAS) server optimized for small and medium business who are looking an affordable yet high performance network storage solution. This enclosure features four hard disk drive bays that accommodate 2.5″ or 3.5″ SATA II or I hard disk drives. You can scale up to a maximum of 12TB of storage, with each drive being 3TB in capacity. With whatever capacity drives you install, you can use the NAS to store your media and other files in a centralized location and access it from any computer or other device on your network. If you want to host websites, backup data, share data across different platforms, and much more, this server is a particularly affordable solution.

The Qnap TS-412U Kenya incorporates an embedded Marvell 1.2GHz CPU and 256MB DDRII memory, delivering high speed throughput. The Qnap TS-412U Kenya works with 2.5-inch or 3.5-inch SATA hard drives mounted in hot-swappable drive carriers and includes two Gigabit LAN ports for multi-IP settings and port trunking (7 bonding modes). The TS-412U is also is equipped with 4 USB ports and 2 eSATA ports for storage expansion or external data backup.

The Qnap TS-412U Kenya supports abundant powerful applications which can be accessed across Windows, Mac, Linux, and UNIX. Also, numerous management tools, such as Windows Active Directory (AD), real-time system monitoring, detailed event logs, Simple Network Management Protocol (SNMP), instant SMS alert, Wake on LAN, and scheduled power on/off management are provided for the users to manage the NAS efficiently. The Qnap TS-412U Kenya is easily installed in the server room and configured for up to 12TB (using 3TB hard drive) of online storage. The TS-412U is an ideal solution for centralized data backup, cross-platform file sharing, website hosting, and much more. Moreover, the TS-412U offers exceptionally low power consumption, maximum system reliability & expandability, and numerous business-critical applications.

Key Features

Wireless LAN

Qnap TS-412U Kenya supports USB wireless dongles for flexible and secure deployment in wireless network environment. You can securely connect the NAS to a wireless network with a compatible b/g/n USB Wi-Fi adapter

Built-in iSCSI/IP SAN Target Service

Qnap TS-412U Kenya supports NAS and iSCSI applications to provide a low-cost, highly flexible and efficient IP SAN solution for SMB users. iSCSI targets can be created on the NAS for storage expansion of the PC or other servers and backup destination of the database servers and mail servers, etc. The Qnap TS-412U Kenya can be used to connect to other iSCSI devices on the network and add them as virtual disk drives (VDD) to expand the storage capacity of the NAS.

Remote Replication by Rsync

The data stored on the Qnap TS-412U Kenya can be remotely backed up to another QNAP Turbo NAS or to Rsync servers by Rsync over the network

Apple Time Machine Backup and Management

Mac users can back up data from MacBooks to the NAS via Time Machine. This feature largely saves the storage space of your MacBooks. You can also specify the storage space dedicated to Time Machine backup on the Qnap TS-412U Kenya and manage the backup data easily via the web-based administration interface

One-Touch-Copy Backup

Qnap TS-412U Kenya allow you to configure the one-touch-copy button on the front of the server to copy the data to an external storage device or vice versa. The NAS supports EXT3, EXT4, NTFS, and HFS+ file systems for high speed data transfer and enhanced compatibility between the NAS and Windows or Mac OS X

Advanced RAID Management with Hot-swap Design

Qnap TS-412U Kenya offers RAID 0, 1, 5, 6, 10, 5 + hot spare, single, and JBOD disk configurations. It also supports hot-swap design that a failed member drive of a RAID configuration (RAID 1 or above only) can be replaced by hot swapping without turning off the server.

Online RAID Capacity Expansion

The storage capacity of a RAID disk volume of the NAS can be expanded by replacing the hard drives with larger ones. All the data will be kept and seamlessly moved to the newly installed hard drives. There is no need to turn off the server during the process.

Virtual Disk Drive (VDD)

The Qnap TS-412U Kenya supports flexible storage expansion by stacking other iSCSI targets on the network via its built-in iSCSI initiator. The connected iSCSI targets are turned into “virtual disk drives” of the NAS to provide more storage capacity.

Built-in iSCSI/IP-SAN Target Service

The Qnap TS-412U Kenya is both a NAS and an iSCSI target server, ideal for cost-efficient IP-SAN setup. You can make use of the built-in iSCSI target service to add up to 256 iSCSI devices. Different iSCSI Target LUNs (Logical Unit Number) can be defined as storage expansion or backup destination of the existing application servers, such as database servers and mail servers. Also, the Virtual Space Allocation  feature is provided which allows you to flexibly allocate the capacity of iSCSI LUN (Logical Unit Number). When the physical storage capacity of the volume is going to be full, you can easily expand the storage capacity by online RAID capacity expansion or adjust/ remove the current unused volume space.

Complete Data Backup Solution

The Qnap TS-412U Kenya offers complete backup solution for data protection, including cloud-based storage backup (Amazon S3, ElephantDrive), Apple Time Machine support, encrypted remote replication, third party software backup, one-touch-copy backup and QNAP exclusive Windows-based utility NetBak Replicator.

Network UPS

This feature allows multiple Turbo NAS servers on the same physical network to be protected by a single UPS by receiving UPS notification about an abnormal power supply

Automatic Power on after Power Recovery

You can configure the NAS to turn on automatically after the system resumes operation after a power loss

Web Server

You can host multiple websites on a Turbo NAS with the built-in web server and virtual host feature

Surveillance Station

You can connect to multiple IP cameras via Turbo NAS and set up a video surveillance system with comprehensive monitoring, recording, and playback features

IPv6

The Qnap TS-412U Kenya supports IPv6 (Internet Protocol Version 6) which makes your NAS a dual-stack IP host running IPv4 and IPv6 at the same time

Qnap TS-412U Kenya Technical Specification
