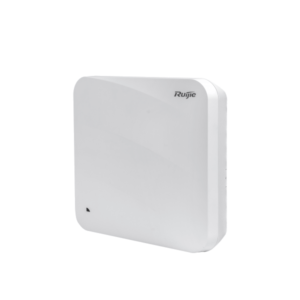

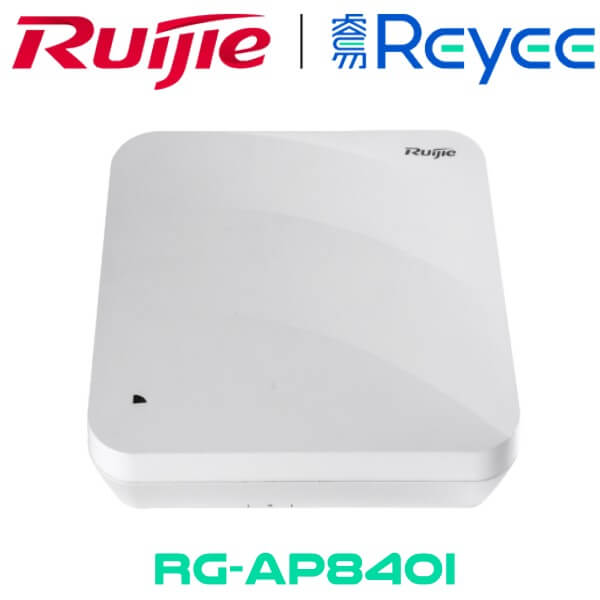

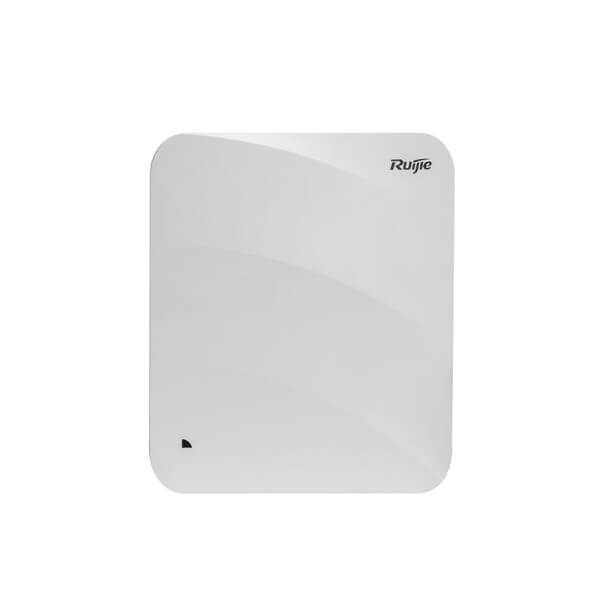

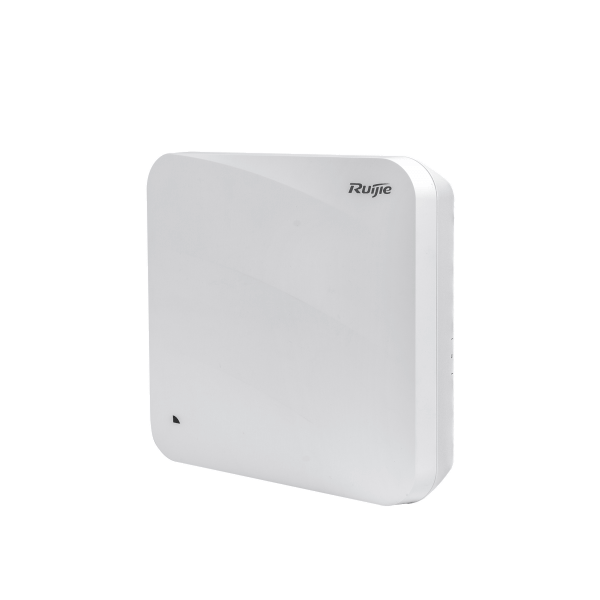

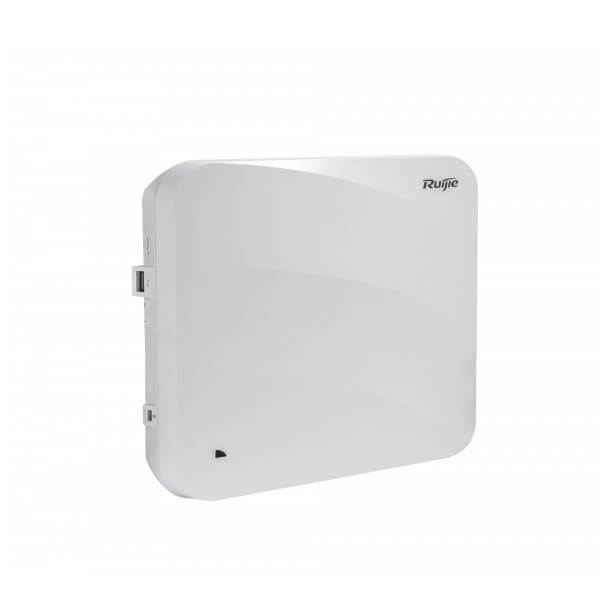

Ruijie RG-AP840I Kenya is a high-performance Wi-Fi 6 enterprise AP designed for the majority of indoor scenarios. With the built-in IoT module, enterprise customers can be ready for future IoT expansion to boost the operational efficiency and customer experience

Description

Ruijie RG-AP840I WiFi6 Indoor Access Point Kenya

Ruijie RG-AP840I Kenya is a high-performance Wi-Fi 6 enterprise AP designed for the majority of indoor scenarios. With the built-in IoT module, enterprise customers can be ready for future IoT expansion to boost the operational efficiency and customer experience. The Ruijie RG-AP840I Kenya supports concurrent dual-band dual-radio (2×2:2 in 2.4GHz, 4×4:4 in 5GHz), up to 6 total spatial streams and a maximum of 5.2Gbps wireless throughput. Taking the advantage of Wi-Fi 6 OFDMA Modulation, MU-MIMO, and BSS Color Spatial Reuse, the RG-AP840I guarantees minimal signal interference and a maximum of 1024 client connections. Including lifetime license of Ruijie Cloud Service. Ruijie RG-AP840I Kenya is the next-generation flagship wireless AP launched by Ruijie to support the latest 802.11ax protocol for indoor scenarios of higher education, government, primary and secondary education, finance, and commercial sector. With dual radio technology, the AP offers an access rate of up to 400Mbps for 2.4G and an access rate of up to 4.8Gbps for 5G. The AP provides 5.2 Gbps wireless access rate, which eliminates the bottleneck for ultra-fast wireless performance.

With wireless network security, radio frequency control, mobile access, QoS guarantee, seamless roaming and other important factors considered, the RG-AP840-I can be implemented with Ruijie wireless controller to achieve user data forwarding. wireless, security and access control. The Ruijie RG-AP840I Kenya supports simultaneous operation in 802.11ax, 802.11ac Wave 2, 802.11ac Wave 1, and 802.11n modes. With wall and ceiling mount options, the AP can be safely and conveniently installed in various positions, such as walls and ceilings. The Ruijie RG-AP840I Kenya supports local power supply and PoE, which can be flexibly selected according to the power supply environment of the customer site. It is especially suitable for deployment in large campuses, corporate offices, and other high-density scenarios.

Features

High-reliability 3-port design

With the 3 network port design, the Ruijie RG-AP840I Kenya not only solves the problem of interface data backup, but also provides flexible network modes for networks that require internal and external network isolation. LAN3 port also supports external power supply for PSE and other module expansion such as IoT to enrich application scenarios.

1024-QAM high-speed access rate

The Ruijie RG-AP840I Kenya adopts dual radio dual-band design, and 2G + 5G is recommended. With next generation 802.11ax for 5G, the maximum access can reach 4.8Gbps. If dual radio is enabled at the same time, high-speed Wi-Fi can reach 5.2Gbps, offering the true high-speed experience.

OFDMA High Density User Access

The Ruijie RG-AP840I Kenya supports 802.11ax OFDMA, which divides the WLAN channel into a plurality of narrower sub-channels, with each user occupying one or more sub-channels. By scheduling multiple users to simultaneously receive and send packets through the AP, user competition and network delay can be reduced, improving network efficiency. In a high-density deployment and access environment, the average rate per user increases to four times that of 802.11ac.

BSS Color Spatial Multiplexing

The Ruijie RG-AP840I Kenya supports 802.11ax Basic Service Set (BSS) color spatial multiplexing to identify the BSSs of different WLANs in the network by different colors (BSS color) and divide them into internal and external BSSs. Different thresholds for receiving and sending packets can be maintained. When a packet is received, the BSS coloring is used to quickly determine the packet from the external BSS. If the signal strength is less than the receive threshold of the external BSS, the packet will be ignored. The internal BSS package will not be affected. This technology can implement channel multiplexing in a high-density scenario, greatly reducing the impact of co-channel interference on actual network deployment.

Energy saving design

The Ruijie RG-AP840I Kenya adopts advanced power-saving features including single-antenna standby technology, dynamic MIMO power-saving technology, automatic power-saving enhanced transmission technology, and per-packet power control technology. Together with the high-performance power supply design, the RG-AP840-I ensures high-speed wireless access while reducing power consumption.

Smart recognition function

The RG-AP840I supports smart terminal recognition, which can identify PCs and smart mobile terminals, including iOS and Android.

Industry leading local forwarding technology

Employing industry-leading local forwarding technology, the Ruijie RG-AP840I Kenya eliminates the traffic bottleneck of wireless controllers. In cooperation with the RG-WS series of wireless controllers, users can flexibly preset the data forwarding mode for RG-AP840-I. Local forwarding technology can determine whether to forward data to the wireless controller based on the user’s SSID or VLAN, or directly send the data to the wired network for data exchange. Local forwarding technology can forward real-time, delay-sensitive data transmissions over the wired network. Significantly relieves traffic pressure on wireless controllers and better meets the high-traffic transmission requirements of 802.11ax network.

Rich QoS Policies

The Ruijie RG-AP840I Kenya supports a wide range of QoS policies. For example, it provides bandwidth limitations in WLAN/AP/STA and Wi-Fi Multimedia (WMM) modes that defines different priorities for different service data. The RG-AP840-I realizes timely and quantitative transmission of audio and video and ensures smooth operation of multimedia applications. With multicast to unicast conversion technology, the RG-AP840-I solves the problem of video delay due to packet loss or long delay in wireless video on demand (VoD) system. The RG-AP840I greatly enhances the user experience with multicast video over wireless networks.

Secure user access

The Ruijie RG-AP840I Kenya supports a wide range of authentication methods, including web, 802.1x, MAC address, and local authentication. The standard network access control system has a set of control policies in terms of user access, authorization, equipment compliance checking, network behavior monitoring, network attack prevention, etc. All of these control features ensure that users are authenticated before accessing network services securely.

Virtual AP technology

With virtual AP technology, the Ruijie RG-AP840I Kenya supports up to 48 ESSIDs. The network administrator can encrypt and isolate separate VLANs or subnets with the same SSID. In this way, the implementation enables the specified authentication mode and encryption mechanism for each SSID.

Complete wireless protection

Together with the RG-SNC and RG-WS wireless controllers, the Ruijie RG-AP840I Kenya offers a wide range of security features including WIDS (Wireless Intrusion Detection System), RF jamming tracking, rogue AP containment, anti-ARP spoofing, DHCP protection and more. for comprehensive security protection.

Various user-friendly authentication options

Implemented with Ruijie or multi-service AC authentication system, the RG-AP840I supports convenient Protected Extensible Authentication Protocol (PEAP), SMS authentication and QR code authentication. If users authenticate through PEAP, they only need to perform password authentication once. That means they only need to enter user credentials during their initial visit to the network.

Flexible switching between FAT/FIT (Stand-Alone /Controlled) modes

The Ruijie RG-AP840I Kenya supports flexible switching between FAT and FIT modes according to the network requirements of different industries. In FIT mode, installation can be completed without configuration, and comprehensive remote management significantly improves the efficiency of wireless network operation, maintenance, and management.

Web administration interface

The Ruijie RG-AP840I Kenya provides a web management interface for ACs and APs. Not only wireless settings can be easily implemented, but the entire wireless network can also be operated through the interface. Users can not only manage access points and connected users through the CA web interface, but can also limit the user’s speed and connection to the network, making it easier for IT staff to plan, operate and maintain the wireless network.

Network management software

The Ruijie RG-AP840I Kenya can be deployed with Ruijie SNC network management software, which enables management of all wireless controllers and wireless APs in the network, including device configuration backup, status monitoring of the device and the wireless heat map to show the wireless signal distribution of wireless access points in the real environment.

Specifications

Model  RG-AP840-I
Hardware specifications
Radio Dual-radio dual-band:

  • Radio 1: 2.4G 11n: 2×2 MIMO
  • Radio 2: 5G 11ax: 4×4 MIMO
Protocol Supports standard 802.11ax, dual-radio dual-band, concurrent 802.11ax and 802.11a/b/g/n/ac
Operating Bands
  • 802.11b/g/n :2.4G ~ 2.483GHz
  • 802.11a/n/ac/ax : 5.150~5.350GHz,5.47~5.725GHz,5.725~5.850GHz (vary depending on different countries)
Spatial Streams Up to 6: 2×2:2 in 2.4GHz , 4×4:4 in 5GHz
Max Throughput
  • Maximum throughput of 2.4G : 400Mbps
  • Maximum throughput of 5G : 4.8Gbps
  • Maximum throughput per AP : 5.2Gbps
Modulation
  • OFDM :BPSK@6/9Mbps,QPSK@12/18Mbps,16-QAM@24Mbps,64-QAM@48/54Mbps
  • DSSS :DBPSK@1Mbps,DQPSK@2Mbps,and CCK@5.5/11Mbps
  • MIMO-OFDM :BPSK, QPSK, 16QAM, 64QAM, 256QAM and 1024QAM

OFDMA (up to 1024-QAM)

Receiver Sensitivity
  • 11b:-96dBm(1Mbps),-93dBm(5Mbps),-89dBm(11Mbps)
  • 11a/g:-91dBm(6Mbps),-85dBm(24Mbps),-80dBm(36Mbps),-74dBm(54Mbps)
  • 11n:-90dBm(MCS0),-70dBm(MCS7),-89dBm(MCS8),-68dBm(MCS15)
  • 11ac HT20:-88dBm(MCS0), -63dBm(MCS9)
  • 11ac HT40:-85dBm(MCS0), -60dBm(MCS9)
  • 11ac HT80:-82dBm(MCS0), -57dBm(MCS9)
  • 11ax HT80:-82dBm(MCS0), -57dBm(MCS9), -52dBm(MCS11)
  • 11ax HT160:-80dBm(MCS0), -49dBm(MCS11)
Antenna Integrated antenna design
Antenna Gain
  • 2.4G: 3dBi
  • 5G: 3dBi
Service Ports 3 10/100/1000M Ethernet ports (The LAN1 Port supports PoE in, LAN3 Port supports LAN & IoT module expansion with PoE out)
Management Port 1 console port
USB 1 USB 2.0 port
IoT Capability BLE
Reset Button Support
Anti-theft Lock Support
LED Indicator 1 LED indicator (Supports red, green, blue, orange and flashing mode, which indicates device access. The indicator can be switched off to silent mode.)
Transmit Power ≤100mw(20dBm) (vary depending on different countries)
Adjustable Power 1dBm
Power Supply
  • Local power supply (DC 48V/1A)  (DC Power adapters should be purchased from third-party vendors separately if needed.)
  • PoE+ (802.3at)
  • PoE (802.3af) – Not recommended: 5G radio is degraded to 2×2 MIMO, and the PoE out of the LAN3/ IoT port is disabled
Power Consumption <25.4W
Physical Specifications
Temperature Operating Temperature : -10°C to 50°C
Storage Temperature : -40°C to 70°C
Humidity Operating Humidit y: 5% to 95% (non-condensing)
Storage Humidity : 5% to 95% (non-condensing)
Installation Mode Ceiling/wall-mountable
Dimensions (W x D x H) 220mm ×220mm x48.85mm(Height of the AP only, excluding the mount kit)
Weight 1.30kg
IP Rating IP41
MTBF 250,000 hours
Certifications and Compliance
Safety Standard GB4943, EN/IEC 60950-1
EMC Standard
  • GB9254, EN301 489
  • EN 55032 , EN 61000, EN 55035
Health Standard EN 62311
Radio Standard SRRC, EN300 328, EN301 893
Software Specifications
WLAN Maximum clients per AP 1024
BSSID capacity Up to 32
SSID hiding Support
5G Priority (Band Steering) Support
Configuring the authentication mode, encryption mechanism and VLAN attributes for each SSID Support
Remote Intelligent Perception Technology (RIPT) Support
Intelligent device recognition technology Support
Intelligent load balancing based on the number of users or traffic Support
STA control SSID/radio-based
Bandwidth control STA/SSID/AP-based bandwidth control
Data encryption WPA(TKIP), WPA-PSK, WPA2(AES), WPA3, WEP(64/128 bits)
PSK and web authentication Support
PPSK authentication (For Employee) Support (require wireless controller)
802.1x authentication Support
PEAP authentication Support
Data frame filtering Whitelist, static/dynamic blacklist
User isolation Support
Rogue AP detection and countermeasure Support
Dynamic ACL assignment Support
RADIUS Support
CPU Protection Policy (CPP) Support
Network Foundation Protection Policy (NFPP) Support
IP IPv4 and IPv6 address Support
Multicast routing Multicast to unicast conversion
DHCP service DHCP Snooping, Option 82, Server, Client
Management and Maintenance Supported wireless LAN controllers Ruijie WS Series Wireless Controller

Ruijie MACC-Base Software Controller

Ruijie Cloud (Public Cloud)

Management protocol Telnet, SSH, TFTP, Web
Wireless Intelligent AI Optimization Service (WIS) Support
SNMP SNMPV1,V2c,V3
Syslog / Debug Support
FAT/FIT/MACC mode switching Factory default firmware supports FAT (standalone) or FIT mode (WS controller) or MACC mode (Ruijie MACC-Base or Ruijie Cloud) management
