Description

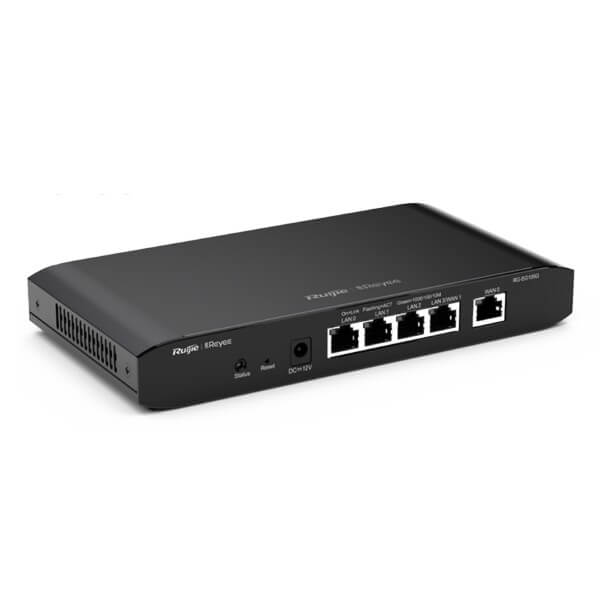

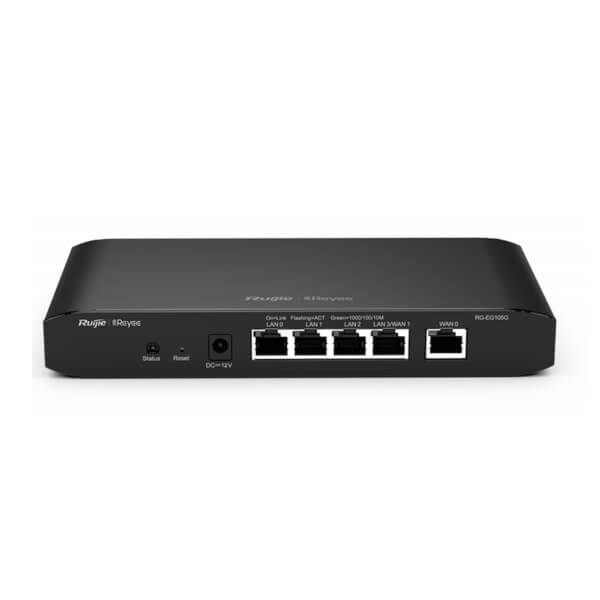

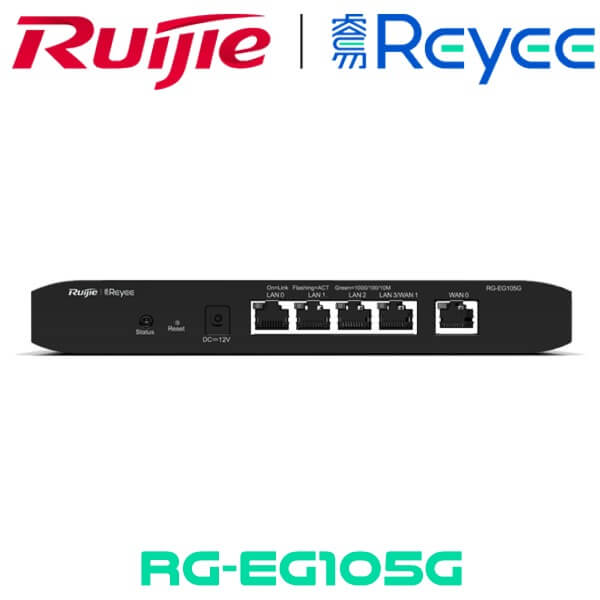

Ruijie Reyee RG-EG105G Router Kenya
Ruijie RG-EG105G Kenya is a cloud managed router designed for villas and smart home, restaurant, small offices, homestay hotel. Ruijie RG-EG105G Kenya is affordable, small and easy to use, comes with 500Mbps – 1Gbps bandwidth and supporting up to 200 terminals. Ruijie RG-EG105G Kenya can perform per-port VLAN configuration to achieve port isolation, and integrate with smart flow control to achieve comprehensive network planning and perform local and remote network diagnosis.
The built-in network controller of RG-EG105G V2 / RG-EG105G-P can centrally manage up to 32 Reyee APs and up to 128 Reyee cloud managed switches and RG-EG210G-P / RG-EG210G-E can manage up to 150 Reyee APs and up to 128 Reyee cloud managed switches. Ruijie RG-EG105G Kenya realizes the industry-leading auto-discovery and auto-networking features for gateways, switches and wireless, offering unified configuration, remote management and remote fault diagnosis of the entire network via the Ruijie Cloud app. When working on AC mode, Ruijie RG-EG105G Kenya can centrally manage up to 300 Reyee APs and up to 128 Reyee cloud managed switches and RG-EG210G-P / RG-EG210G-E can manage up to 500 Reyee APs and up to 128 Reyee cloud managed switches.
Features
- Auto-provisioning via self-organizing network
- Lifetime free Ruijie Cloud managed
- Multiple WAN Ports
- Full Gigabit port
- AC mode: Manage Reyee APs, saving cost
- Smart flow control: Intelligently adjusted each user bandwidth according to the access bandwidth
- IPSec VPN
- Enterprise Security features
- Curved surface metal design, sheet metal stretching integrated molding
- Port Isolation for security CCTV network
- Multiple WAN Policies
- Single-cable IPTV
- Copying the Dial-up Password
- Auto-provision via Self-organizing Network (SON) in 3 Minutes Using the App
- Network Management
- Wi-Fi Control
- Multiple Management Methods
- Network Planning
- Network Diagnosis
Specifications
Model | RG-EG105G | RG-EG105G-P | RG-EG210G-P |
Basic specifications | |||
Fixed ports | 5 10/100/1000M Base-T ports,supporting up to 2 WAN ports
(Default: 1 WAN port,4 LAN ports LAN3 can be switched to WAN1 port) |
5 10/100/1000M Base-T ports,supporting up to 2 WAN ports
(Default: 1 WAN port,4 LAN ports LAN3 can be switched to WAN1 port) |
10 10/100/1000M Base-T ports,supporting up to 4 WAN ports
(Default: 1 WAN port and 9 LAN ports LAN8, LAN7 and LAN6 can be switched to WAN ports) |
RAM | 128MB | 128MB | 256MB |
Flash | 16MB | 16MB | 16MB |
Maximum number of clients | Up to 100 concurrent clients | Up to 100 concurrent clients | Up to 200 concurrent clients |
Recommended bandwidth | 600M asymmetric bandwidth (flow control disabled)
500M asymmetric bandwidth (flow control enabled) |
500M asymmetric bandwidth (flow control disabled)
300M asymmetric bandwidth (flow control enabled) |
600M asymmetric bandwidth (flow control disabled)
500M asymmetric bandwidth (flow control enabled) |
Local power supply | Support 220V AC local power supply | ||
Power consumption | <6W | <60W (With PoE load) | <80W |
Basic network features | |||
Network access | PPPoE dial-up, DHCP client, static IP, automatic identification of access methods, automatic avoidance of WAN port address conflicts, MAC cloning, obtaining account passwords from existing routers | ||
Routing | Static routing, policy-based routing, carrier address routing, active/standby mode, load balancing based on source address, flow-based load balancing, port-based weighted load balancing of data streams | ||
Security | ACL, IP-MAC binding, MAC address filtering, dynamic ARP, static ARP binding, NAT, NAPT, port mapping | ||
Other protocols | DHCP Server, DHCP Client, DHCP Option43 / 138, DNS Client, DNS Server, DNS Proxy, TFTP, NTP, DDNS | ||
Gateway | |||
Application recognition |
|
||
Flow control | Support custom flow control policies, IP-based automatic bandwidth assignment | ||
Traffic audit | Real-time traffic audit, IP traffic visualization | ||
Behavior management | Time-based and IP policy-based access control, website filtering | ||
VPN | IPsec VPN (8 tunnels) server and client, L2TP, PPTP | ||
Authentication |
|
||
Wireless management | |||
Management capacity | In AC mode, the maximum management capacity is 300
In gateway mode, the maximum management capacity is 32 |
In AC mode, the maximum management capacity is 300
In gateway mode, the maximum management capacity is 32 |
In AC mode, the maximum management capacity is 500
In gateway mode, the maximum management capacity is 150 |
AP management | Support multi-SSID configuration, SSID hiding, channel setting, power setting, AP wired port setting, AP online upgrade, STA quantity setting, STA blacklist and whitelist | ||
Roaming | Support local forwarding roaming, Layer 2 roaming, Layer 3 roaming between APs, viewing of STA roaming track | ||
Switch management | |||
Management capacity | Maximum manageable cloud managed switches: 128 | ||
Port management | Loop protection, port mirroring, port isolation, port configuration, PoE configuration, port limit, storm control, static MAC, MAC search | ||
Status display | Port statistics, monitoring information, cable detection, VLAN configuration, MAC list | ||
Upgrademanagement | Per-device upgrade, batch upgrade | ||
Value added features | |||
Featured solutions | Single-cable IPTV solution, port service VLAN and network segment isolation solution, smart fault diagnosis solution, intranet penetration solution, auto-networking solution | ||
Management | Eweb and Ruijie Cloud | ||
Physical specifications | |||
Dimensions | 206.5×108.5×28 (mm) | 206.5×108.5×28 (mm) | 202×107×28 (mm) |
Weight | 0.84kg | 0.84kg | 1.5kg |
Temperature | Operating temperature : 0 ~ 40 ℃
Storage temperature : -10 ℃ ~ 70 ℃ |
Operating temperature : 0 ~ 40 ℃
Storage temperature : -10 ℃ ~ 70 ℃ |
Operating temperature : 0 ~ 40 ℃
Storage temperature : -10 ℃ ~ 70 ℃ |
Humidity | Operating humidity : 10% ~ 90% (non-condensing)
Storage humidity : 5% ~ 95% (non-condensing) |
Operating humidity : 10% ~ 90% (non-condensing)
Storage humidity : 5% ~ 95% (non-condensing) |
Operating humidity : 10% ~ 90% (non-condensing)
Storage humidity : 5% ~ 95% (non-condensing) |
