Ruijie RG-EG105GW Kenya



Ruijie RG-EG105GW Kenya

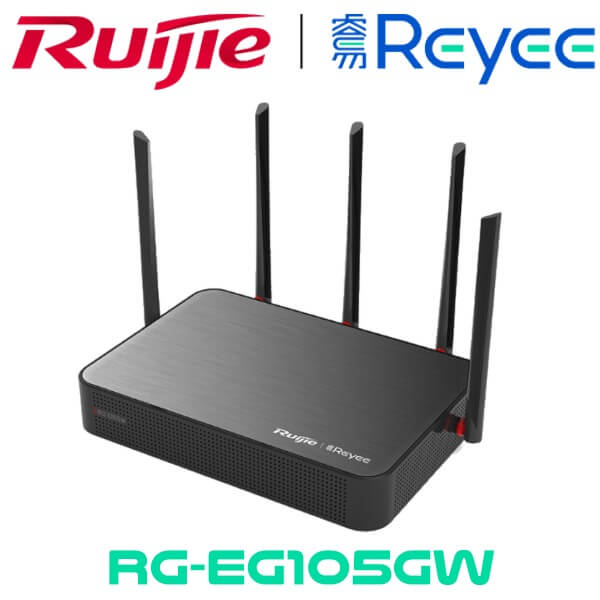

Ruijie RG-EG105GW Kenya is a high-performance enterprise-grade all-in-one wireless router designed for small offices, retails, restaurant, coffee shop, etc. It provides abundant enterprise features, such as captive portal, dual WAN, VPNs and enterprise wireless.

Description

Ruijie Reyee RG-EG105GW Router Kenya

Ruijie RG-EG105GW Kenya is a high-performance enterprise-grade all-in-one wireless router designed for small offices, retails, restaurant, coffee shop, etc. It provides abundant enterprise features, such as captive portal, dual WAN, VPNs, enterprise wireless, etc. Power on, business on. Ruijie Real-Easy Series RG-EG105GW is a high-performance enterprise-grade wireless router designed for small enterprise offices, small and medium-sized stores, food and beverage industry, etc. The brushed aluminum top cover of the metal casing not only provides exquisite texture, but also shields the external interference, thereby improving the quality of signal transmission and the stability of the device

Ruijie RG-EG105GW Kenya provides 4 10/100/1000M LAN ports (including 1 LAN/WAN port) and 1 fixed WAN port, which supports up to 2 concurrent broadband access with 500Mbps recommended bandwidth. The maximum clients supported per router is 100 and the recommended number of wireless terminals is 60. With concurrent 2.4G and 5G, RG-EG105GW supports up to 450Mbps at 2.4G and up to 867Mbps at 5G. Equipped with 802.11ac Wave2 RF chip, RG-EG105GW supports MU-MIMO. For multi-user access, the wireless speed is more stable, which further improves the users’ Internet experience.

The RG-EG105GW Router supports policy-based routing of multiple WAN ports, and offers various online authentication methods including WeChat authentication, SMS authentication, and one-click authentication by integrating with the MACC cloud platform. RG-EG105GW can perform per-port VLAN configuration to achieve port isolation and integrate with smart flow control to achieve comprehensive network planning. RG-EG105GW supports rich scenario-based application configurations, and guarantees the priority for the network experience of the employees’ office, cashier system and ordering system of the restaurants, so as to meet the application needs of small enterprises, small and medium-sized shops, restaurants, etc.

The built-in network controller of Ruijie RG-EG105GW Kenya can centrally manage up to 32 Ruijie Real-easy Series EAPs and RAPs which support smart networking feature and up to 128 Ruijie Real-easy Series ES2xx smart switches, realizing the industry-leading auto-discovery and auto-networking features for gateways, switches and wireless. The device also supports AP mode. In both routing mode and AP mode, it can achieve seamless roaming with other AP wireless signals in the same layer 2 networking environment. With the unified management of RG-EG105GW, the entire network can be centrally configured through the mobile app and MACC cloud platform for remote management and fault diagnosis. It also supports daily configuration tasks via WeChat to truly achieve multi-end management on the mobile terminal and PC anytime, anywhere.

RG-EG105GW Features

Multiple WAN Ports

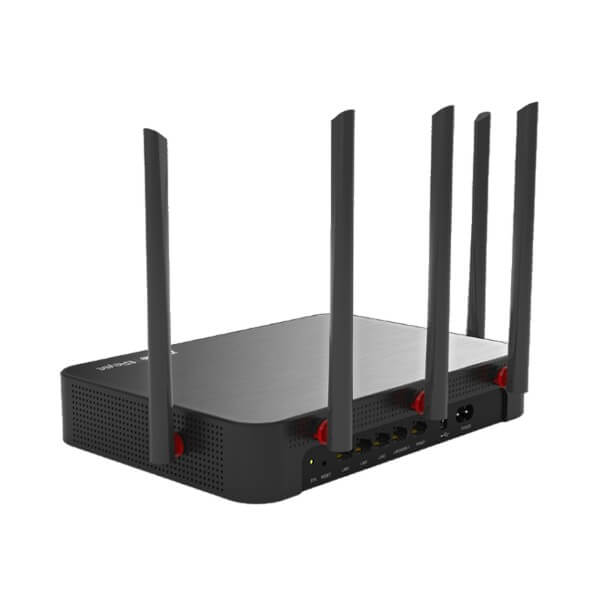

Ruijie RG-EG105GW Kenya offers 4 10/100/1000M LAN ports (including 1 LAN/WAN port) and 1 fixed WAN port. Users can flexibly switch between 1 WAN port + 4 LAN ports or 2 WAN ports + 3 LAN ports.

Large Bandwidth

When flow control is disabled, the recommended downlink bandwidth is 500M, which can meet the requirements of most application scenarios. Equipped with Qualcomm chip, the device supports concurrent dual-band 2.4GHz and 5GHz. It offers up to 450Mbps at 2.4GHz, up to 867Mbps at 5GHz and up to 1317Mbps per router.

High Concurrency

The maximum number of clients supported is 100. The 802.11ac Wave2 MU-MIMO feature improves the network experience of multiple concurrent wireless users, thereby increasing the maximum wireless capacity to 100. The recommended number of clients is 64, which is sufficient for most scenarios including smart homes, stores, and offices with wired / wireless terminals and smart appliances.

Strong Signal

Ruijie RG-EG105GW Router Kenya adopts high-power PA and high-sensitivity LNA, greatly improving the wireless coverage. Users can get full wireless signals at any location in the room and enjoy high-quality and fast Wi-Fi for any services such as voice call, video call and web browsing.

System Hang Prevention

The built-in watchdog timer automatically restarts the device when fault occurs to guarantee user experience.

Fast Roaming

The device not only delivers the outstanding wireless features of Ruijie Real-easy AP Series, but also realizes fast roaming with Ruijie Real-easy APs or other RG-EG105GW routers. It also supports switching to AP mode for signal supplementation, so as to prevent service disconnection when the users are moving from one place to another, ensuring the user experience.

Port Isolation

Ruijie RG-EG105GW Kenya supports per-port VLAN and network segment division, and provides a cascade port for surveillance switch expansion, isolating the surveillance network and data network.

Service Assurance

According to the access bandwidth and the number of users, the bandwidth guarantee policy intelligently adjusts the terminal bandwidth to ensure that each user can enjoy a better network experience. The key service protection ensures that the key services will not be affected by other services, offering fast experience.

Multiple WAN Policies

Ruijie RG-EG105GW Kenya Router supports PPPoE, static IP, dynamic IP, and other WAN port connection modes, as well as smart routing based on the carrier address database, and policy-based routing for load balancing and active/standby switching. It also supports load balancing based on source addresses so that services such as online banking login will no longer fail due to IP changes.

Authentication Policies

RG-EG105GW supports multiple authentication methods such as WeChat authentication, SMS authentication, and one-click authentication to ensure secure and reliable Internet access, thus realizing the authentication requirements in commercial scenarios.

Single-cable IPTV

Integrating with EAP1xx / RAP1200 series wall plate AP, it supports single-cable transmission for both Internet data and IPTV data from the modem. The data is separated at the wall plate AP, and then sent to the IPTV set-top box and used to provide the Internet Wi-Fi respectively.

Copying the Dial-up Password

By obtaining the dial-up account password from the existing router, users do not have to worry about forgetting the password when replacing the router. Device Status Monitoring RG-EG105GW supports checking of terminal information, Internet traffic, etc.

VPN

Ruijie RG-EG105GW Kenya supports VPN server and client features such as IPsec

Specifications

Model RG-EG105GW
Basic specifications
Fixed ports
  • 5 10/100/1000M Base-T ports supporting up to 2 WAN ports (Default : 1 WAN port,4 LAN ports , LAN3 can be switched to WAN1 port)
  • 1 USB2.0 port
RAM 128MB
Flash 16MB
Antenna
  • 3 2.4G blade antennas (maximum gain 5dBi)
  • 2 5.8G blade antennas (maximum gain 5dBi)
Protocol Concurrent 802.11a/n/ac/ac Wave2 and 802.11b/g/n
Operating bands
  • 2.4G : 2.4G ~ 2.483GHz
  • 5G : 5.150-5.350GHz, 5.725-5.850 GHz
Spatial streams
  • 5 spatial streams per router
  • 3 spatial streams at 2.4GHz
  • 2 spatial streams at 5GHz
Maximum clients
  • Supports up to 100 concurrent clients
  • Recommended number of wireless terminals : 60
Recommended bandwidth
  • 500M asymmetric bandwidth (flow control disabled)
  • 300M asymmetric bandwidth (flow control enabled)
Local power supply Support 220V AC local power supply
Power consumption <20W
Basic network features
Network access
  • PPPoE dial-up
  • DHCP client
  • Static IP
  • Automatic identification of access methods
  • Automatic avoidance of WAN port address conflicts
  • MAC cloning
  • Obtaining account passwords from existing routers
Routing
  • Static routing
  • Policy-based routing
  • Carrier address routing
  • Active/standby mode
  • Load balancing based on source address
  • Flow-based load balancing
  • Port-based weighted load balancing of data streams
Security
  • ACL
  • IP-MAC binding
  • MAC address filtering
  • Dynamic ARP
  • Static ARP binding
  • NAT
  • NAPT
  • Port mapping
Other protocols
  • DHCP Server
  • DHCP Client
  • DHCP Option43 / 138
  • DNS Client
  • DNS Server
  • DNS Proxy
  • TFTP
  • NTP
  • DDNS
Gateway
Flow control
  • Support custom flow control policies
  • IP-based automatic bandwidth assignment
Traffic audit Real-time traffic audit, IP traffic visualization
VPN IPsec VPN (8 tunnels) server and client
Wireless management
Management capacity In gateway mode, the maximum management capacity is 32
AP management
  • Support multi-SSID configuration
  • SSID hiding
  • Channel setting
  • Power setting
  • AP wired port setting
  • AP online upgrade
  • STA quantity setting
  • STA blacklist and whitelist
Roaming
  • Support local forwarding roaming
  • Layer 2 roaming
  • Layer 3 roaming between APs
  • viewing of STA roaming track
Switch management
Management capacity Maximum manageable cloud managed switches : 128
Port management
  • Loop protection
  • Port mirroring
  • Port isolation
  • Port configuration
  • PoE configuration
  • Port limit
  • Storm control
  • Static MAC
  • MAC search
Status display
  • Port statistics monitoring information
  • Cable detection
  • VLAN configuration
  • MAC list
Device management
  • Per-device upgrade
  • Batch upgrade
Special features
Featured solutions
  • Single-cable IPTV solution
  • Port service VLAN and network segment isolation solution
  • Smart fault diagnosis solution
  • Intranet penetration solution
  • Auto-networking solution
  • Wired relay solution (AP mode)
Flexible management Eweb and Ruijie Cloud
Physical specifications
Dimensions 250×170×42 (mm)
Weight 1.2kg
Temperature Operating temperature : -10°C~40°C
Storage temperature : -40°C~70°C
Humidity Operating humidity : 5%~95%(non-condensing)
Storage humidity : 5%~95%(non-condensing)
