Description

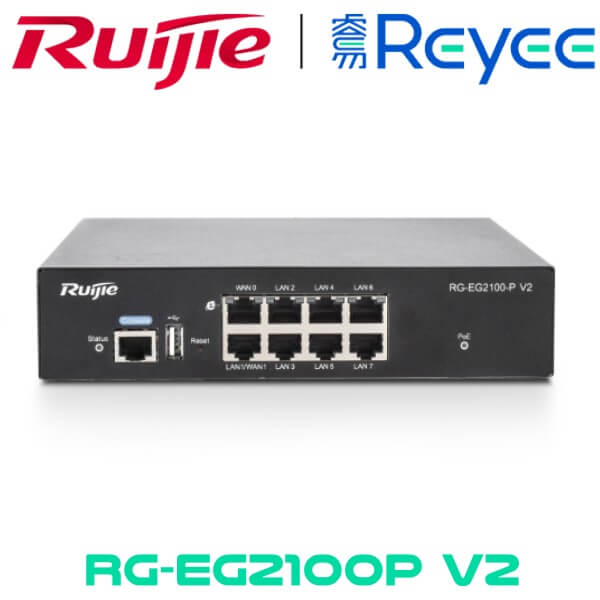

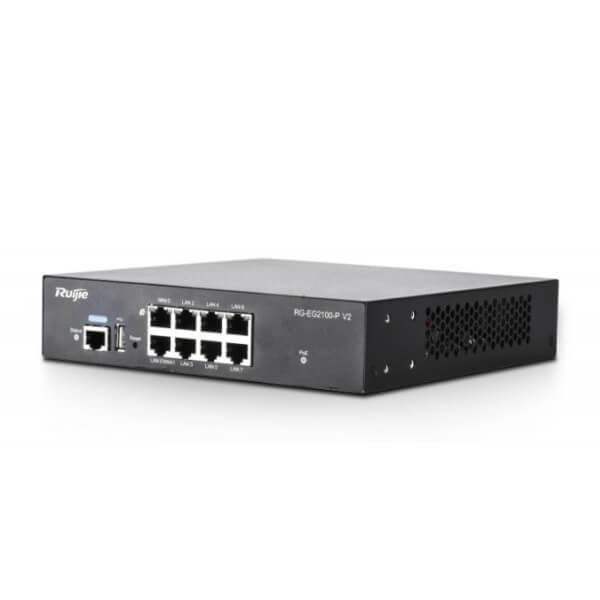

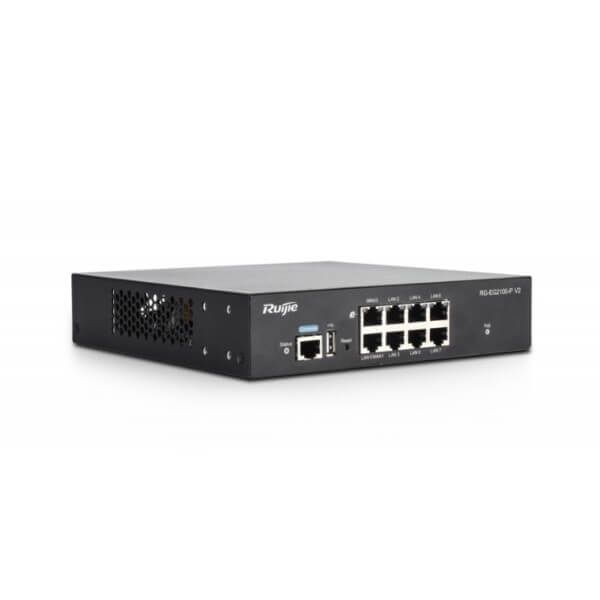

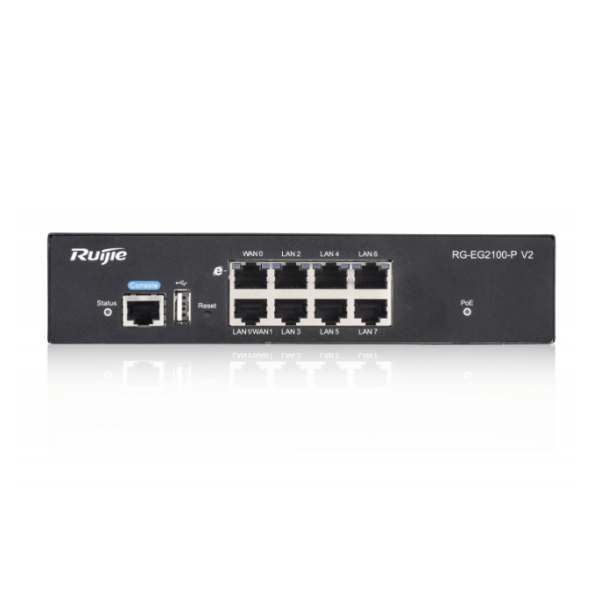

Ruijie RG-EG2100Pv2 Unified Security Gateway Kenya
Ruijie RG-EG2100Pv2 Kenya features a EasyGate (EG) Next-generation Unified Security Gateway that is a multi-functional Cloud Managed designed for various industries. Equipped with high-performance multi-core MIPS hardware architecture, the Ruijie RG-EG2100Pv2 Kenya supports a wide range of features such as high-performance NAT, WAN load balancing, smart flow control, online behavior management, visualized IPsec VPN, web authentication, etc. Taking advantage of integrated Hard Disk Drive (HDD), the EG Security Gateway can provide local storage for Internet activities logging, which is essential for National Internet Security Compliance in many countries.
The Ruijie RG-EG2100Pv2 Next-generation Unified Security Gateway is also supported by Ruijie Cloud, altogether with switches and wireless access points, Ruijie Cloud can provide a comprehensive secure networking platform for centralized management allowing for device monitoring, configuration as well as firmware management. For ease of provisioning, Ruijie provide an innovative Mobile App Dummy Provisioning for SME customers. In less than 3-min, user can complete the Gateway initial setup with Internet connectivity, without any PC setup or cable installation.
Features
- Smart Flow Control & AAA Integration
- User Online Behavior Management
- VPN & Traffic Visualization
- FREE Cloud Management
- App Caching for Download Acceleration
- Built-in Internet Audit Log Storage (EG3250)
- Built-in Power-Over-Ethernet Integration (EG-2100-P v2)
- Mobile App Dummy Provisioning (EG-2100-P v2)
Smart Flow Control & AAA Integration
Smart P2P speed limit, accurate identification of P2P software, and automatic transmission of uplink source quench message to control the downlink traffic and prevent downlink bandwidth exhaustion. Support over 120 popular application in DPI engine and enjoys FREE for life signature update Role-based flow control based on usernames and user groups to facilitate the allocation of bandwidths according to different departments. Support AAA (Authentication, Authorization and Accounting) with web authentication, integration with AAA Software and simple traffic accounting feature
Online Behavior Management
Ruijie RG-EG2100Pv2 Kenya Unified provides detailed online behavior management of the intranet users, blocking a variety of non-work-related websites to create a good working atmosphere and improve work efficiency.
VPN Visualization
Ruijie SME Security Gateway has significantly simplified the VPN configuration, which could be completed just by a few clicks, eliminating the need for professional maintenance. The Ruijie RG-EG2100Pv2 Kenya enables users to view and control the traffic in the VPN tunnel, establishing a visualized VPN to guarantee the security of key services using VPN.
Traffic Analysis
Equipped with powerful DPI technology, the Ruijie RG-EG2100Pv2 Kenya collects traffic usage statistics based on users, applications and links for report generation, providing reliable historical data for bandwidth expansion as well as user and application-based bandwidth control policies.
Centralized Cloud Management
Couple with Ruijie Cloud services, the Ruijie RG-EG2100Pv2 Kenya monitored & managed from the centralized cloud services. Ruijie Cloud is the free cloud-based management platform for all the Security Gateway series. No hardware or servers required to be installed on customer premise. Device monitoring, configuration changes & firmware management can be performed easily in anytime, anywhere & anyway.
Online Behavior Management
Ruijie EG Next-generation Unified Security Gateway provides detailed online behavior management of the intranet users, blocking a variety of non-work-related websites to create a good working atmosphere and improve work efficiency.
VPN Visualization
Ruijie RG-EG2100Pv2 Kenya has significantly simplified the VPN configuration, which could be completed just by a few clicks, eliminating the need for professional maintenance. The gateway enables users to view and control the traffic in the VPN tunnel, establishing a visualized VPN to guarantee the security of key services using VPN.
Traffic Analysis
Equipped with powerful DPI technology, the Ruijie RG-EG2100Pv2 Kenya collects traffic usage statistics based on users, applications and links for report generation, providing reliable historical data for bandwidth expansion as well as user and application-based bandwidth control policies.
Centralized Cloud Management
Couple with Ruijie Cloud services, the Ruijie EG Security Gateway is now able to be monitored & managed from the centralized cloud services. Ruijie Cloud is the free cloud-based management platform for all the Security Gateway series. No hardware or servers required to be installed on customer premise. Device monitoring, configuration changes & firmware management can be performed easily in anytime, anywhere & anyway.
Built-in Power-Over-Ethernet (POE)
Designed for retail, small organizations and distributed enterprises with remote and branch offices, the RG-EG2100-P v2 integrate support for PoE devices. It come with 7 POE Out ports to provide power to and endpoint like, video cameras, security access control (card scanners), point-of-sales devices, IP phones, wireless access point and many more. It eliminates the complexity of providing extra power cabling especially the small organization or retail wireless network deployment.
Specifications
| Model | RG-EG2100-P v2 | RG-EG3250 |
| Hardware Specification | ||
| CPU | Multi-core MIPS | |
| Fixed Ports | 8 1000BASE-T ports (7x POE/POE+) | 8 1000BASE-T ports
1 SFP port 1 SFP+ port (non-combo) |
| WAN Ports | Upto 2 | Upto 6 |
| Flash | 4GB EMMC | 8M SPIFLASH |
| Hard Disk | N/A | Standard 1TB |
| Memory | 512M | 2G |
| Performance & Feature | ||
| Performance | 1000Mbps (1518 bytes) | 6000Mbps (1518 bytes) |
| 450Mbps (512bytes) | 3725Mbps (512bytes) | |
| 70Mbps (64 bytes) | 800Mbps (64 bytes) | |
| Concurrent Session | 100,000 | 600,000 |
| Recommended Concurrent User | 300 | 2000 |
| App Caching | Support | Support |
| Cache Capacity | 750MB | 100GB |
| Cache Resources | Android APK & Apple IOS | Android APK & Apple IOS; Windows System Patches |
| Network Protocol |
|
|
| Application Visibility |
|
|
| URL Filtering |
|
|
| WAN Load Balancing | Support (upto 2 WAN Port) | Support (upto 6 WAN Port) |
| IPsec VPN Tunnel | 16 | 1000 |
| Network Security |
|
|
| Ruijie Cloud Integration Feature |
|
|
| Other Features | Integrate with AAA software to support multiple authentication modes | |
| Other Features
Service and Support |
Support push advertising page | |
| Support multi-link load balancing | ||
| Support remote HTTP online upgrade for signature library, software version, etc. | ||
| Lifetime Free signature library upgrade | ||
| Rack Height | 1U | 1U |
| Weight | 2KG | 4kg |
| Power Supply | 100-240V~,50-60Hz,3A | 100-240V~,50-60Hz,0.65A |
| PoE Budget | 135W | NA |
| Power Consumption | <150W | <25W |
| Dimensions (W x D x H) (mm) | 200×200×43.6 | 440×200×43.6 |
| Operating Temperature | 0°C to 45°C | 0°C to 40°C |
| Operating Humidity | 10% to 90%RH | 10% to 90%RH |
