Description

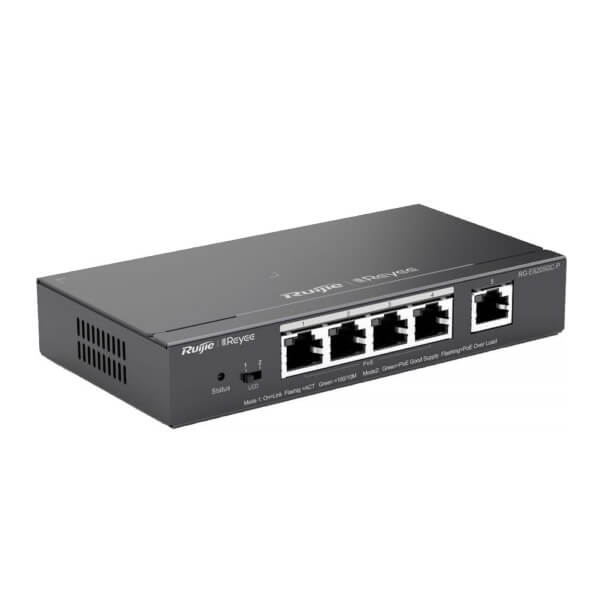

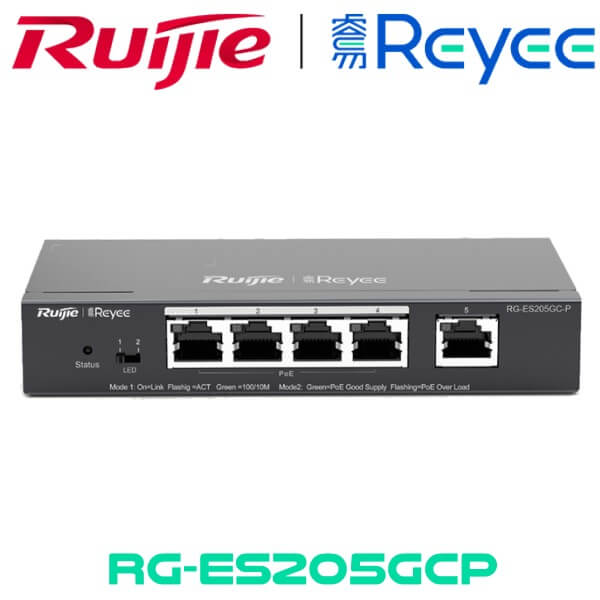

Ruijie RG-ES205GCP Unmanaged Network Switch Kenya
The Ruijie RG-ES205GCP Kenya features unmanaged Network Switch supporting full power PoE output to ensure that all cameras can be powered simultaneously when connected to the Switch at full power. In addition, the Ruijie Reyee Series smart surveillance switches offer simple and easy-to-use management features and plug and play with factory default configuration that can be quickly identified. debug monitoring network, restart port, perform VLAN configuration. Ruijie RG-ES205GCP Kenya boasts of Ruijie Cloud mobile which supports remote management, making monitoring network operation and maintenance easy and more convenient, while reducing operating and maintenance costs.
Features
- Auto-provisioning via Self-Organizing Networking: The ES200 Smart series switches realize industry-leading auto-discovery and auto-networking features for gateways, switches, and wireless
- Ruijie Cloud management: Remote failure alerts, one-click operations, loop prevention, real topology and maintenance on the Ruijie Cloud App
- NVR / Camera identification
- Reboot PoE ports with one click remotely on Ruijie Cloud app
- Full Gigabit ports: Meet the needs of 200M xDS/fiber access, high-speed wired connection
- Plug and Play with Zero Configuration
- Support full capacity POE, PoE camera at full capacity
- Automatically adjust PoE power for safety and energy saving
- High compatibility for network cable
- High surge protection for device stability
- Fast fault locating
- Configure VLANs as required
- Mobile App / Ruijie Cloud Platform Remote Management NVR / Camera Identification
- Multiple deployment methods Enables rapid project management
Specifications
| Hardware specifications | |
| Ports |
|
| Maximum output power per PoE port | 30W |
| Maximum PoE output power per switch | 54W |
| Switching capacity | 10Gbps |
| Packet forwarding rate | 7.44Mpps |
| Surge protection | Common mode : 4KV |
| Electrostatic discharge | Air discharge : 6KV |
| Contact discharge : 4KV | |
| Power consumption | 60W |
| Power supply | External power adapter |
| Dimensions (W x D x H) | 148*78*26mm |
| MTBF | >200K CZK |
| Operating environment | |
| Operating temperature | 0 to 40°C |
| Storage temperature | -40~70ºC |
| Operating humidity | 10% to 90% RH |
| Storage humidity | 5% to 95% RH |
| Software features | |
| MAC capacity | 2K CZK |
| Static MAC address | 16 |
| VLANs | Support 802.1Q VLAN |
| Port management |
|
| Security | Support broadcast storm suppression, port speed limit, port isolation |
| L2 features | Support port mirroring, loop protection, cable detection |
| Management | Support management and configuration through web management interface, Ruijie Cloud platform and Ruijie Cloud app |
