Description

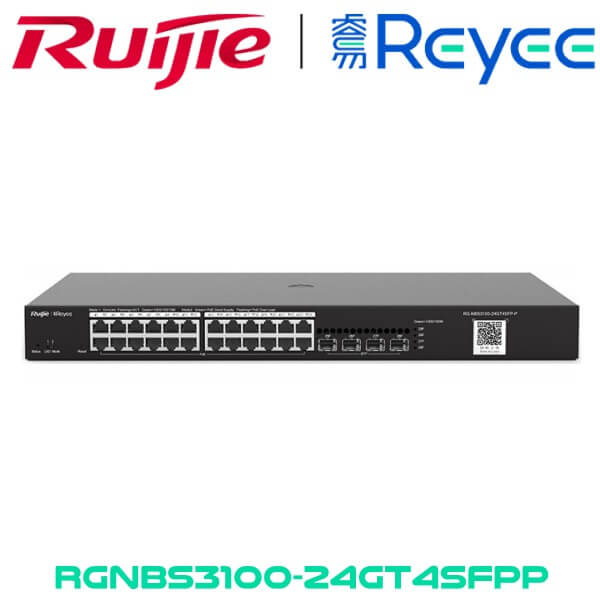

Ruijie RGNBS3100-24GT4SFPP Network Switch Kenya
The Ruijie RGNBS3100-24GT4SFPP Kenya is a 24-Port Gigabit L2 Managed POE Switch, 24 Gigabit RJ45 POE/POE+ Ports, 4 SFP Slots, 370W PoE power budget, 19-inch Rack-mountable Stell Case. Ruijie Real-easy RG-NBS3100 Managed Switch Series consists 4 models of switches designed for SME customers to meet their different network needs including basic VLAN division and advanced security features such as ACL. The models with suffix -P support PoE, which can meet the PoE requirements of wireless APs, digital cameras and other devices in various scenarios. In the office network, in order to isolate network access between different departments to avoid PCs infected by virus affecting the entire network, it is often necessary to divide the internal network into VLANs according to departments, floors, etc. to isolate the broadcast domain and improve the stability of the network.
Features
Flexible VLAN Division
The Ruijie Real-easy Series managed switches provide a convenient and flexible way to divide VLANs, allowing you to assign the ports to different VLANs as needed. Users in different VLANs do not affect each other, creating a more stable network for the users.
Surge ProtectionÂ
The Ruijie RGNBS3100-24GT4SFPP Kenya boasts of 6KV surge protection ensuring device stability of the port reducing the probability of being damaged by surges and improves the customer’s network stability.
MANET
Ruijie RGNBS3100-24GT4SFPP Kenya can obtain the IP address automatically from the gateway and connect to the external network without configuration. It also supports MANET for switches. Users can scan the QR code of any switch in the network using the Ruijie Cloud app to automatically add all switches in the network to the project.
Ruijie Cloud App/ Ruijie Cloud Platform Remote Management
Ruijie RGNBS3100-24GT4SFPP Kenya not only supports web interface management, but also supports Ruijie Cloud app and Ruijie Cloud platform remote management. Users can view the network status, modify the configuration, and troubleshoot at home.
Specification
Model | RG-NBS3100-24GT4SFP | RG-NBS3100-8GT2SFP | RG-NBS3100-24GT4SFP-P | RG-NBS3100-8GT2SFP-P | |
Fixed ports |
|
|
|
|
|
Switching capacity | 336Gbps | 192Gbps | 336Gbps | 192Gbps | |
Packet forwarding rate | 42Mpps | 15Mpps | 42Mpps | 15Mpps | |
MAC address | Support static MAC address, MAC address filtering | ||||
MAC address table size | 8K | ||||
Number of VLANs | 4094 | ||||
Link aggregation | Support | ||||
Port mirroring | Many-to-one mirroring | ||||
Spanning tree | STP, RSTP | ||||
LLDP | Support | ||||
IP routing | N/A | ||||
ACL |
|
||||
QoS | Port-based speed limit (ingress/egress) | ||||
Security | Port protection
Hardware CPP |
||||
Management | Web management, Ruijie Cloud or Ruijie Cloud app management | ||||
DHCP | DHCP snooping | ||||
EEE | Support | ||||
Physical specifications | |||||
Dimensions | 440×165×44mm | 260x120x43.6mm | 440×293×44mm | 300x220x43.6mm | |
PoE | N/A | N/A |
|
|
|
Temperature |
|
||||
Humidity |
|
