Ruijie RGNBS3200-48GT4XS Kenya



Ruijie RGNBS3200-48GT4XS Kenya

Ruijie RGNBS3200-48GT4XS Kenya Switch is the next-generation high-performance, high-security and multi-service Layer 2 Ethernet switches with gigabit and 10-gigabit ports. Offering 4 fixed 10G fiber ports with high-performance uplink capability.

Description

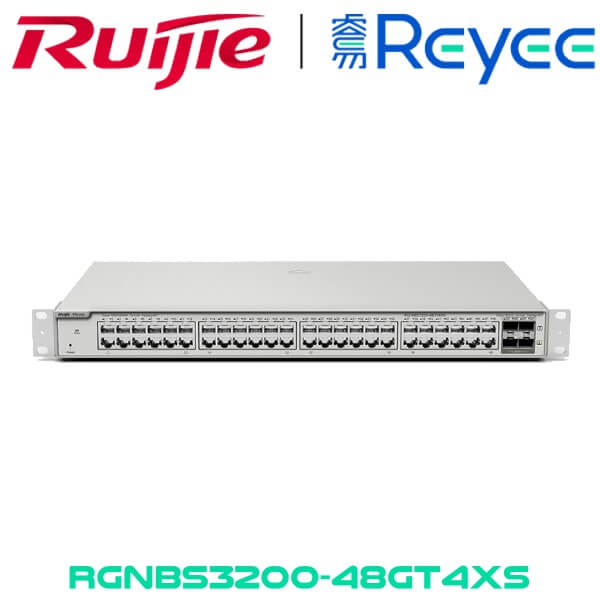

Ruijie RGNBS3200-48GT4XS Network Switch Kenya

Ruijie RGNBS3200-48GT4XS Kenya Switch is the next-generation high-performance, high-security and multi-service Layer 2 Ethernet switches with gigabit and 10-gigabit ports. Offering 4 fixed 10G fiber ports with high-performance uplink capability. RGNBS3200-48GT4XS provides comprehensive end-to-end QoS as well as flexible and rich security settings for small and medium-sized networks. Adopting an efficient hardware architecture design and equipped with Ruijie’s OpenWRT operating system, this switch series provides larger MAC address table size, faster hardware processing performance, and more convenient operating experience.

The Ruijie RGNBS3200-48GT4XS Network Switch adopts a variety of energy-saving design concepts after in-depth research and exploration on the problems of traditional switches in terms of noise and energy consumption, solving the problem of excessive noise when deployed in the office environment and the high energy consumption problem caused by large-scale deployment of access equipment.

RG-NBS3200 Network Switch series provides gigabit and 10-gigabit uplink ports. Every switch of this series offers 4 fixed 10G fiber ports with high-performance uplink capability. Ruijie RGNBS3200-48GT4XS Kenya provide comprehensive end-to-end QoS as well as flexible and rich security settings for small and medium-sized networks at an extremely high price-performance ratio to meet the needs of high-speed, secure and smart enterprise networks.

Features

Flexible VLAN Division

Ruijie RGNBS3200-48GT4XS Kenya provide a convenient and flexible way to divide VLANs, allowing you to assign the ports to different VLANs as needed. Users in different VLANs do not affect each other, creating a more stable network for the users.

Energy Saving

Ruijie RGNBS3200-48GT4XS Kenya adopt the next-generation hardware architecture as well as advanced energy-saving circuit design and components to save energy for users while reducing noise pollution. With Energy-Efficient Ethernet (EEE), if the port of RG-NBS3200 is idle for a continuous period of time, the system will set the port to energy-saving mode. When there is a need of packet transmission, RGNBS3200 will wake up the port to resume service via signals sent on regular intervals to achieve energy saving

Outstanding Performance

The 6KV surge protection of the Ruijie RGNBS3200-48GT4XS switch ports can reduce the core risk of physical malfunction for the switch by reducing the probability of being damaged by surges. The smart PoE feature of the PoE models provides safe power supply while offering mutual protection. The high-quality internal components provide powerful protection for customer’s network stability.

Self-organizing Network

 Ruijie RGNBS3200-48GT4XS Network Switch Kenya can obtain the IP address automatically from the gateway and connect to the external network without configuration. It also supports self-organizing network for switches. Users can scan the QR code of any switch in the network using the Ruijie Cloud app to automatically add all switches in the network to the project.

Remote Management

Ruijie RGNBS3200-48GT4XS Kenya not only supports web interface management, but also supports Ruijie Cloud app and Ruijie Cloud platform remote management. Users can view the network status, modify the configuration, and troubleshoot at home.

Specifications

Model RG-NBS3200-24GT4XS RG-NBS3200-48GT4XS RG-NBS3200-24SFP/8GT4XS RG-NBS3200-24GT4XS-P

RG-NBS3200-48GT4XS-P

Fixed ports 24 10/100/1000Base-T ports

4 SFP+ 10GBase-X ports

Fixed single AC power supply

48 10/100/1000Base-T ports

4 SFP+ 10GBase-X ports

Fixed single AC power supply

24 SFP ports (SFP: 100/1000M ports)

8 combo 10/100/1000Base-T ports

4 SFP+ 10GBase-X ports

24 10/100/1000Base-T ports (802.3 af/at compliant)

4 SFP+ 10GBase-X ports

48 10/100/1000Base-T ports (support PoE and PoE+)

4 SFP+ 10GBase-X ports

Switching capacity 336Gbps 336Gbps 336Gbps 336Gbps
Packet forwarding rate 96Mpps 132Mpps 96Mpp RG-NBS3200-24GT4XS-P: 96Mpps

RG-NBS3200-48GT4XS-P: 132Mpps

MAC address Support static MAC address, MAC address filtering
MAC address table size 16K
Number of VLANs 4094
Link aggregation Support
Port mirroring Many-to-one mirroring
Spanning tree STP, RSTP
LLDP Support
IP routing N/A
ACL
  • IP standard ACL
  • MAC extended ACL
  • IP extended ACL
  • Port ACL for Layer 2 ports (physical port / AP)
QoS Port-based speed limit (ingress/egress)
Security
  • Port protection
  • Hardware CPP
Management Web management, Ruijie Cloud or Ruijie Cloud app management
DHCP DHCP snooping
EEE Support
Physical specifications
Dimensions 440×207.5×43.6mm 440×267.5×43.6mm 440×357.6×43.6mm
PoE N/A 24/48 Base-T ports (support PoE and PoE+)

Maximum PoE / PoE+ output power per switch: 370W

Maximum output power per port: 30W

Temperature
  • Operating temperature : 0 ℃ ~ 50 ℃
  • Storage temperature : -40 ℃ ~ 70 ℃
Humidity
  • Operating humidity : 10% ~ 90% RH
  • Storage humidity : 5% ~ 90% RH
