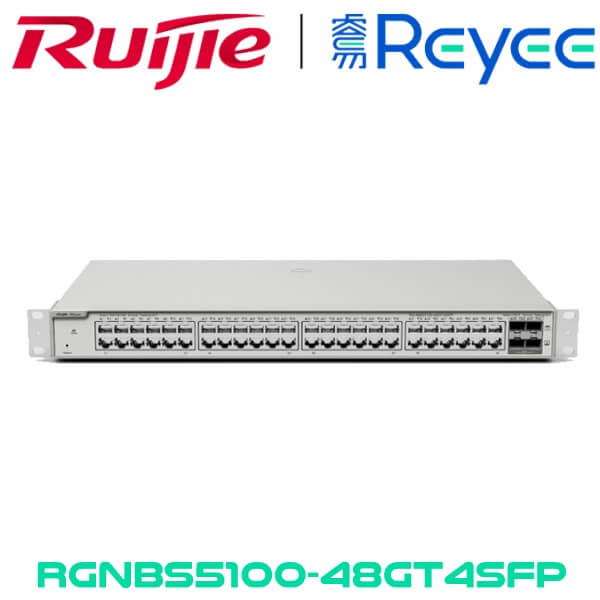

Ruijie RGNBS5100-48GT4SFP Kenya



Ruijie RGNBS5100-48GT4SFP Kenya

Ruijie RGNBS5100-48GT4SFP Kenya is the next-generation high-performance, high-security and multi-service Layer 3 Ethernet switches. The Featuring plug and play device, it can obtain the IP address automatically from the gateway and connect to the external network without configuration.

Description

Ruijie RGNBS5100-48GT4SFP Network Switch Kenya

Ruijie RGNBS5100-48GT4SFP Kenya is the next-generation high-performance, high-security and multi-service Layer 3 Ethernet switches. The Featuring plug and play device, it can obtain the IP address automatically from the gateway and connect to the external network without configuration. It also supports auto-networking for switches. Adopting an efficient hardware architecture design, this switch series provides larger MAC address table size, faster hardware processing performance, and more convenient operating experience. The Ruijie RGNBS5100-48GT4SFP Kenya provides Gigabit access and Gigabit uplink, this series offers 4 fixed 10G fiber ports with high-performance uplink capability. Moreover, it supports web interface management, and also supports mobile app and Ruijie Cloud platform remote management. RG-NBS5100&5200 series switch provide comprehensive end-to-end QoS as well as flexible and rich security settings for small and medium-sized networks at an extremely high price-performance ratio to meet the needs of high-speed, secure and smart enterprise networks.

Features

Layer 2+ 10G Switches, Easy Play

Ruijie RGNBS5100-48GT4SFP Kenya support Ruijie Cloud App management. Even for Layer 2+ and 10G network scenarios, Ruijie Cloud enables equipment and projects of different sizes to be managed on your mobile phone.

Outstanding Performance

The 6KV surge protection of the Series switch ports can reduce the core risk of physical malfunction for the switch by reducing the probability of being damaged by surges. The smart PoE feature of the PoE models provides safe power supply while offering mutual protection. The high-quality internal components provide powerful protection for customer’s network stability.

Auto-networking

The Ruijie RGNBS5100-48GT4SFP Kenya can obtain the IP address automatically from the gateway and connect to the external network without configuration. It also supports auto-networking for switches. Users can scan the QR code of any switch in the network using the mobile app to automatically add all switches in the network to the project.

Ruijie Cloud App/ Ruijie Cloud Platform Remote Management

Ruijie RGNBS5100-48GT4SFP Kenya not only supports web interface management, but also supports mobile app and Ruijie Cloud platform remote management. Users can view the network status) modify the configuration) and troubleshoot at home.

Specifications

Model RG-NBS5200-24GT4XS RG-NBS5200-48GT4XS RG-NBS5200-24SFP/8GT4XS RG-NBS5100-24GT4SFP RG-NBS5100-48GT4SFP
Fixed ports 24 10/100/1000Base-T ports

4 SFP+ 10GBase-X ports

Fixed single AC power supply

48 10/100/1000Base-T ports

4 SFP+ 10GBase-X ports

Fixed single AC power supply

24 SFP ports (SFP: 100/1000M ports)

8 combo 10/100/1000Base-T ports

4 SFP+ 10GBase-X ports

24 10/100/1000Base-T ports

4 SFP 1000Base-X ports

Fixed single AC power supply

48 10/100/1000Base-T ports

4 SFP 1000Base-X ports

Fixed single AC power supply

Switching capacity 128Gbps 216Gbps 128Gbps 56Gbps 104Gbps
Packet forwarding rate 96Mpps 132Mpps 96Mpps 42Mpps 78Mpps
MAC address Support static MAC address, MAC address filtering
MAC address table size 16K
Number of VLANs 4094
Layer 3 aggregation ports 16
Link aggregation Support
Port mirroring Many-to-one mirroring
Spanning tree STP, RSTP
LLDP Support
IP routing Support static routing
ACL
  • IP standard ACL
  • MAC extended ACL
  • IP extended ACL
  • Port ACL for Layer 2 ports (physical port / AP)
QoS Port-based speed limit (ingress/egress)
Security
  • Port protection
  • Hardware CPP
Management Web management, Ruijie Cloud platform or Ruijie Cloud app management
DHCP DHCP snooping
EEE Support
Physical specifications
Dimensions 440×207.5×43.6mm 440×267.5×43.6mm 440 x 207.5 x 43.6mm 440×267.5×43.6mm
Temperature
  • Operating temperature : 0 ℃ ~ 50 ℃
  • Storage temperature : -40 ℃ ~ 70 ℃
Humidity
  • Operating humidity : 10% ~ 90% RH
  • Storage humidity : 5% ~ 90% RH
