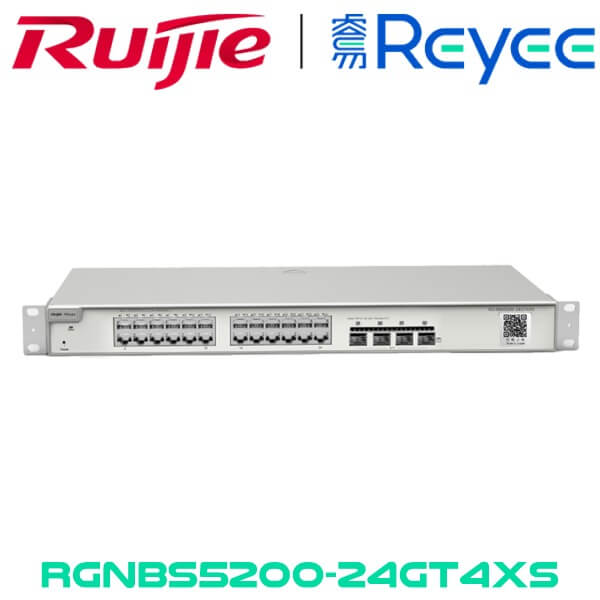

Ruijie RGNBS5200-24GT4XS Kenya



Ruijie RGNBS5200-24GT4XS Kenya

Ruijie RGNBS5200-24GT4XS Kenya is the next-generation high-performance, high-security and multi-service Layer 3 Ethernet switches. The Switch adopts an efficient hardware architecture design and advanced energy-saving circuit design

Description

Ruijie RGNBS5200-24GT4XS Network Switch Kenya

Ruijie RGNBS5200-24GT4XS Kenya is the next-generation high-performance, high-security and multi-service Layer 3 Ethernet switches. Adopting an efficient hardware architecture design and advanced energy-saving circuit design and components to save energy for users while reducing noise pollution. this switch series provides larger MAC address table size, faster hardware processing performance, and more convenient operating experience. RG-NBS5100 series provides Gigabit access and Gigabit uplink, while RG-NBS5200 series provides Gigabit access and 10G uplink ports. Every switch of this series offers 4 fixed 10G fiber ports with high-performance uplink capability. Ruijie RGNBS5200-24GT4XS Network Switch Kenya provide comprehensive end-to-end QoS as well as flexible and rich security settings for small and medium-sized networks at an extremely high price-performance ratio to meet the needs of high-speed, secure and smart enterprise networks. Moreover, responding to the call for energy saving, Ruijie RGNBS5200-24GT4XS Network Switch adopt a variety of energy-saving design concepts after in-depth research and exploration on the problems of traditional switches in terms of noise and energy consumption, solving the problem of excessive noise when deployed in the office environment and the high energy consumption problem caused by large-scale deployment of access equipment.

Features

Saves Energy

Ruijie RGNBS5200-24GT4XS Kenya adopt the next-generation hardware architecture as well as advanced energy-saving circuit design and components to save energy for users while reducing noise pollution. With Energy-Efficient Ethernet (EEE), if the port of RG-NBS5100&5200 is idle for a continuous period of time, the system will set the port to energy-saving mode. When there is a need of packet transmission, RG-NBS5100&5200 will wake up the port to resume service via signals sent on regular intervals to achieve energy saving.

Surge Protection

Ensuring stable performance RGNBS5200-24GT4XS, boasts of 6KV surge protection of the port reduces the probability of being damaged by surges and improves the customer’s network stability.

Auto-networking for Easy Project Management

Ruijie RGNBS5200-24GT4XS Kenya can obtain the IP address automatically from the gateway and connect to the external network without configuration. It also supports auto-networking for switches. Users can scan the QR code of any switch in the network using the mobile app to automatically add all switches in the network to the project.

Ruijie Cloud App/ Ruijie Cloud Platform Remote Management

Ruijie RGNBS5200-24GT4XS Network Switch Kenya not only supports web interface management, but also supports mobile app and Ruijie Cloud platform remote management. Users can view the network status, modify the configuration, and troubleshoot at home.

Specifications

Model RG-NBS5200-24GT4XS RG-NBS5200-48GT4XS RG-NBS5200-24SFP/8GT4XS RG-NBS5100-24GT4SFP RG-NBS5100-48GT4SFP
Fixed ports 24 10/100/1000Base-T ports

4 SFP+ 10GBase-X ports

Fixed single AC power supply

48 10/100/1000Base-T ports

4 SFP+ 10GBase-X ports

Fixed single AC power supply

24 SFP ports (SFP: 100/1000M ports)

8 combo 10/100/1000Base-T ports

4 SFP+ 10GBase-X ports

24 10/100/1000Base-T ports

4 SFP 1000Base-X ports

Fixed single AC power supply

48 10/100/1000Base-T ports

4 SFP 1000Base-X ports

Fixed single AC power supply

Switching capacity 128Gbps 216Gbps 128Gbps 56Gbps 104Gbps
Packet forwarding rate 96Mpps 132Mpps 96Mpps 42Mpps 78Mpps
MAC address Support static MAC address, MAC address filtering
MAC address table size 16K
Number of VLANs 4094
Layer 3 aggregation ports 16
Link aggregation Support
Port mirroring Many-to-one mirroring
Spanning tree STP, RSTP
LLDP Support
IP routing Support static routing
ACL
  • IP standard ACL
  • MAC extended ACL
  • IP extended ACL
  • Port ACL for Layer 2 ports (physical port / AP)
QoS Port-based speed limit (ingress/egress)
Security
  • Port protection
  • Hardware CPP
Management Web management, Ruijie Cloud platform or Ruijie Cloud app management
DHCP DHCP snooping
EEE Support
Physical specifications
Dimensions 440×207.5×43.6mm 440×267.5×43.6mm 440 x 207.5 x 43.6mm 440×267.5×43.6mm
Temperature
  • Operating temperature : 0 ℃ ~ 50 ℃
  • Storage temperature : -40 ℃ ~ 70 ℃
Humidity
  • Operating humidity : 10% ~ 90% RH
  • Storage humidity : 5% ~ 90% RH
