Description

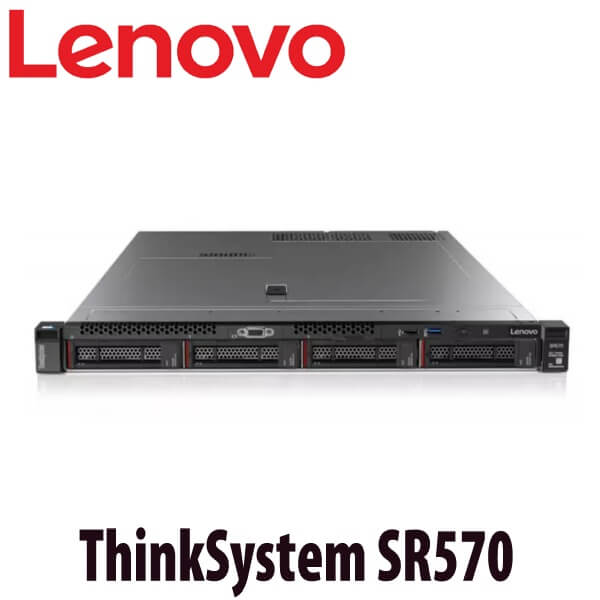

ThinkSystem SR570 Kenya
The Lenovo ThinkSystem SR570 Kenya is a powerful yet budget-friendly 1U rack server, designed to meet the diverse needs of businesses ranging from small startups to large enterprises. Whether you’re looking for a reliable solution for virtualization, cloud computing, cybersecurity, web hosting, or application development, this server delivers exceptional performance, scalability, and security in a compact design. At its core, the ThinkSystem SR570 is powered by the Intel Xeon Scalable Processor Gen 2, ensuring robust computing capabilities for demanding workloads. With support for up to 2.75TB of memory, businesses can efficiently run memory-intensive applications without performance bottlenecks. Additionally, the server supports a mix of NVMe PCIe SSDs, SAS/SATA SSDs, and HDDs, giving businesses the flexibility to configure storage based on their unique requirements. Thanks to Lenovo’s AnyBay technology, organizations can seamlessly integrate different drive types within the same bay, optimizing storage efficiency and cost-effectiveness.
A standout feature of the SR570 is its onboard NVMe PCIe ports, which enable direct connectivity for U.2 NVMe SSDs. This design not only frees up valuable PCIe slots but also significantly reduces storage acquisition costs while maintaining high-speed data access. For IT administrators, Lenovo XClarity Controller simplifies server management by providing advanced monitoring, remote management, and automated serviceability features. These capabilities reduce downtime and enhance operational efficiency, ensuring smooth business operations. Furthermore, the ThinkSystem SR570 is engineered to meet ASHRAE A4 standards, meaning it can function efficiently in high-temperature environments of up to 45°C (113°F)—an essential advantage for businesses aiming to cut energy costs and improve infrastructure resilience. If you’re searching for a high-performance, cost-efficient, and highly scalable rack server in Kenya, the Lenovo ThinkSystem SR570 is an ideal choice. With enterprise-grade reliability, built-in redundancy, and flexible storage options, this server is designed to help businesses enhance IT infrastructure, boost efficiency, and achieve long-term scalability without breaking the bank.
Features:
Workload-optimized support
Intel® Optane™ DC Persistent Memory delivers a new, flexible tier of memory designed specifically for data center workloads that offers an unprecedented combination of high-capacity, affordability, and persistence. This technology will have a significant impact on real-world data center operations: reduction of restart times from minutes down to seconds, 1.2x virtual machine density, dramatically improved data replication with 14x lower latency and 14x higher IOPS, and greater security for persistent data built into hardware
Flexible storage
Lenovo AnyBay design features a choice of drive interface type in the same drive bay: SAS drives, SATA drives, or U.2 NVMe PCIe drives. Freedom to configure some of the bays with PCIe SSDs and still use the remaining bays for capacity SAS drives provides the ability to upgrade to more PCIe SSDs in the future as needed.
Technical Specifications:
| Form Factor | 1U |
| Processor | Up to 2 second-generation Intel® Xeon® Platinum 150W, up to 26 cores per CPU |
| Memory | Up to 1TB of 2933MHz TruDDR4 in 16 slots, Intel® Optane™ DC Persistent Memory |
| Expansion Slots | Up to 3 PCIe 3.0 |
| Drive Bays | Up to 10x 2.5″ (including optional 4x direct-connect AnyBay) or up to 4x 3.5″ |
| Internal Storage | Up to: 48TB (3.5″ SAS/SATA HDD); 30.72TB (3.5″ SATA SSD); 24TB (2.5″ SAS/SATA HDD); 76.8TB (2.5″ SSD); 30.72TB (2.5″ NVMe); 1x or 2x M.2 |
| Network Interface | 2 GbE ports standard; LOM interface standard; optional ML2, PCIe |
| NIC Ports | 2x GbE standard; 1x GbE dedicated management standard |
| Power | Up to 2x hot-swap/redundant 550W/750W Platinum, 750W Titanium |
| High-Availability Features | Hot-swap HDDs/SSDs/NVMe, hot-swap PSUs and fans, light path diagnostics, PFA for all major components,   ASHRAE A4 support (with limits), optional XClarity Pro with Call Home feature |
| RAID Support | HW RAID 0, 1, 5 standard on hot-swap models; SW RAID 0, 1, 5 on simple-swap 3.5″ models |
| Security | Lenovo ThinkShield, locking bezel; locking top cover; TPM 2.1 standard; optional TCM (China only) |
| Management | XClarity Administrator; XClarity Controller (embedded hardware); optional XClarity Pro |
| OS Support | Microsoft, SUSE, Red Hat, VMware. |
| Limited Warranty | 1- and 3-year customer replaceable unit and onsite service, next business day 9×5 |
