Description

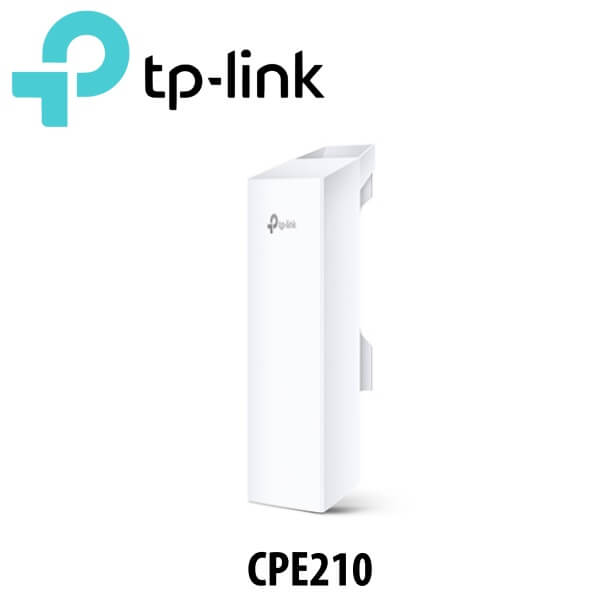

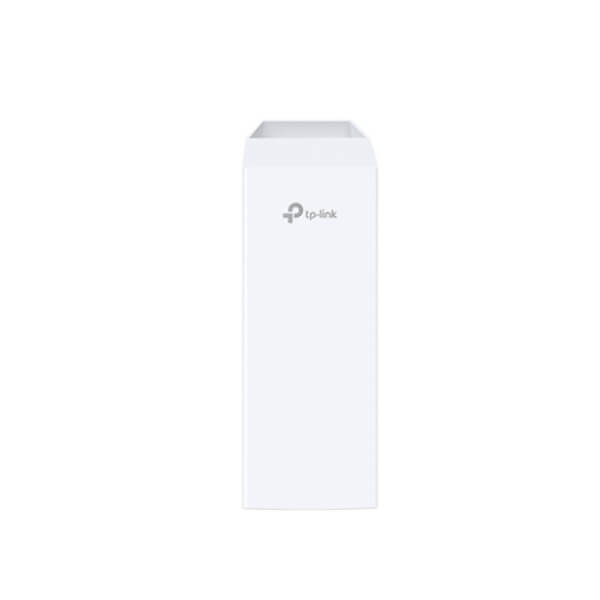

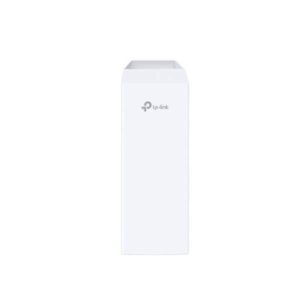

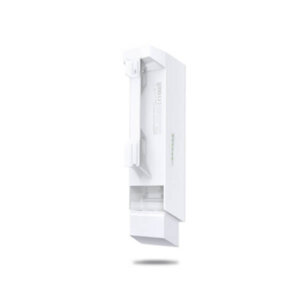

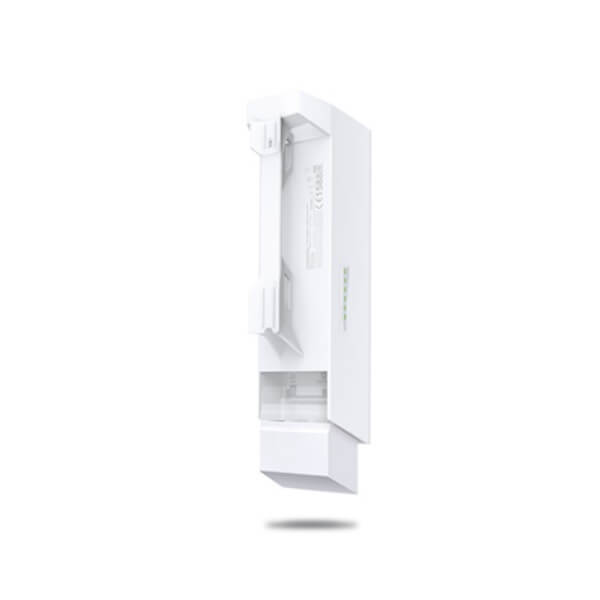

Tplink CPE210 Outdoor Radio Kenya
Tplink CPE210 Kenya is a 2.4GHz 300Mbps 9dBi Outdoor CPE, featuring dedicated to cost effective solutions for outdoor wireless networking applications. With its centralized management application, it is flexible and ideal for point-to-point, point-to-multipoint and outdoor Wi-Fi coverage applications.  Professional performance, coupled with user-friendly design, makes CPE210 an ideal. Tplink CPE210 Kenya also comes equipped with centralized management software that helps users easily manage all the devices in their network from a single PC – Pharos Control. Functions like device discovery, status monitoring, firmware upgrading, and network maintenance can be managed using Pharos Control.
Features
- Built-in 9dBi 2×2 dual-polarized directional MIMO antenna
- Adjustable transmission power from 0 to 27dBm/500mw
- System-level optimizations for more than 5km long range wireless transmission
- TP-LINK Pharos MAXtream TDMA (Time-Division-Multiple-Access) technology improves product performance in throughput, capacity and latency performance, ideal for PTMP applications
- Centralized Management System – Pharos Control
- AP / Client / AP Router / AP Client Router (WISP) operation modes
- Passive PoE Adapter supports up to 60 meter (200 feet) Power over Ethernet deployment and allows the device to be reset remotely
Enterprise Hardware
With Qualcomm Atheros enterprise level chipsets, high gain antennas and high quality material, specially designed enclosure, and PoE power supply, Tplink CPE210 Kenya is specially designed for outdoor use and can operate flawlessly in almost any climate, with operating temperatures ranging from -40℃ (-40℉) to +70 ℃ (158℉).
Advanced Antenna System
Tplink CPE210 Kenya has Built-in High Gain Dual-Polarized Antenna. Dedicated metal reflector ensures higher gain and lower noise interference
5km+ Wireless Data Transmission
Tplink CPE210 Kenya is specially designed for outdoor uses, ideal for long distance wireless data transmission over 5km+, tested in the field.
P-LINK MAXtream TDMA Technology
As network scale increases, wireless competition and collisions among CPEs and base stations will be
so enormous that the real throughput of the network will drop, resulting in a serious impact on end-user
experience. To mitigate these effects, Tplink CPE210 Kenya uses MAXtream TDMA Technology.
Pharos Control – Centralized Management System
Tplink CPE210 Kenya also comes equipped with centralized management software that helps users easily manage all the devices in their network from a single PC – Pharos Control. Functions like device discovery, status monitoring, firmware upgrading, and network maintenance can be managed using Pharos Control.
Specifications
| HARDWARE FEATURES | |
| Processor | Qualcomm Atheros 560MHz CPU, MIPS 74Kc |
| Memory | 64MB DDR2 RAM, 8MB Flash |
| Interface |
|
| Power Supply |
|
| Power Consumption | 10.5 Watts Max Note : When deployed using Passive PoE, the power drawn from the power source will be higher by some amount depending on the length of the connecting cable. |
| Dimensions ( W x D x H ) | 8.8 x 3.1 x 2.4 in. |
| Antenna Type |
|
| Protection |
|
| Enclosure |
|
| WIRELESS FEATURES | |
| Wireless Standards | IEEE 802.11b/g/n (with Pharos MAXtream disabled) |
| Proprietary Protocol | TDMA Mode (with Pharos MAXtream enabled) |
| Wireless Speeds |
|
| Frequency | 2.4~2.483GHz |
| Transmission Power | 27dBm/500mw (1dBm step adjustable) |
| SOFTWARE FEATURES | |
| Wireless Configurations |
|
| Management |
|
| System Tools |
|
| System-level Optimizations |
|
| POE ADAPTER FEATURES | |
| Dimensions(W x D x H) | 4.3 x 2.2 x 1.3 in |
| Interfaces |
|
| Button | Remote Reset Button |
| Power Status LEDs | Green |
| Input | 100-240VAC, 50/60Hz |
| Output | 24VDC, 0.6A Max +4, 5pins; -7, 8pins. (Support up to 60m Power over Ethernet) |
| Efficiency | > 80% |
| Certifications | FCC |
| OTHERS | |
| Certification | FCC, RoHS, IPX5 |
| Package Contents |
|
| Environment |
|
