Description

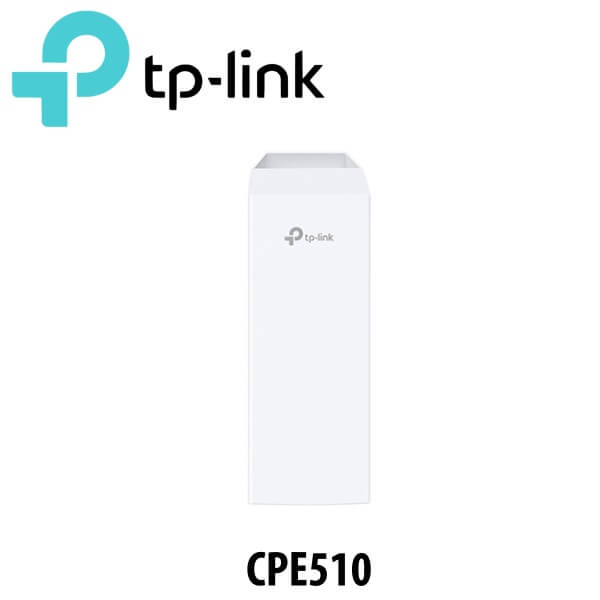

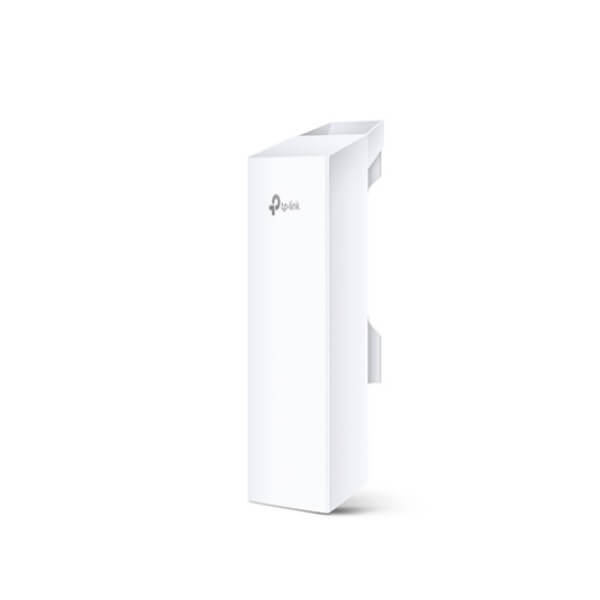

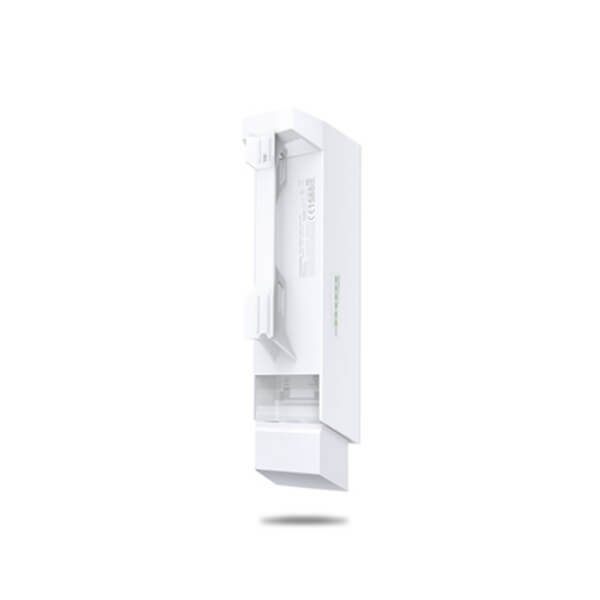

Tplink CPE510 Outdoor Radio Kenya
Tplink CPE510 Kenya Outdoor CPE 5GHz 300Mbps 13dBi, is dedicated to cost effective solutions for outdoor wireless networking applications. With its centralized management application, it is flexible and ideal for point-to-point, point-to-multipoint and outdoor Wi-Fi coverage applications. Â Professional performance, coupled with user-friendly design, makes CPE510 an ideal choice for both business and home users.
Features
- Built-in 13dBi 2×2 dual-polarized directional MIMO antenna
- Adjustable transmission power from 0 to 23dBm/200mw
- System-level optimizations for more than 15km long range wireless transmission
- Tplink Pharos MAXtream TDMA (Time-Division-Multiple-Access) technology improves product performance in throughput, capacity and latency performance, ideal for PTMP applications
- Centralized Management System – Pharos Control
- AP / Client / AP Router / AP Client Router (WISP) operation modes
- Passive PoE Adapter supports up to 60 meter (200 feet) Power over Ethernet deployment and allows the device to be reset remotely
Enterprise Hardware
With Qualcomm Atheros enterprise level chipsets, high gain antennas and high quality material, specially designed enclosure, and PoE power supply, Tplink CPE510 Kenya is specially designed for outdoor use and can operate flawlessly in almost any climate, with operating temperatures ranging from -30℃ (-22℉) to +70 ℃ (158℉).
Advanced Antenna System
Tplink CPE510 Kenya has a built-in High Gain Dual-Polarized Antenna, the dedicated metal reflector ensures higher gain and lower noise interference
5km+ Wireless Data Transmission
Tplink CPE510 Kenya is specially designed for outdoor uses, ideal for long distance wireless data transmission, covering a range of 15km+, tested in the field.
Tplink MAXtream TDMA Technology
As network scale increases, wireless competition and collisions among CPEs and base stations will be
so enormous that the real throughput of the network will drop, resulting in a serious impact on end-user
experience. To mitigate these effects, the CPE510 uses MAXtream TDMA Technology.
Pharos Control – Centralized Management System
Tplink CPE510 Kenya also comes equipped with centralized management software that helps users easily manage all the devices in their network from a single PC – Pharos Control. Functions like device discovery, status monitoring, firmware upgrading, and network maintenance can be managed using Pharos Control.
PharOS
User-friendly web-based management system allows professionals to do more specific configurations.
Wireless Networking for Elevators
Tplink offers wireless point to point link delivering up to 300 Mbps throughput. The point to point link provides wireless coverage to the entire shaft, and delivers network to the elevator car, connecting the surveillance cameras or digital signage. So that real time video can be recorded to a DVR without hard wiring coax cable directly from the camera to the recorder.
Easy, Flexible Installation
Tplink CPE510 Kenya features a reliable high speed connection Ideal for Elevator Camera, No Complex Cabling with PoE Support
Specifications
| HARDWARE FEATURES | |
| Processor | Qualcomm Atheros Enterprise 560MHz CPU, MIPS 74Kc |
| Memory | 64MB DDR2 RAM, 8MB Flash |
| Interface |
|
| Power Supply |
|
| Power Consumption | 10.5 Watts Max Note : When deployed using Passive PoE, the power drawn from the power source will be higher by some amount depending on the length of the connecting cable. |
| Dimensions ( W x D x H ) | 8.8 x 3.1 x 2.4 in |
| Antenna Type |
|
| Protection |
|
| Enclosure |
|
| WIRELESS FEATURES | |
| Wireless Standards | IEEE 802.11a/n (with Pharos MAXtream disabled) |
| Proprietary Protocol | TDMA Mode (with Pharos MAXtream enabled) |
| Wireless Speeds |
|
| Frequency | 5.15~5.85GHz Note : Available operating frequency may vary depending on the limitations of the countries or regions in which the device is used. |
| Transmission Power | 23dBm/200mw (Adjustable power by 1dBm) Note : Maximum transmission power may vary across different channels depending on the limitations of the countries or regions in which the device is used. |
| POE ADAPTER FEATURES | |
| Dimensions(W x D x H) | 4.3 x 2.2 x 1.3 in |
| Interfaces |
|
| Button | Remote Reset Button |
| Power Status LEDs | Green |
| Input | 100-240VAC, 50/60Hz |
| Output | 24VDC, 1A Max +4, 5pins; -7, 8pins. (Support up to 60m Power over Ethernet) |
| Efficiency | >80% |
| Certifications | CE/FCC |
| OTHERS | |
| Certification | FCC, RoHS, IPX5 |
| Package Contents |
|
| System Requirements | Google Chrome, Safari, and Firefox browsers for web GUI management |
| Environment |
|
