Description

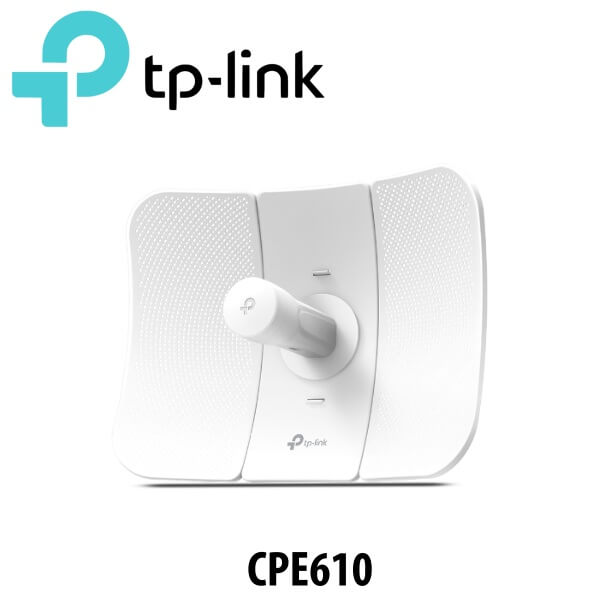

Tplink CPE610 Outdoor Wi-Fi Kenya
The Tplink CPE610 Kenya Access Point is the ideal device for long-distance outdoor Wi-Fi network transmission to let you access the internet even outside your home. This access point features a 23 dBi high-gain directional 2×2 MIMO Cassegrain antenna and the dedicated metal reflector for impressive network extension, a Stable Structural Design to withstand windy conditions, and a Pharos Control Centralized Management System to manage various functions through one PC.
Features
- 5GHz 300Mbps 23dBi Outdoor CPE
- Up to 300Mbps on 5GHz wireless data rates
- 23dBi high-gain directional 2×2 MIMO antenna and a dedicated metal reflector, ideal for long-distance wireless transmission up to 30km
- Excellent beam directivity, improved latency and noise cancellation
- Innovative snap-lock parts make for fast assembly and a sturdy structural design keeps CPE610 stable even in strong winds
- Durable IP65 weatherproof enclosure along with 15 kV ESD and 6 kV lightning protection ensures all-weather suitability
- TP-Link Pharos MAXtream TDMA technology improves throughput, capacity and latency performance
- Pharos Control gives administrators a free, centralized management system
- Passive PoE supports to allow flexible deployment and convenient installation
Professional-standard 23dBi Directional Antenna for Long-range Wireless Transmission
With 23dBi high-gain directional 2×2 MIMO Cassegrain antenna and dedicated metal reflector, Tplink CPE610 Kenya provides excellent beam directivity, improved latency and noise immunity. Professional performance, coupled with user-friendly design, makes the 5GHz 300Mbps 23dBi Outdoor CPE610 an ideal choice and cost effective solution for outdoor wireless networking transmission up to 30 km*2.

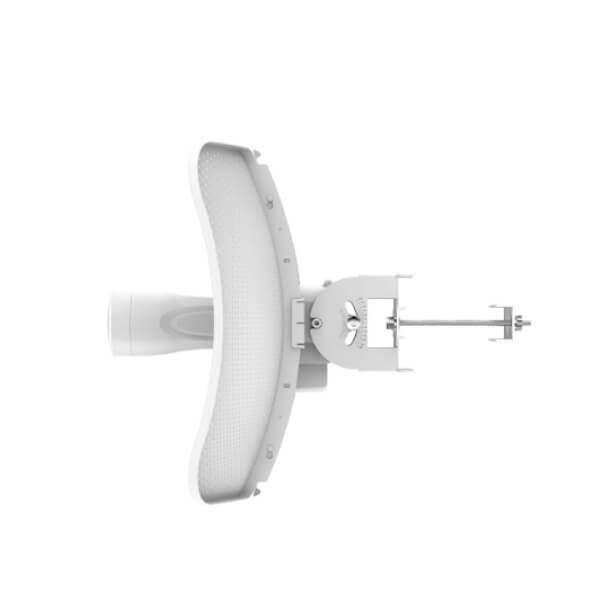

Stable Structural Design and Flexible Installation
Tplink CPE610 Kenya comes with Snap-lock parts making assembly simple and convenient. Included also is pole mount kits and the freedom of three-axis alignment facilitate flexible installation and also, Sturdy design ensures stability in windy conditions
Compact and Lightweight Packaging
Tplink CPE610 Kenya features small and lightweight boxes that benefit shipping, logistics and retail.
Pharos Control – Centralized Management System
Tplink CPE610 Kenya comes equipped with Pharos Control centralized management software, helping users easily manage all devices in their network from a single PC. Functions include device discovery, status monitoring, firmware upgrading, and network maintenance. An intuitive web-based interface– PharOS – provides an alternative management method, and allows professionals to access more detailed configurations.
Specifications
| HARDWARE FEATURES | |
| Processor | Qualcomm 560MHz CPU, MIPS 74Kc |
| Memory | 64MB DDR2 RAM,8MB Flash |
| Interface |
|
| Power Supply |
|
| Power Consumption | 7.41 W Note: When deployed using Passive PoE, the power drawn from the power source will be higher by some amount depending on the length of the connecting cable. |
| Dimensions ( W x D x H ) | 366 x 280 x 207 mm (14.4 x 11.0 x 8.1 in.) |
| Antenna Gain | 23dBi |
| Antenna Beamwidth | 9°(Azimuth), 7°(Elevation) |
| Protection |
|
| Enclosure |
|
| WIRELESS FEATURES | |
| Wireless Standards | IEEE 802.11a/n |
| Proprietary Protocol | TDMA Mode (with Pharos MAXtream enabled) |
| Wireless Speeds |
|
| Frequency | 5.15~5.85GHz Note: Available operating frequency may vary depending on the limitations of the countries or regions in which the device is used. |
| Transmit Power | Max. 25dBm (Adjustable power by 1dBm) |
| SOFTWARE FEATURES | |
| Network Configuration |
|
| Wireless Configurations |
|
| Management |
|
| System Tools |
|
| System-level Optimizations | Optimized IGMP Snooping/Proxy for multicast applications Hardware watch dog |
| POE ADAPTER FEATURES | |
| Dimensions(W x D x H) | 85.8×43.9×29.7 mm |
| Interfaces |
|
| Button | Remote Reset Button |
| Power Status LEDs | Green |
| Input | 100-240VAC, 50/60Hz |
| Output | 24VDC, 0.5A Max +4, 5pins; -7, 8pins. (Support up to 60m Power over Ethernet) |
| Efficiency | >84.29% |
| Certifications | CE/FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark |
| OTHERS | |
| Certification | CE, FCC, IC, RoHS, IP65 |
| Package Contents |
|
| System Requirements | Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 10, Windows 8, Windows 7, MAC OS, NetWare, UNIX or Linux. Note: We recommend you to use one of following Web browsers for an improved user experience: Google Chrome, Safari, and Firefox. IE browsers are not recommended. |
| Environment |
|
