Description

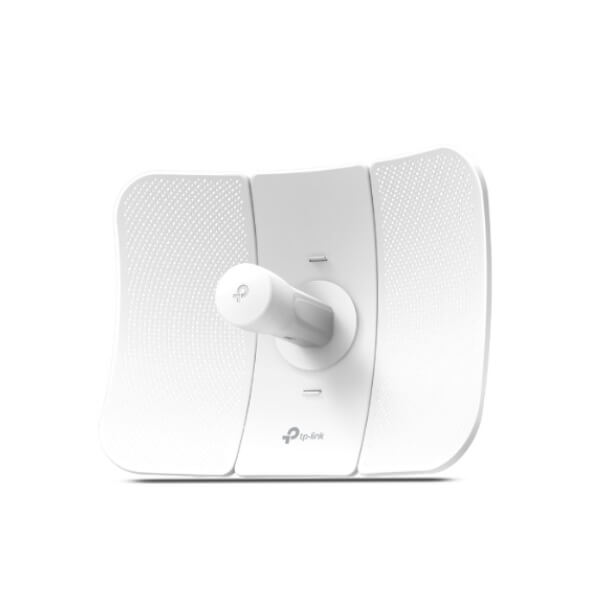

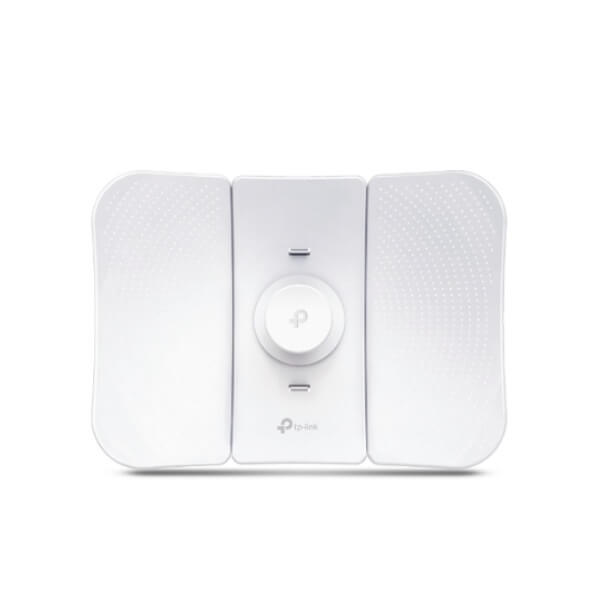

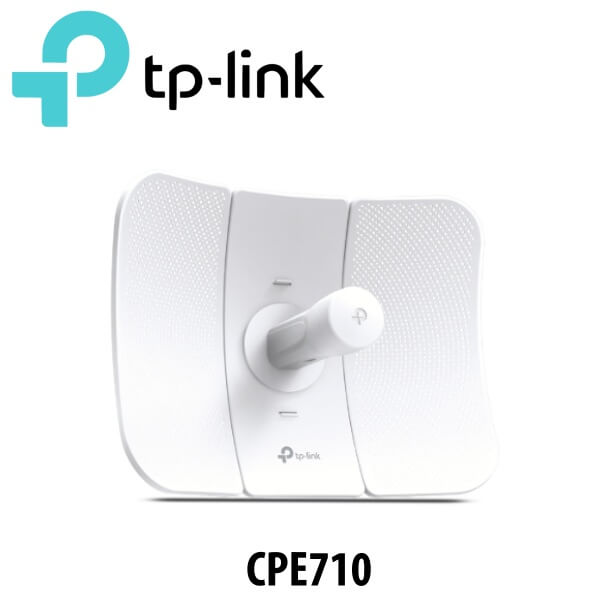

Tplink CPE710 Outdoor Radio Kenya
Tplink CPE710 Kenya Outdoor Radio enhances your business with reliable point-to-point connections between networks over long distances with 5 GHz Wireless-AC867 Outdoor CPE from TP-Link. Featuring a powerful 23 dBi directional antenna with a dedicated metal reflector and 2 x 2 MIMO technology, this 802.11ac outdoor CPE is designed to cut through noise and transfer up to 867 Mb/s over the 5 GHz frequency.
Made primarily from PC stabilized plastic with wind and IP65 weatherproofing, Tplink CPE710 Kenya can operate in temperatures between -40°F and 150°F. It also has 15kV ESD and 6kV lightning protection. The snap-lock design and included three-axis pole-mounting kit make for quick installation. Tplink CPE710 Kenya Outdoor Radio is powered via passive PoE through its Gigabit Ethernet port and includes a convenient PoE adapter. Configure, manage, and monitor your network using the Pharos Control centralized system.
Features
- 11ac for up to 867Mbps on 5GHz wireless data rate
- 23dBi high-gain directional 2×2 MIMO, ideal for long-distance application
- Excellent beam directivity, improved latency and noise cancellation
- Innovative snap-lock parts make for fast assembly and a sturdy structural design keeps CPE710 stable even in strong winds
- Durable IP65 weatherproof enclosure along with 15kV ESD and 6kV lightning protection ensures all-weather suitability
- Pharos Control gives administrators a free, centralized management system
- Passive PoE supports to allow flexible deployment and convenient installation
Professional-Standard 23 dBi Directional Antenna for Long-range Wireless Transmission
With 23 dBi high-gain directional Cassegrain antenna and dedicated metal reflector, Tplink CPE710 Kenya Outdoor Radio provides excellent beam directivity, improved latency, and noise immunity. Professional performance, coupled with user-friendly design, makes the 5 GHz 867 Mbps 23 dBi Outdoor CPE710 an ideal choice and cost-effective solution for outdoor long-distance wireless networking applications.
Stable Structural Design and Flexible Installation
- Snap-lock parts make assembly simple and convenient
- Pole mount kits and the freedom of three-axis alignment facilitate flexible installation
- Sturdy design ensures stability in windy conditions
Pharos Control – Centralized Management System
Tplink CPE710 Kenya Outdoor Radio comes equipped with Pharos Control centralized management software, helping users easily manage all devices in their network from a single PC. Functions include device discovery, status monitoring, firmware upgrading, and network maintenance. An intuitive web-based interface– PharOS – provides an alternative management method and allows professionals to access more detailed configurations.
Compact and Lightweight Packaging
Tplink CPE710 Kenya Outdoor Radio comes in small and lightweight boxes benefit shipping, logistics, and retail.
Specifications
| HARDWARE FEATURES | |
| Processor | Qualcomm 750MHz CPU, MIPS 74Kc |
| Memory | 128 MB DDR2 RAM, 16 MB Flash |
| Interface |
|
| Power Supply |
|
| Dimensions ( W x D x H ) | 14.4 x 11.0 x 8.1 in. (366 x 280 x 207 mm) |
| Antenna Gain | 23 dBi |
| Antenna Beamwidth | 9° (Azimuth)/7° (Elevation) |
| Protection |
|
| Enclosure |
|
| WIRELESS FEATURES | |
| Wireless Standards | IEEE 802.11a/n/ac |
| Wireless Speeds |
|
| Frequency | 5.15–5.85 GHz Note : Available operating frequency may vary depending on the limitations of the countries or regions in which the device is used. |
| Transmit Power | Max. 27 dBm (Adjustable power by 1dBm) |
| SOFTWARE FEATURES | |
| Network Configuration |
|
| Wireless Configurations |
|
| Management |
|
| System Tools |
|
| System-level Optimizations | Optimized IGMP Snooping / Proxy for multicast applications |
| POE ADAPTER FEATURES | |
| Dimensions(W x D x H) | 3.3 x 1.7 x 1.2 in. (85 × 44 × 30 mm) |
| Interfaces |
|
| Button | Remote Reset Button |
| Power Status LEDs | Green |
| Input | 100-240VAC, 50/60Hz |
| Output | 24VDC, 0.5A Max +4, 5pins; -7, 8pins. (Support up to 60m Power over Ethernet) |
| Efficiency | > 84.29% |
| Certifications | CE/FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark |
| OTHERS | |
| Certification | CE, FCC, RoHS, IP65 |
| Package Contents |
|
| Environment |
|
