Description

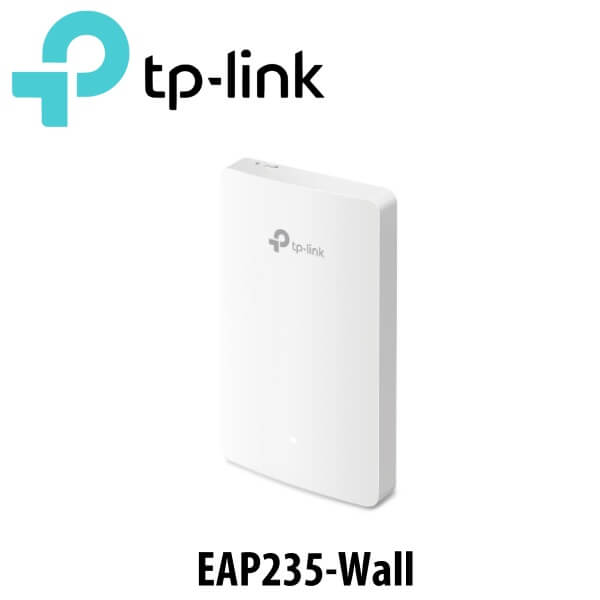

Tplink EAP235-Wall Wi-Fi Access Point Kenya
Tplink EAP235-Wall Kenya features Omada AC1200 PoE-Compliant Wireless Gigabit Wall Plate Access Point. Compatible with 86mm junction boxes with PoE support, this wireless dual-band wall-plate mounting access point measures less than an inch thick to unobtrusively blend in with environments such as offices and hotel rooms. Tplink EAP235-Wall Kenya includes high-powered internal antennas that deliver a manximum data transfer rate of up to 867 Mb/s at 5 GHz and 300 Mb/s at 2.4 GHz to help ensure far reaching and stable wireless coverage. There are three 1000 Mb/s access Ethernet ports and one uplink 802.3af/at PoE port. The uplink port powers the access point while a pass-through port delivers power to IP phones, cameras, intercoms, and more. Your wireless network is protected with enterprise-class security and you can manage it from almost anywhere using the Omada cloud platform.
Features
A Dedicated Private WiFi Network in Each Room
An EAP in each room allows guests to enjoy their own private WiFi network that is fast and delivers a strong corner to corner coverage.
Superior WiFi Speeds and Long-Range Coverage
Tplink EAP235-Wall Kenya provides boosted WiFi speeds up to 1200 Mbps with Beamforming. Experience long-range coverage with advanced wireless technologies like Load Balancing and Band Steering optimizing the whole network to improve performance and efficiency.
Absolute Thinnest Design

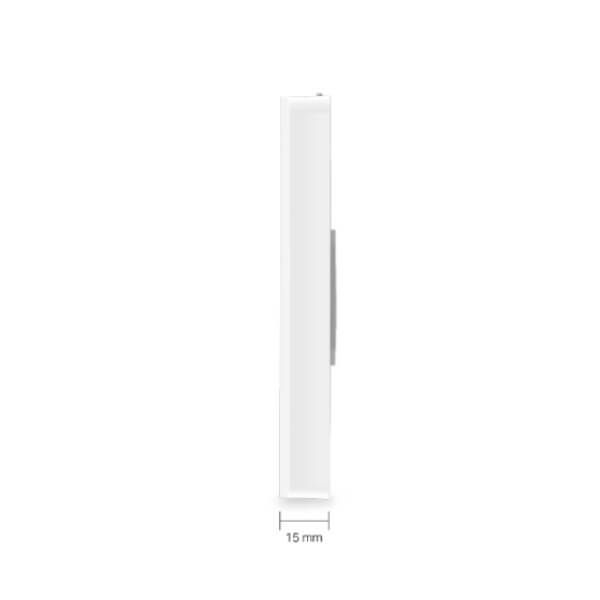

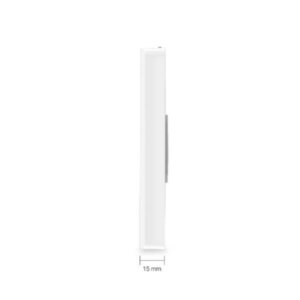

The Tplink EAP235-Wall Kenya is the thinnest wall plate AP available – only 15 mm – featuring a sleek, minimalistic appearance. Designed to blend in with the décor of hotel rooms, hospitals, offices, and school dormitories, EAP235-Wall delivers powerful WiFi without clashing with the room.
Quick, Simplified Installation
Tplink EAP235-Wall Kenya is easy to install. So, there is no need to spend more time and money hiring a professional.
Full Gigabit Ports to Bridge Network
Tplink EAP235-Wall Kenya is equipped with four Gigabit data ports (1x uplink + 3x downlink) and one downlink port with PoE pass-through to connect multiple devices to your gigabit network. Wired devices like VoIP phones can be powered with no need for extra electrical cables.
Effortless Deployment with PoE
With 802.3af/802.3at Power over Ethernet (PoE) supported, there is no need to install additional wiring. Simply plug in the existing Ethernet cables and you’re ready to go.
Omada SDN with Flexible Management and Cloud Access
Omada SDN integrates network devices including gateways, APs & switches w/ multiple control options offered – Hardware controller, Software Controller & Cloud-based Controller*. Centralized cloud allows for remote management of the entire network via a single interface anywhere, anytime.
Specifications
| HARDWARE FEATURES | |
|---|---|
| Interface | Uplink : 1× 10/100/1000 Mbps Ethernet Port Downlink : 3× 10/100/1000 Mbps Ethernet Ports (One port supports PoE OUT. The PoE OUT feature requires 802.3at PoE+ input and the maximum output is 13 W.) |
| Physical Security Lock | Yes |
| Button | Reset |
| Power Supply | 802.3af/802.3at PoE |
| Power Consumption | 9.8 watts /24.4 watts (PoE Out Included) |
| Dimensions | 143 × 86 × 20 mm (5.6 × 3.4 × 0.8 in) |
| Antenna | 2 Dual-Band Antennas
|
| Mounting | Wall Plate Mounting |
| WIRELESS FEATURES | |
| Wireless Standards | IEEE 802.11a/b/g/n/ac |
| Frequency | 2.4 GHz and 5 GHz |
| Signal Rate |
|
| Wireless Functions |
|
| Wireless Security |
|
| Transmission Power | CE :
|
| MANAGEMENT | |
| Omada App | Yes |
| Centralized Management |
|
| Cloud Access | Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller) |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1,v2c |
| System Logging Local/Remote Syslog | Local/Remote Syslog |
| SSH | Yes |
| Web-based Management | HTTP/HTTPS |
| L3 Management | Yes |
| Multi-site Management | Yes |
| Management VLAN | Yes |
| OTHERS | |
| Certification | CE, FCC, RoHS |
| Package Contents |
|
| System Requirements | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10 |
| Environment |
|
