Tplink EAP620 HD Kenya



Tplink EAP620 HD Kenya

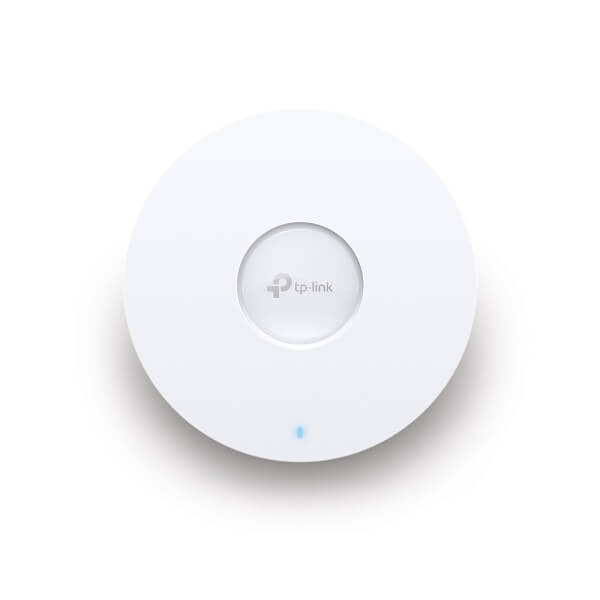

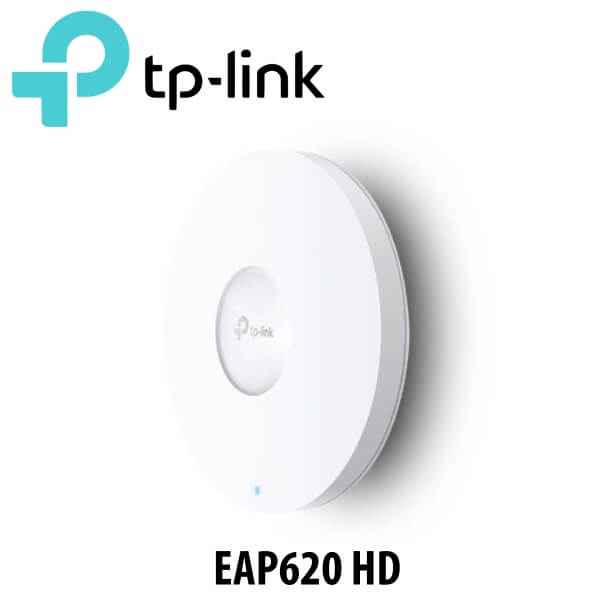

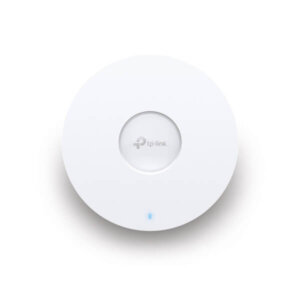

Tplink EAP620 HD Kenya AX1800 Ceiling Mount WiFi 6 Access Point expands your business’s Wi-Fi coverage, cutting through high-density spaces. Designed with an appearance that discreetly blends into most environments when mounted on a wall or ceiling.

Description

Tplink EAP620 HD WiFi 6 Access Point Kenya

Tplink EAP620 HD Kenya AX1800 Ceiling Mount WiFi 6 Access Point expands your business’s Wi-Fi coverage, cutting through high-density spaces. Designed with an appearance that discreetly blends into most environments when mounted on a wall or ceiling using one of the included kits, this dual-band 802.11ax Wi-Fi access point delivers up to 1775 Mb/s wireless speeds over the 2.4 GHz and 5 GHz frequencies. Tplink EAP620 HD Kenya is equipped with 802.11k/v roaming technology, users automatically switch to the access point with the strongest signal as they move, helping to ensure uninterrupted connections. In addition to its included power adapter, the EAP620 HD’s PoE-complaint Gigabit Ethernet port supports 802.3at PoE for flexible installation. Your wireless network is protected with enterprise-class security and you can manage it from almost anywhere using the Omada cloud platform.

Features

  • Ultra-Fast WiFi 6 Speeds :  Simultaneous 574 Mbps on 2.4 GHz and 1201 Mbps on 5 GHz totals 1775 Mbps Wi-Fi speeds.
  • High-Density Connectivity : 4× increased capacity to connect more devices simultaneously.
  • Integrated into Omada SDN : Zero-Touch Provisioning (ZTP)§, Centralized Cloud Management, and Intelligent Monitoring.
  • Centralized Management : Cloud access and Omada app for ultra-convenience and easy management.
  • Ultra-Slim Design : Φ6.3 in. × 1.3 in. elegant design brings more agility.
  • Seamless Roaming : Even video streams and voice calls are unaffected as users move between locations.
  • Omada Mesh : Enables wireless connectivity between access points for extended range and flexible deployment.
  • PoE+ Powered : Supports DC (adapter included), 802.3at PoE+, and Passive PoE for flexible installations.
  • Secure Guest Network : Along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies.

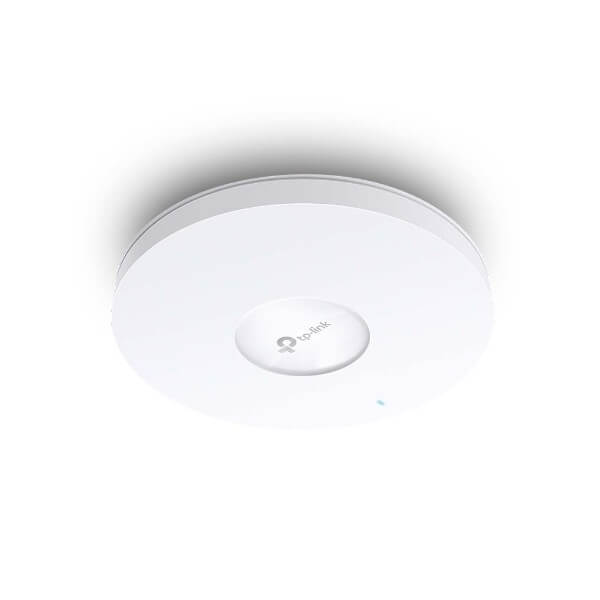

Ceiling and Wall Mountable

The Tplink EAP620 HD Kenya features a design that blends into most environments when mounted on a ceiling or wall using one of the included kits.

Fast, Reliable Wi-Fi

This 802.11ax Wi-Fi access point includes powerful internal antennas that are designed to overcome high-density environments, using beamforming, MU-MIMO, OFDMA, load balance, and band steering technologies to efficiently deliver up to 1775 Mb/s over the 2.4 GHz and 5 GHz wireless frequencies.

Seamless Roaming

Tplink EAP620 HD Kenya has support for 802.11k/v allows users’ connections to automatically switch to access points with the strongest signal, allowing for uninterrupted online experiences while moving.

Powered PoE

The Tplink EAP620 HD Kenya supports 802.3at PoE through its Gigabit Ethernet port for flexible installation. A 12V DC power adapter is included.

Omada Cloud

The cloud-based Omada platform allows you to configure, manage, and monitor all your supported network devices from a single interface, which can be accessed virtually anywhere at any time.

Specifications

HARDWARE FEATURES
Interface 1× Gigabit Ethernet (RJ-45) Port (supports IEEE802.3at PoE and Passive PoE)
Button Reset
Power Supply
  • 802.3at PoE
  • 48 V Passive PoE
  • 12 V / 1.5 A DC
Power Consumption
  • EU : 14.4 W (For PoE); 13.1 W (for DC)
  • US : 14.9 W (For PoE); 13.4 W (for DC)
Dimensions ( W x D x H ) 6.3 × 6.3 × 1.3 in (160 × 160 × 33.6 mm)
Antenna Type Internal Omni Antenna

  • 2.4 GHz : 2× 4 dBi
  • 5 GHz : 2× 5 dBi
Mounting
  • Ceiling /Wall Mounting (Kits included)
  • Junction Box Mounting
WIRELESS FEATURES
Wireless Standards IEEE 802.11ax/ac/n/g/b/a
Frequency 2.4 GHz and 5 GHz
Signal Rate
  • 5 GHz : Up to 1201 Mbps
  • 2.4 GHz : Up to 574 Mbps
Wireless Functions
  • 1024-QAM
  • 4× Longer OFDM Symbol
  • OFDMA
  • Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
  • Enable/Disable Wireless Radio
  • Automatic Channel Assignment
  • Transmit Power Control (Adjust Transmit Power on dBm)
  • QoS(WMM)
  • MU-MIMO
  • Seamless Roamingâ–³
  • Omada Meshâ–³
  • Band Steering
  • Load Balance
  • Airtime Fairness
  • Beamforming
  • Rate Limit
  • Reboot Schedule
  • Wireless Schedule
  • Wireless Statistics based on SSID/AP/Client
Wireless Security
  • Captive Portal Authenticationâ–³
  • Access Control
  • Wireless Mac Address Filtering
  • Wireless Isolation Between Clients
  • SSID to VLAN Mapping
  • Rogue AP Detection
  • 802.1X Support
  • WEP, WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Transmission Power CE :

  • <20 dBm(2.4 GHz, EIRP)
  • <23 dBm(5 GHz band1/2, EIRP) <25 dBm (5 GHz band3)

FCC :

  • <25 dBm (2.4 GHz)
  • <25 dBm (5 GHz)
MANAGEMENT
Omada App Yes
Centralized Management
  • Omada Cloud-Based Controller
  • Omada Hardware Controller (OC300)
  • Omada Hardware Controller (OC200)
  • Omada Software Controller
Cloud Access Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller)
Email Alerts Yes
LED ON/OFF Control Yes
Management MAC Access Control Yes
SNMP v1, v2c, v3
System Logging Local/Remote Syslog Local/Remote Syslog
SSH Yes
Web-based Management HTTP/HTTPS
L3 Management Yes
Multi-site Management Yes
Management VLAN Yes
Zero-Touch Provisioning Yes. Requiring the use of Omada Cloud-Based Controller (Supported by EAP620 HD v2.0 and above)
OTHERS
Certification CE, FCC, RoHS
Package Contents
  • EAP620 HD
  • Power Adapter
  • Ceiling / Wall Mounting Kits
  • Installation Guide
System Requirements Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Linux
Environment
  • Operating Temperature : 0–40 ℃ (32–104 ℉)
  • Storage Temperature : -40–70 ℃ (-40–158 ℉)
  • Operating Humidity : 10–90% RH non-condensing
  • Storage Humidity : 5–90% RH non-condensing
