Tplink EAP653 Kenya



Tplink EAP653 Kenya

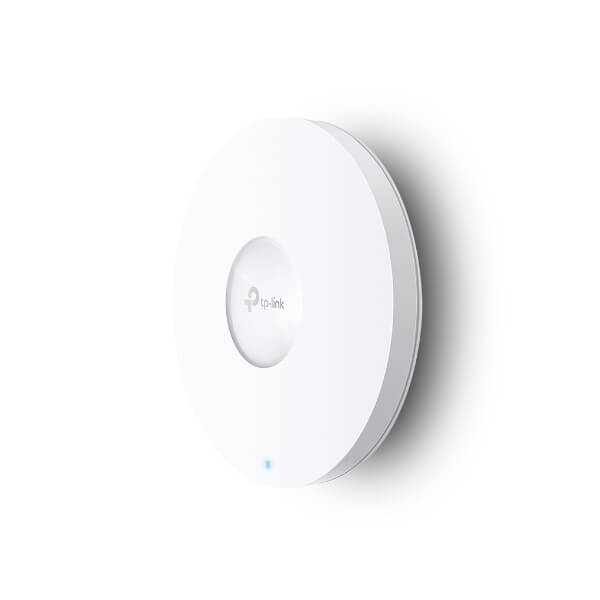

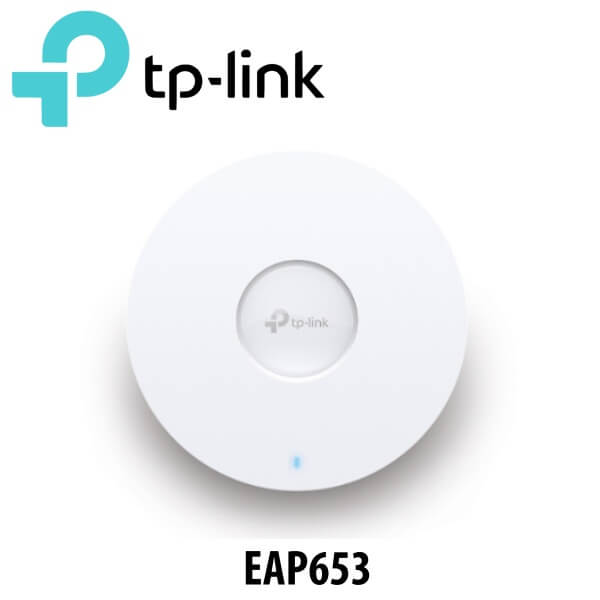

The Tplink EAP653 Kenya WiFi 6 Access Point is a slim line WiFi 6 ceiling mounted access point designed to allow more devices to connect and enjoy faster speeds. Its integration with Tplink’s Omada SDN centralized cloud management mean you can manage your whole network locally

Description

Tplink EAP653 Access Point Kenya

The Tplink EAP653 Kenya WiFi 6 Access Point is a slim line WiFi 6 ceiling mounted access point designed to allow more devices to connect and enjoy faster speeds. Its integration with Tplink’s Omada SDN centralized cloud management mean you can manage your whole network locally or from the cloud. Tplink EAP653 Kenya Access Point with ultra-fast WiFi 6 speeds, offering simultaneous 574 Mbps on 2.4 GHz and 2402 Mbps on 5 GHz, with a total of up to 2976 Mbps WiFi speeds. WiFi 6 also allows more devices to connect to your network with faster speeds.

The Tplink EAP653 Kenya offers flexible power options with support for both 802.3at PoE+ and DC power supply (sold separately) for flexible installations. With its ultra-slim design and small install footprint of only 160 mm × 33.6 mm – the EAP653 gives you discrete installation around your home. Tplink EAP653 Kenya is fully integrated with Omada SDN, which manages the whole network locally or from the cloud via web UI or Omada app. Seamless roaming also gives users video streams and voice calls, which are unaffected by multiple users moving between locations.

Features

  • Ultra-Fast WiFi 6 Speeds :  Simultaneous 574 Mbps on 2.4 GHz and 2402 Mbps on 5 GHz totals 2976 Mbps WiFi speeds.
  • High-Efficiency WiFi 6 : More connected devices can enjoy faster speeds.
  • Centralized Cloud Management : Omada SDN integration manages the whole network locally or from the cloud via web UI or Omada app.
  • 160 MHz Channel : Double the data at peak transmission times on a single stream with HE160.
  • Seamless Roaming : Video streams and voice calls are unaffected as users move between locations.
  • Omada Mesh :  Enables wireless connectivity between access points for extended range and flexible deployment.
  • PoE+ Powered : Supports both 802.3at PoE+ and DC (DC adapter sold separately) power supply for flexible installations.
  • Ultra-Slim Design : 160 mm × 33.6 mm elegant design brings more agility.

Seamless Integration into Omada SDN

The Omada Software Defined Networking (SDN) platform integrates network devices, including access points, switches, and routers. It provides 100% centralized cloud management and creates a highly scalable network controlled from a single interface.

Auto Channel Selection and Power Adjustment

Tplink EAP653 Kenya provides powerful wireless performance while significantly reducing WiFi interference by automatically adjusting the channel settings and transmission power levels of neighboring APs in the same network.

Easy Pairing, Less Wiring

With Mesh technology, Omada EAPs save you from extra wires by wirelessly extending your WiFi signal further and more flexibly to hard-to-wire areas.

Optimized Network Performance

Intelligent self-organization optimizes the best path between EAPs while self-healing ensures you stay online even when one AP is disrupted.

Ultra-Slim Design Brings More Agility

Tplink EAP653 Kenya offers exceptional performance with compact design ensures simple WiFi installation while saving space. The elegant appearance makes EAP653 perfectly blend into any modern office, hotel, classroom, or café

Specifications

HARDWARE FEATURES

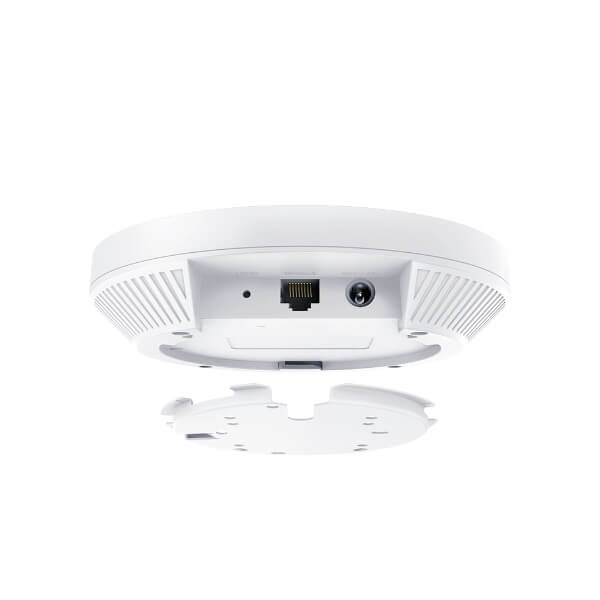

Interface 1× Gigabit Ethernet (RJ-45) Port (supports IEEE802.3at PoE)
Button Reset
Power Supply
  • 802.3at PoE
  • 12V DC

(EU Version : 12 V / 1.0 A DC. US Version : 12 V / 1.5 A DC).
Note : DC adapter is not included in the package, and is sold separately.

Power Consumption
  • EU : 13.5 W
  • US : 14.7 W
Dimensions ( W x D x H ) 6.3 × 6.3 × 1.3 in (160 × 160 × 33.6 mm)
Antenna Type Internal Omni

  • 2.4 GHz : 2× 4 dBi
  • 5 GHz : 2× 5 dBi
Mounting
  • Ceiling /Wall Mounting (Kits included)
  • Junction Box Mounting
WIRELESS FEATURES
Wireless Standards IEEE 802.11ax/ac/n/g/b/a
Frequency 2.4 GHz and 5 GHz
Signal Rate
  • 5 GHz : Up to 2402 Mbps†
  • 2.4 GHz : Up to 574 Mbps†
Wireless Functions
  • 1024-QAM
  • 4× Longer OFDM Symbol
  • OFDMA
  • Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
  • Enable/Disable Wireless Radio
  • Automatic Channel Assignment
  • Transmit Power Control (Adjust Transmit Power on dBm)
  • QoS(WMM)
  • MU-MIMO
  • HE160 (160 MHz Bandwidth)‡
  • Seamless Roaming §
  • Omada Mesh§
  • Band Steering
  • Load Balance
  • Airtime Fairness
  • Beamforming
  • Rate Limit
  • Reboot Schedule
  • Wireless Schedule
  • Wireless Statistics based on SSID/AP/Client
Wireless Security
  • Captive Portal Authentication§
  • Access Control
  • Wireless Mac Address Filtering
  • Wireless Isolation Between Clients
  • SSID to VLAN Mapping
  • Rogue AP Detection
  • 802.1X Support
  • WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Transmission Power CE :

  • <20 dBm(2.4 GHz, EIRP)
  • <23 dBm(5 GHz, Band1 & Band2, EIRP)
  • <27 dBm(5 GHz, Band3, EIRP)

FCC :

  • <22 dBm (2.4 GHz)
  • <22 dBm (5 GHz)
MANAGEMENT
Omada App Yes
Centralized Management
  • Omada Hardware Controller (OC300)
  • Omada Hardware Controller (OC200)
  • Omada Software Controller
  • Omada Cloud-Based Controller
Cloud Access Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
Email Alerts Yes
LED ON/OFF Control Yes
Management MAC Access Control Yes
SNMP v1, v2c, v3
System Logging Local/Remote Syslog Local/Remote Syslog
SSH Yes
Web-based Management HTTP/HTTPS
L3 Management Yes
Multi-site Management Yes
Management VLAN Yes
Zero-Touch Provisioning Yes. Requiring the use of Omada Cloud-Based Controller.
OTHERS
Certification CE, FCC, RoHS
Package Contents
  • EAP653
  • Ceiling/Wall Mounting Kits
  • Installation Guide

Note : DC adapter is not included in the package, and is sold separately

System Requirements Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows 11, Linux
Environment
  • Operating Temperature : 0–40 ℃ (32–104 ℉)
  • Storage Temperature : -40–70 ℃ (-40–158 ℉)
  • Operating Humidity : 10–90% RH non-condensing
  • Storage Humidity : 5–90% RH non-condensing
