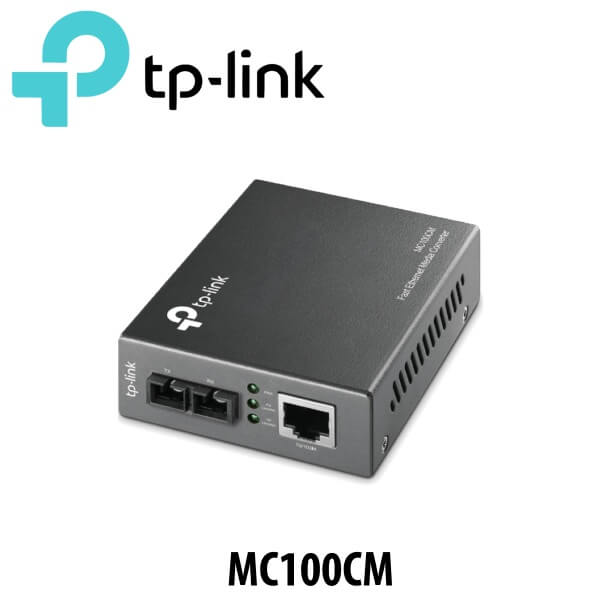

Tplink MC100CM Fast Ethernet Media Converter Kenya
The Tplink MC100CM Kenya is Fast Ethernet Media Converter designed to convert 100BASE-FX fiber to 100Base-TX copper media or vice versa. Designed under IEEE 802.3u 10/100Base-TX and 100Base-FX standards, the MC100CM is designed for use with multi-mode fiber cable utilizing the SC-Type connector. The Tplink MC100CM Kenya supports longwave (LX) laser specification at a full wire speed forwarding rate. It works at 850nm on both transmitting and receiving data.
Other features of this module include the ability to be used as a stand-alone device (no chassis required) or with TP-LINK´s 19´´system chassis, Auto MDI/MDI-X for TX port, Auto negotiation of duplex mode on TX port, supports both 5VDC and 9VDC external power supply and front panel status LEDs. Tplink MC100CM Kenya will transmit at extended fiber optic distances utilizing multi-mode fiber up to 2 kilometers (1.2 miles).
Features
- Complies with 802.3u 10/100Base-TX, 100Base-FX standards
- Auto-negotiation of Half-Duplex / Full-Duplex transfer mode
- Ranges up to 2km (1.2 miles) transmission distance with multi-mode fiber
Specifications
| MEDIA CONVERTER & MODULE | |
| Standards and Protocols | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| Basic Function |
|
| Ports |
|
| Wave Length | 1310nm |
| Network Media 10BASE-T |
|
| Network Media 100BASE-T |
|
| Network Media 100BASE-FX | Multi-mode Fiber |
| LED Indicators | PWR, Link/Act |
| Dimensions (W*D*H) | 3.7 × 2.9 × 1.1 in. (95 × 73 × 27 mm) |
| Power Supply | External power supply |
| Max Power Consumption | 2.4W |
| Safety & Emission | FCC, CE, RoHS |
| Package Contents |
|
| Environment |
|
