Description

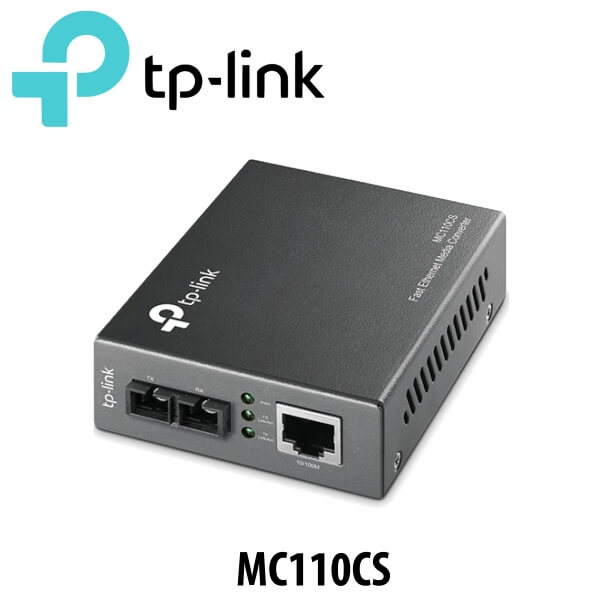

Tplink MC110CS Media Converter Kenya
The Tplink MC110CS Kenya features 10/100Mbps Single-Mode Media Converter designed to convert 100BASE-FX fiber to 100Base-TX copper media or vice versa. Designed under IEEE 802.3u 10/100Base-TX and 100Base-FX standards, the MC110CS is built for use with single-mode fiber cable utilizing the SC-Type connector. The Tplink MC110CS Kenya supports longwave (LX) laser specification at a full wire speed forwarding rate. It works at 1310nm on both transmitting and receiving data.
Other features of this module include the ability to be used as a stand-alone device (no chassis required) or with TP-LINK´s 19´´ system chassis, Auto MDI/MDI-X for TX port, Auto negotiation of duplex mode on TX port and front panel status LEDs. The Tplink MC110CS Kenya will transmit at extended fiber optic distances utilizing single-mode fiber up to 20 kilometers.
Features
- Designed to convert 100BASE-FX fiber to 100Base-TX copper media or vice versa.
- Works at 100Mbps in Full-Duplex mode for both TX port and FX port
- Supports auto MDI/MDIX for TX port and provides switch configuration of Force/Auto transfer mode for FX port
- Extends fiber distance up to 12.5 mile (20km)
- Easy-to-view LED indicators provide status to monitor network activity easily
- External power supply. Wave Length : 1310nm. Max Power Consumption : 2.4W
Specifications
| MEDIA CONVERTER & MODULE | |
| Standards and Protocols | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| Basic Function |
|
| Ports |
|
| Wave Length | 1310nm |
| Network Media 10BASE-T |
|
| Network Media 100BASE-T |
|
| Network Media 100BASE-FX | Single-mode Fiber |
| LED Indicators | PWR, Link/Act |
| Dimensions (W*D*H) | 3.7 × 2.9 × 1.1 in. (95 × 73 × 27 mm) |
| Power Supply | External power supply |
| Max Power Consumption | 2.4W |
| Safety & Emission | FCC, CE, RoHS |
| Package Contents |
|
| Environment |
|
