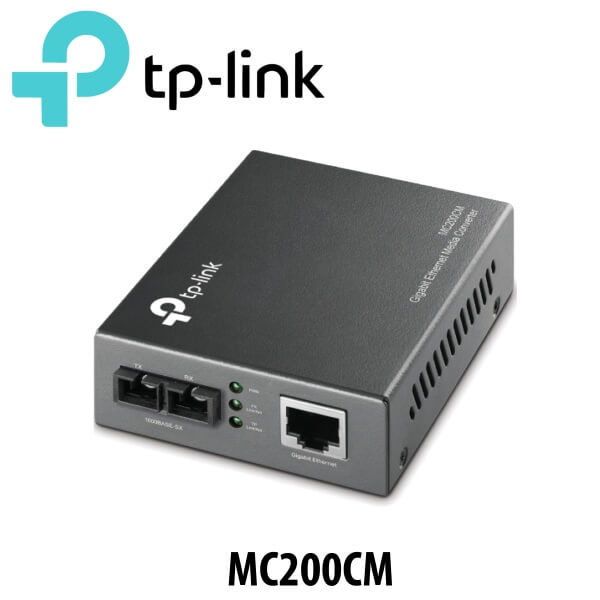

Tplink MC200CM Media Converter Kenya
The Tplink MC200CM Kenya is a media converter designed to convert 1000BASE-SX fiber to 1000Base-T copper media or vice versa. Designed under IEEE802.3ab 1000Base-T and IEEE802.3z 1000Base-SX standards, the MC200CM is designed for use with multi-mode fiber cable utilizing the SC-Type connector. The Tplink MC200CM Kenya supports shortwave (SX) laser specification at a full wire speed forwarding rate. It works at 850nm on both transmitting and receiving data. Other features of this module include the ability to be used as a stand-alone device (no chassis required) or with TP-LINK´s 19´system chassis, Auto MDI/MDI-X for TX port, and front panel status LEDs. The MC200CM will transmit at extended fiber optic distances utilizing multi-mode fiber up to 0.55 kilometers.
Features
- Complies with IEEE 802.3ab and IEEE 802.3z
- Provides switch configuration of Force /Auto transfer mode for FX port
- Extends fiber distance up to 0.55km
Specifications
| MEDIA CONVERTER & MODULE | |
| Standards and Protocols | IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x |
| Basic Function |
|
| Ports |
|
| Wave Length | 850nm |
| Network Media 1000BASE-FX | Multi-mode Fiber |
| Network Media 1000BASE-SX | Multi-mode Fiber |
| Network Media 1000BASE-T |
|
| LED Indicators | PWR, LINK, RX |
| Dimensions (W*D*H) | 3.7*2.9*1.1 in. (94.5*73.0*27.0 mm) |
| Power Supply | External Power Adapter |
| Max Power Consumption | 5.5W |
| Safety & Emission | FCC, CE, RoHS |
| Package Contents |
|
| Environment |
|
