Description

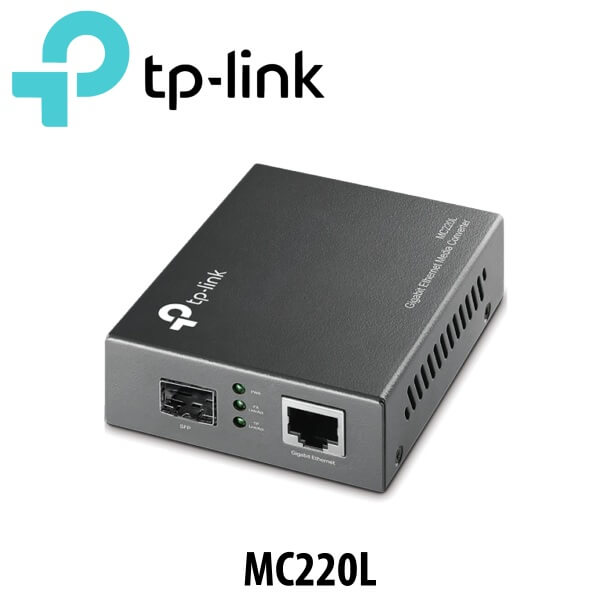

Tplink MC220L Media Converter Kenya

The Tplink MC220L Kenya is a media converter designed to convert 1000BASE-SX/LX fiber to 10/100/1000Base-T copper media or vice versa. Designed under IEEE802.3ab 1000Base-T standards, the MC220L communicates with any TP-Link standard gigabit SFP fiber module. Tplink MC220L is designed for use with multi-mode/single-mode fiber cable utilizing the SC-Type connector. The Tplink MC220L Kenya  supports shortwave (SX) laser specification at a full wire speed forwarding rate. It works at 850nm on both transmitting and receiving data when adopting multi-mode fiber and 1310nm on both transmitting and receiving data when adopting single-mode.

Tplink MC220L Kenya module also include the ability to be used as a stand-alone device (no chassis required) or with TP-LINK’s 19’system chassis, Auto MDI/MDI-X for TX port, and front panel status LEDs. The MC220L will transmit at extended fiber optic distances utilizing multi-mode fiber up to 0.55 kilometers and 10 kilometers when utilizing single-mode fiber.

Features

Flexible Mounting Options

Tplink MC220L Kenya has compact and convenient design,  that can fit easily fit into a wall-mounting installation or be inserted into a central chassis to save space.

Auto-Negotiation Gigabit Connection

Fully compatible with 10/100/1000 Base-T ethernet connections, Tplink MC220L Kenya supports auto-negotiation that bridges different speed and duplex modes to a gigabit fiber networks.

Free Speed Loss

The Tplink MC220L offers stability of gigabit fiber transmission ensures stable transmission without any loss of speed.

Easy-to-view LED indicators

Easy-to-view front panel status LEDs provide real-time information to monitor network status.

Specifications
