Description

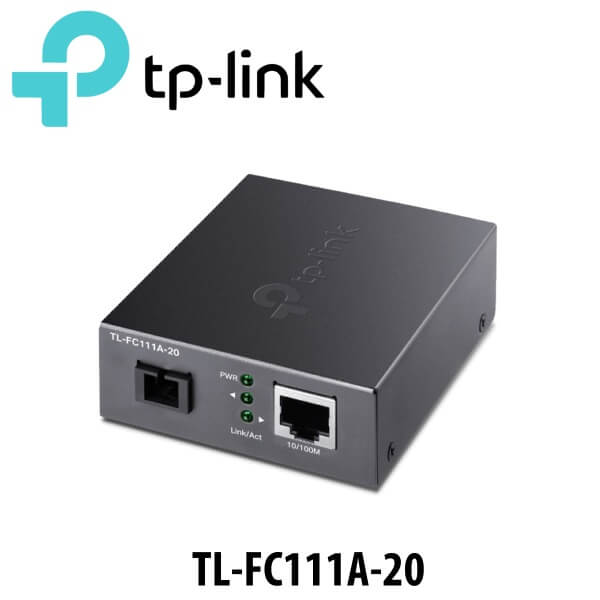

Tplink TL-FC111A20 Media Converter Kenya
Tplink TL-FC111A20 Kenya is a 100M media converter, providing a 100M RJ-45 port and a 100M SC fiber port, which can convert between electrical and optical signals. And long-distance data transmission through optical fiber can be applied to commercial scenarios such as park security monitoring and wireless networking.
Tplink TL-FC111A20 Kenya adopts WDM (wavelength division multiplexing) technology, helping send and receive data at a distance of up to 20 km with only a single mode fiber, which saves half of the cable deployment cost for customers. Tplink TL-FC111A20 Kenya transmits data at 1550nm wavelength and receives data at 1310nm wavelength on optical fiber. Therefore, the terminal device used in conjunction with the TL-FC111A20 should send data at a wavelength of 1310nm and receive data at a wavelength of 1550nm. TP-Link another media converter TL-FC111B-20 is one of the products that can cooperate with TL-FC111A20.
Besides, this media converter can be used as a standalone device (no rack required) or used with TP-Link’s TL-FC1420 rack for auto MDI/MDI-X in TX port in which duplex mode is automatically negotiated.
 Features
- IEEE 802.3, IEEE 802.3i, and IEEE 802.3u standards
- Works with TL-FC111B-20 as a pair
- Bidirectional WDM communication on a single fiber
- Auto-negotiation of half- and full-duplex transfer modes
- LED indicators
- FCC, CE, and RoHS certified
Specifications
| General | |
| Compatibility | TP-Link TL-FC111B-20 |
| Power | |
| Power Source | AC Input (Included) |
| DC Input Power | 5 VDC at 0.6 A |
| Environmental | |
| Certifications | CE, FCC, RoHS |
| Operating Temperature | 32 to 122°F / 0 to 50°C |
| Operating Humidity | 10 to 90% (Non-Condensing) |
| Storage Temperature | -40 to 158°F / -40 to 70°C |
| Storage Humidity | 5 to 90% (Non-Condensing) |
| Physical | |
| Cable Length | Not Specified by Manufacturer |
| Dimensions | 3.7 x 2.9 x 1.1″ / 95 x 73 x 27Â mm |
| Weight | Not Specified by Manufacturer |
| Packaging Info | |
| Package Weight | 0.76 lb |
| Box Dimensions (LxWxH) | 8.1 x 6.5 x 2.6″ |
