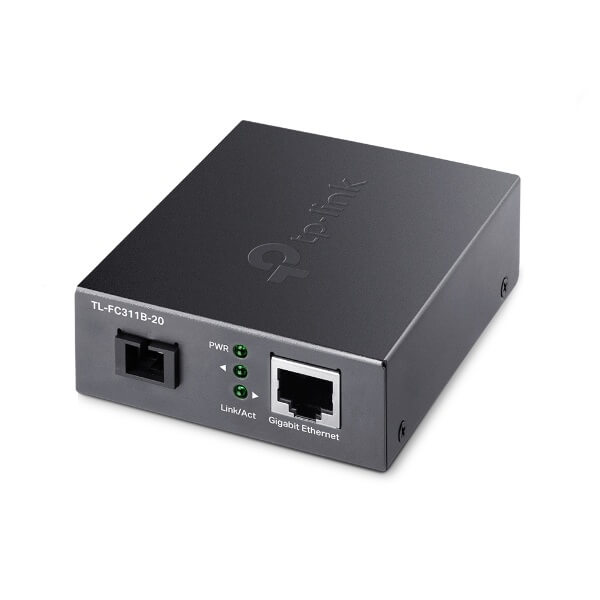

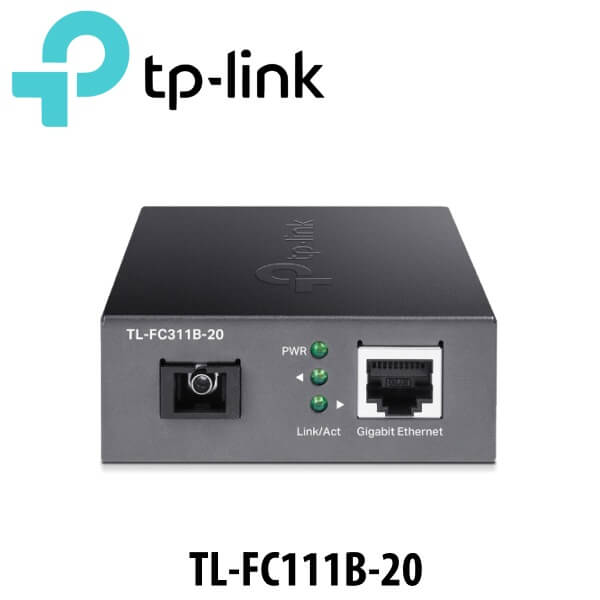

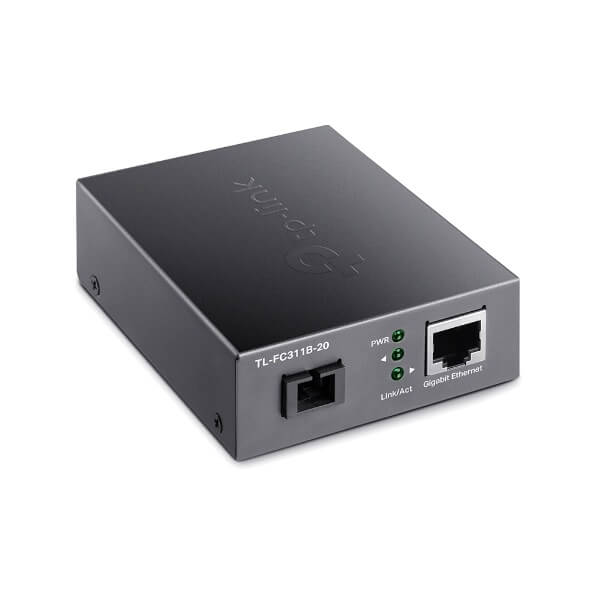

Tplink TL-FC111B20 Media Converter Kenya
Tplink TL-FC111B20 Kenya is a 100M media converter, providing a 100M RJ-45 port and a 100M SC fiber port, which can convert between electrical and optical signals. And long-distance data transmission through optical fiber can be applied to commercial scenarios such as park security monitoring and wireless networking.
Tplink TL-FC111B20 Kenya adopts WDM (wavelength division multiplexing) technology, helping send and receive data at a distance of up to 20 km with only a single mode fiber, which saves half of the cable deployment cost for customers. TL-FC111B20 transmits data at 1310nm wavelength and receives data at 1550nm wavelength on optical fiber. Therefore, the terminal device used in conjunction with the Tplink TL-FC111B20 Kenya should send data at a wavelength of 1550nm and receive data at a wavelength of 1310nm. TP-Link another media converter TL-FC111A-20 is one of the products that can cooperate with TL-FC111B20.
Tplink TL-FC111B20 media converter can be used as a standalone device (no rack required) or used with TP-Link’s TL-FC1420 rack for auto MDI/MDI-X in TX port in which duplex mode is automatically negotiated.
Features
- IEEE 802.3, IEEE 802.3i, and IEEE 802.3u standards
- Works with TL-FC111A-20 as a pair
- Bidirectional WDM communication on a single fiber
- Auto-negotiation of half- and full-duplex transfer modes
- LED indicators
- FCC, CE, and RoHS certified
Specifications
| NETWORK | |
| Standards and Protocols | IEEE802.3, IEEE802.3i, IEEE802.3u |
| ENVIRONMENT | |
| Operating Temperature | 0ËšC to 50ËšC (32ËšF to 122ËšF) |
| Storage Temperature | -40ËšC to 70ËšC (-40ËšF to 158ËšF) |
| Operating Humidity | 10% to 90% RH non-condensing |
| Storage Humidity | 5% to 90% RH non-condensing |
| HARDWARE FEATURES | |
| Network Media | 100BASE-Tx: 2-pair UTP/STP of Cat. 5 or above (≤100 m) |
| Power Supply | External Power Adapter: 5 V/0.6 A |
| LED | PWR, Link/Act |
| Dimensions ( W x D x H ) | 94.5*73*27 mm |
| Wave Length | 1310 nm TX, 1550 nm RX |
| ANTENNA | |
| Connector Type | 1 SC fiber optic, 1 RJ45 jack |
| MEDIA CONVERTER & MODULE | |
| Fiber Type | 9/125 μm single-mode fber (≤20 km) |
