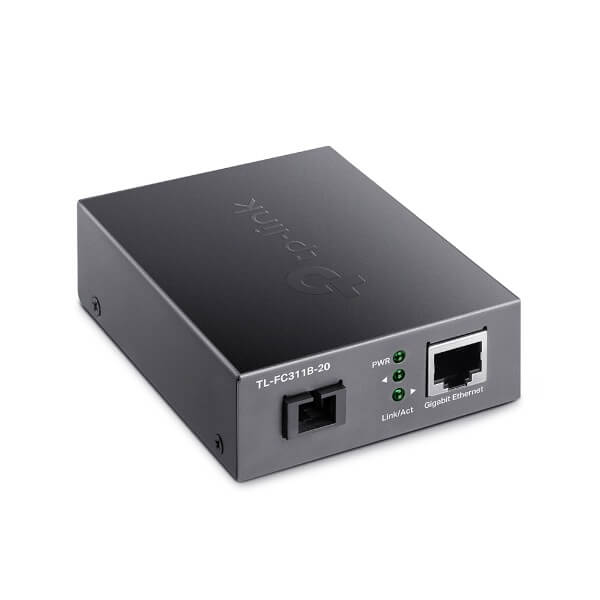

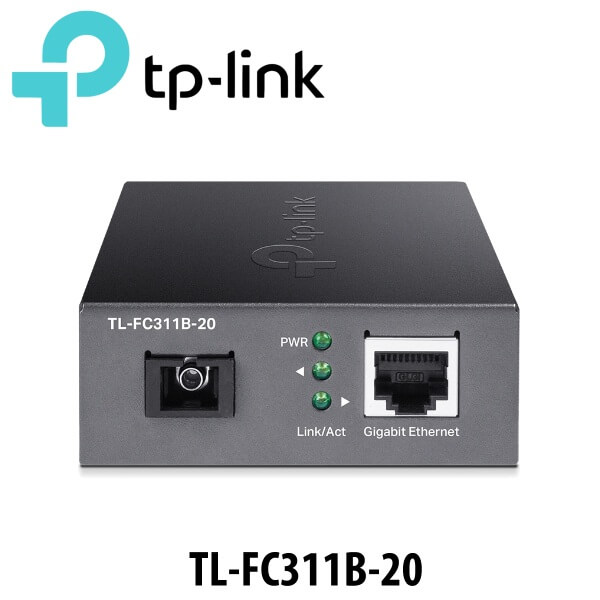

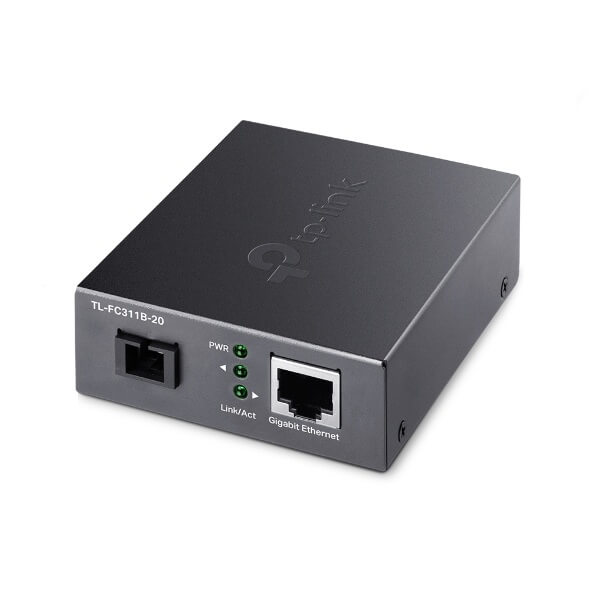

Tplink TL-FC311B20 Gigabit Media Converter Kenya
Tplink TL-FC311B20 Kenya is a gigabit media converter, providing a gigabit RJ-45 port and a gigabit SC fiber port, which can convert between electrical and optical signals. And long-distance data transmission through optical fiber can be applied to commercial scenarios such as park security monitoring and wireless networking.
Tplink TL-FC311B20 Kenya adopts WDM (wavelength division multiplexing) technology, helping send and receive data at a distance of up to 2 km with only a single mode fiber, which saves half of the cable deployment cost for customers. Tplink TL-FC311B20 Kenya transmits data at 1310 nm wavelength and receives data at 1550 nm wavelength on optical fiber. Therefore, the terminal device used in conjunction with the TL-FC311B20 should send data at a wavelength of 1550 nm and receive data at a wavelength of 1310 nm. TP-Link another media converter TL-FC311A-20 is one of the products that can cooperate with TL-FC311B20
Features
- 1× 10/100/1000Mbps Auto-Negotiation RJ45 port supports Auto-MDI/MDIX
- Auto-negotiation of Half-Duplex/Full-Duplex transfer mode
- Adopts WDM technology, transmitting and receiving data on one single fiber
- Extends fiber distance up to 20 km
Other Features
Besides, this media converter can be used as a standalone device (no rack required) or used with TP-Link’s TL-FC1420 rack for auto MDI/MDI-X in TX port in which duplex mode is automatically negotiated.
Specifications
| NETWORK | |
| Standards and Protocols | IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3z |
| ENVIRONMENT | |
| Operating Temperature | 0ËšC to 50ËšC (32ËšF to 122ËšF) |
| Storage Temperature | -40ËšC to 70ËšC (-40ËšF to 158ËšF) |
| Operating Humidity | 10% to 90% RH non-condensing |
| Storage Humidity | 5% to 90% RH non-condensing |
| HARDWARE FEATURES | |
| Interface |
|
| Network Media |
|
| Power Supply | External Power Adapter : 5 V/0.6 A |
| LED | PWR, Link/Act |
| Dimensions ( W x D x H ) | 3.7 × 2.9 × 1.1 in (95 × 73 × 27 mm) |
| Wave Length |
|
| MEDIA CONVERTER & MODULE | |
| Fiber Type | 9/125 μm single-mode fiber |
| OTHERS | |
| Package Contents |
|
