Tplink TL-R470TPlus Kenya



Tplink TL-R470TPlus Kenya

The Tplink TL-R470TPlus Kenya is a load balance broadband router providing a wise choice for small business. It brings you a high return on investment with low overhead. Featuring three changeable WAN/LAN ports, TL-R470T+ supports up to 4 WAN ports

Description

Tplink TL-R470TPlusĀ Router Kenya

The Tplink TL-R470TPlus Kenya is a load balance broadband router providing a wise choice for small business. It brings you a high return on investment with low overhead. Featuring three changeable WAN/LAN ports, TL-R470TPlus supports up to 4 WAN ports, which can satisfy various Internet access requirements through one device. Tplink TL-R470TPlus Kenya integrates multiple load balancing strategies, advanced QoS and strong firewall to provide you with consistent network uptime and reliable Ethernet connectivity. Moreover, it is easy to manage the TL-R470TPlus via a web browser, which makes building and managing your network more convenient.

Features

  • Up to 4 WAN 10/100 ports for multiple Internet connections. Load balancing by bandwidth distribution, by type of application, or simply failover when the main connection is disturbed1
  • Web interface portal authentication evaluate and authenticate all the accesses to the Internet for better access and bandwidthĀ management
  • Marshals bandwidth resource to specific clients based on their unique application environments

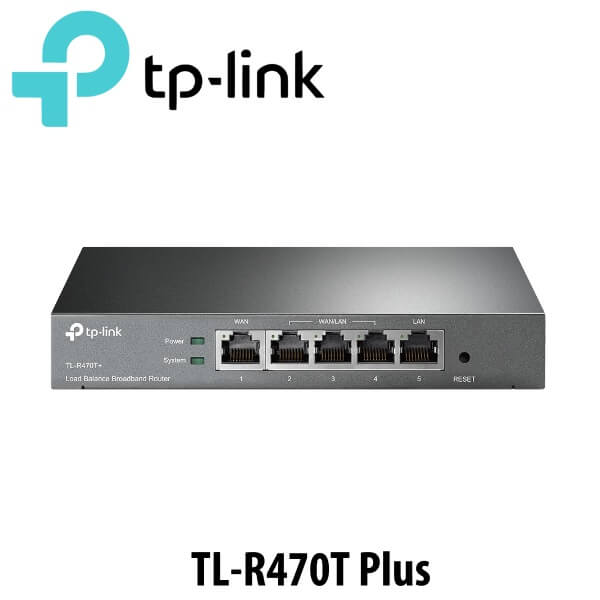

Three Changeable WAN/LAN Ports

The Tplink TL-R470TPlus Kenya features three changeable ports that can be set to either LAN or WAN, allowing the router to support up to four WAN ports to satisfy various Internet access requirements through one device. The router also has an integrated smart load balancing function which automatically selects the most efficient line according to load and bandwidth requirements, providing users with consistent network uptime and reliable Ethernet connectivity.

Abundant Security Features

For defense against external threats, Tplink TL-R470TPlus Kenya can automatically detect and block Denial of services (DoS) attacks such as TCP/UDP/ICMP Flooding, Ping of Death and other related threats. Moreover, this router provides IP/MAC/URL/WEB Ā­filtering functions, which forcefully prevent attacks from intruders and viruses. For applications such as FTP, H.323, SIP, IPsec, and PPTP which are not well compatible with NAT, TL-R470TPlus offers administrators one-click enable of ALG choices corresponding to the above five applications.

Efficient Access Management

Web portal authentication inspects and allows all connecting sessions whether from wireĀ or wireless. When the access control works together withĀ IP-based bandwidth control, you can configure the dedicatedĀ bandwidth for certain account.

Safety Minded Enterprise Investments

Professional lightning protection technology2Ā is designed to prevent electrical surges from penetrating the interior of the device, to be discharged harmlessly into the Earth. Tplink TL-R470TPlus Kenya router is designed to prevent lightning damage of up to 4KV in the well-grounded connection conditions. This feature ensures that networking infrastructure investments remain as safe as possible from one of Mother Natureā€™s more violent elements.

Specifications

HARDWARE FEATURES
Standards and Protocols IEEE 802.3, 802.3u, 802.3x, TCP/IP, DHCP, ICMP, NAT, PPPoE, SNTP, HTTP, DDNS
Interface
  • 1 Fixed 10/100 Ethernet WAN Port
  • 1 Fixed 10/100 Ethernet LAN Port
  • 3 Changeable 10/100 Ethernet WAN/LAN Ports
Network Media
  • 10BASE-T : UTP category 3, 4, 5 cable (Max 100m)
  • 100BASE-TX : UTP category 5, 5e cable (Max 100m)
Button Reset Button

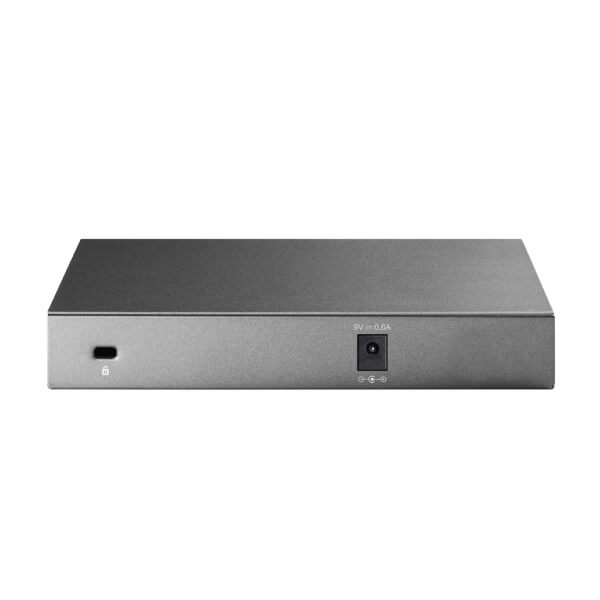

Power Supply External 9V/0.6A DC Adapter
Flash 16MB
DRAM 128MB
LED PWR, SYS, WAN, LAN, WAN/LAN
Dimensions ( W x D x H ) 6.2 Ɨ 4.0 Ɨ 1.0 in.
(158 Ɨ 101 Ɨ 25mm)
PERFORMANCE
Concurrent Session 10K
BASIC FUNCTIONS
WAN Connection Type Static/Dynamic IP, PPPoE, PPTP, L2TP, Dual Access, Bigpond Cable
MAC Clone Modify WAN/LAN MAC Address
DHCP DHCP Server/Client, DHCP Address Reservation
Switch Setting Rate Control, Port Configuration, Port VLAN
ADVANCED FUNCTIONS
ACL IP/MAC/URL/WEB Filtering
IGMP IGMP Proxy/IGMP Snooping
Forwarding Virtual Server, Port Triggering, DMZ
Load Balance Policy Routing, Link Backup
Routing Static Routing
Security FTP/SIP/PPTP/IPsec/H.323 ALG, DoS Defence, Ping of Death, IP/MAC Binding
Traffic Control Bandwidth Control, Session Limit
MANAGEMENT
Service Dynamic DNS, UPnP
Maintenance
  • System Time Setting
  • Daylight Saving Time
  • SNMP
  • Diagnostics
  • Firmware Upgrade
  • Factory Defaults/Reboot
  • Backup/Restore
  • System Log
  • Remote Management
  • System Statistics
OTHERS
Certification CE, FCC, RoHS
Package Contents
  • TL-R470TPlus
  • Power Adapter
  • RJ-45 Ethernet Cable
  • Quick Installation Guide
Environment
  • Operating Temperature : 0ā„ƒ~40ā„ƒ (32ā„‰~104ā„‰)
  • Storage Temperature : -40ā„ƒ~70ā„ƒ (-40ā„‰~158ā„‰)
  • Operating Humidity : 10%~90% non-condensing
  • Storage Humidity : 5%~90% non-condensing
